Baugruppe

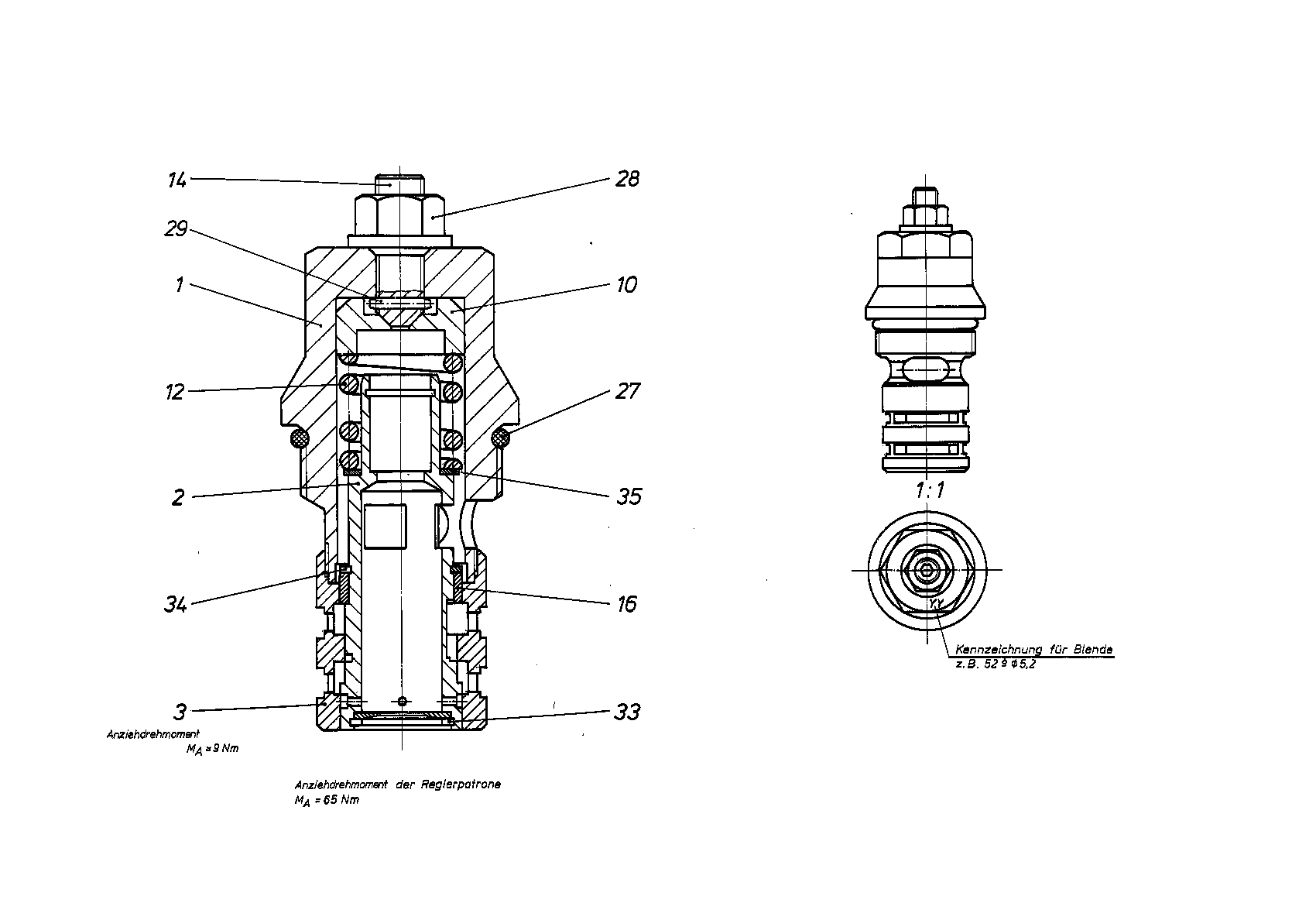

CONTROL CARTRIDGER902000533
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909430423 | CONTROL SCREW | 1 | |
| 2 | R902037075 | DIFFERENTIAL PISTON | 1 | |
| 3 | R909922149 | CONTROLLER PIPE | 1 | |
| R909436562 | THRUST MEMBER | 1 | ||
| 12 | R909412447 | COMPRESSION SPRING | 1 | |
| 14 | R909436564 | SETSCREW | 1 | |
| R909650154 | RING | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R900017297 | SLOTTED SPRING PIN | 1 | ||
| R909156498 | RETAINING RING | 1 | ||
| R909153847 | RETAINING RING | 1 | ||
| R909416799 | WASHER | 1 |
