Baugruppe

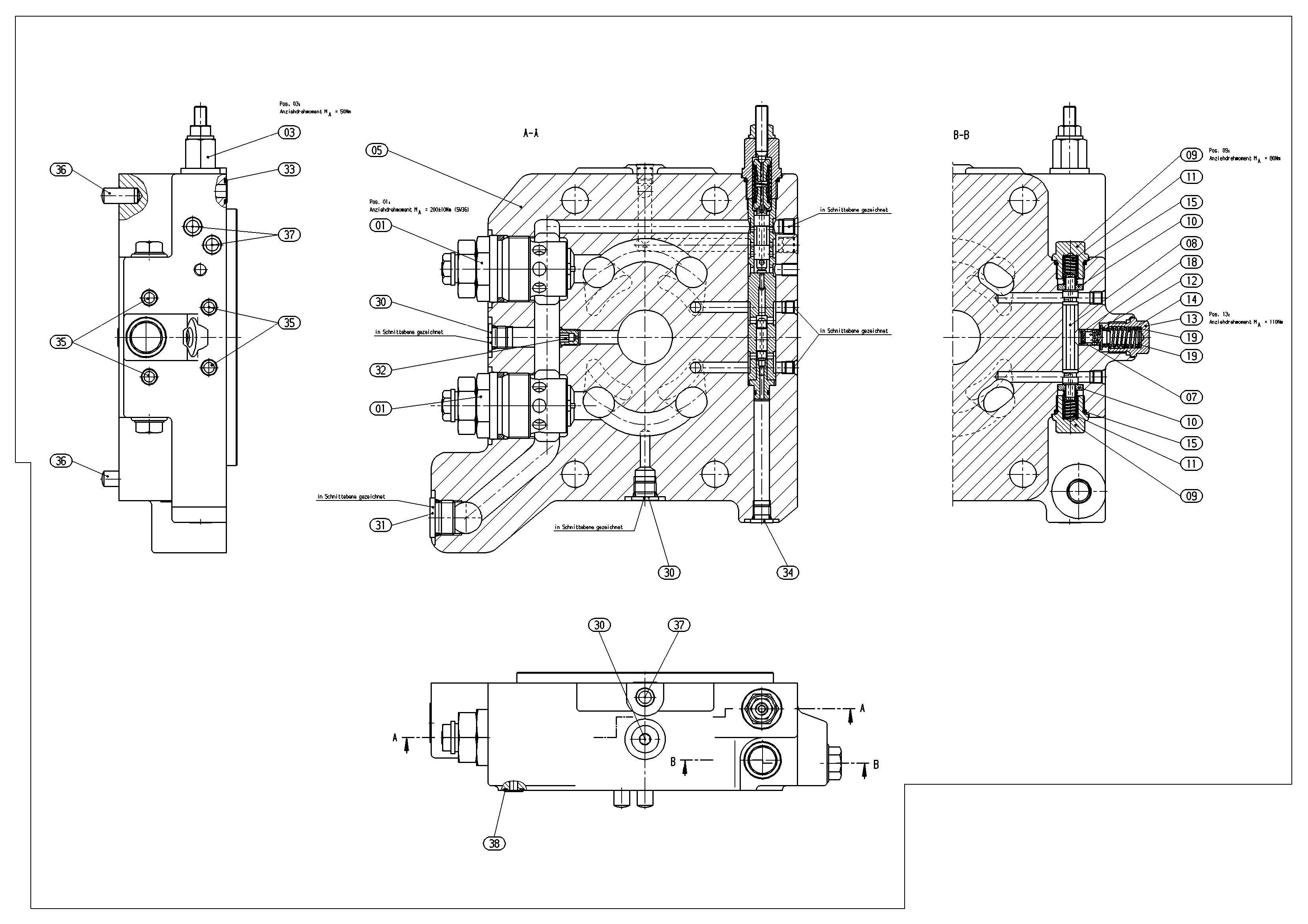

CONNECTION PLATER902001260
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902603817 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 | |
| 3 | R902001318 | PRESSURE CUT-OFF VALVE Stückliste der Baugruppe →L | 1 | |
| 5 | R902001219 | CONNECTION PLATE | 1 | |
| R909419697 | ORIFICE | 1 | ||
| 8 | R902001426 | FLUSHING PISTON | 1 | |
| 9 | R909417111 | SCREW PLUG | 2 | |
| R909417112 | WASHER | 2 | ||
| 11 | R902011921 | COMPRESSION SPRING | 2 | |
| 12 | R909419422 | VALVE SPOOL | 1 | |
| R909417846 | SCREW PLUG | 1 | ||
| 14 | R909417848 | COMPRESSION SPRING | 1 | |
| R909087891 | O-RINGD | 2 | ||
| R909153012 | RETAINING RING | 1 | ||
| R909157079 | SHIM RING | 2 | ||
| R909153371 | SCREW PLUGD | 3 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909832018 | NOZZLE | 1 | ||
| R909086333 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913009672 | STRAIGHT PIN | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909085709 | O-RINGD | 1 |
