Baugruppe

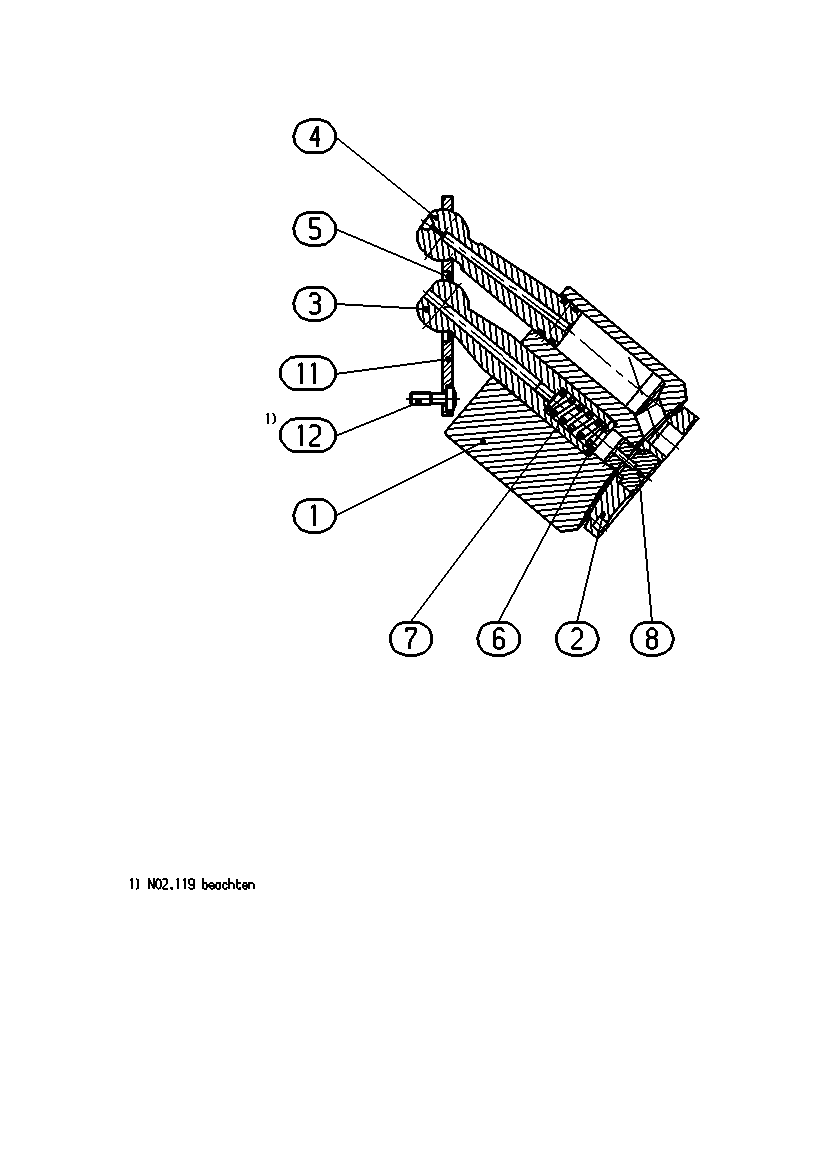

ROTARY GROUPR902001305
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909443821 | CYLINDER | 1 | ||
| 2 | R902034257 | CONTROL PLATE | 1 | |
| 3 | R902027197 | CENTER PIN | 1 | |
| 4 | R902021919 | PISTON | 7 | |
| R909411104 | WASHER | 1 | ||
| 6 | R902001316 | ADJUSTMENT SHIM | 1 | |
| 6 | R902001317 | ADJUSTMENT SHIM | 1 | |
| 7 | R902027213 | COMPRESSION SPRING | 1 | |
| 8 | R902001303 | LOCKING PIN | 1 | |
| 11 | R909444061 | RETAINING PLATE | 1 | |
| R902603052 | PAN-HEAD SCREW | 7 |
