Baugruppe

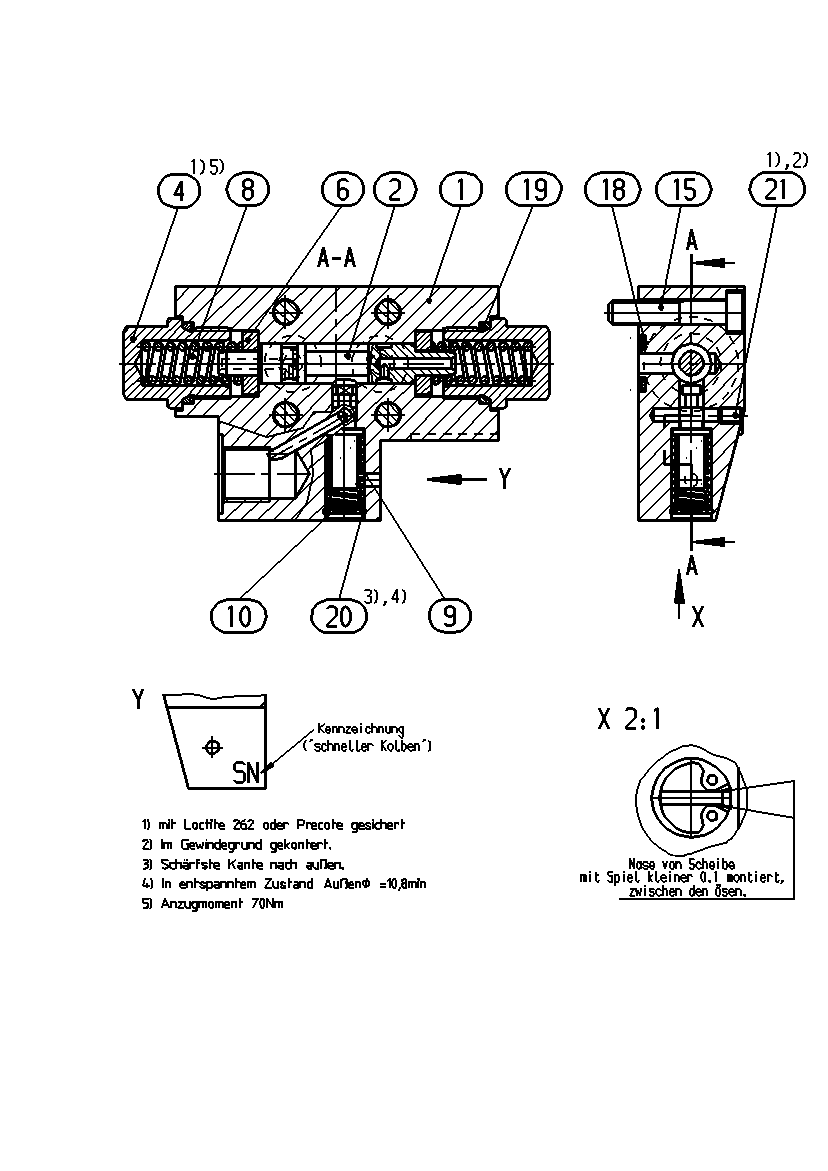

FLUSH/BOOST PRESSURE VALVER902001326
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902001328 | FLUSHING VALVE HOUSING | 1 | |
| R902001404 | FLUSHING PISTON | 1 | ||
| 3 | R902001363 | VALVE SPOOL | 1 | |
| R902001445 | SCREW PLUG | 2 | ||
| R902001348 | WASHER | 2 | ||
| R902001446 | COMPRESSION SPRING | 2 | ||
| R902001364 | COMPRESSION SPRING | 1 | ||
| R902001400 | WASHER | 1 | ||
| R909087049 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083749 | O-RINGD | 2 | ||
| R909086435 | O-RINGD | 2 | ||
| R909087248 | RETAINING RING | 1 | ||
| R909083488 | SETSCREW | 1 |
