Baugruppe

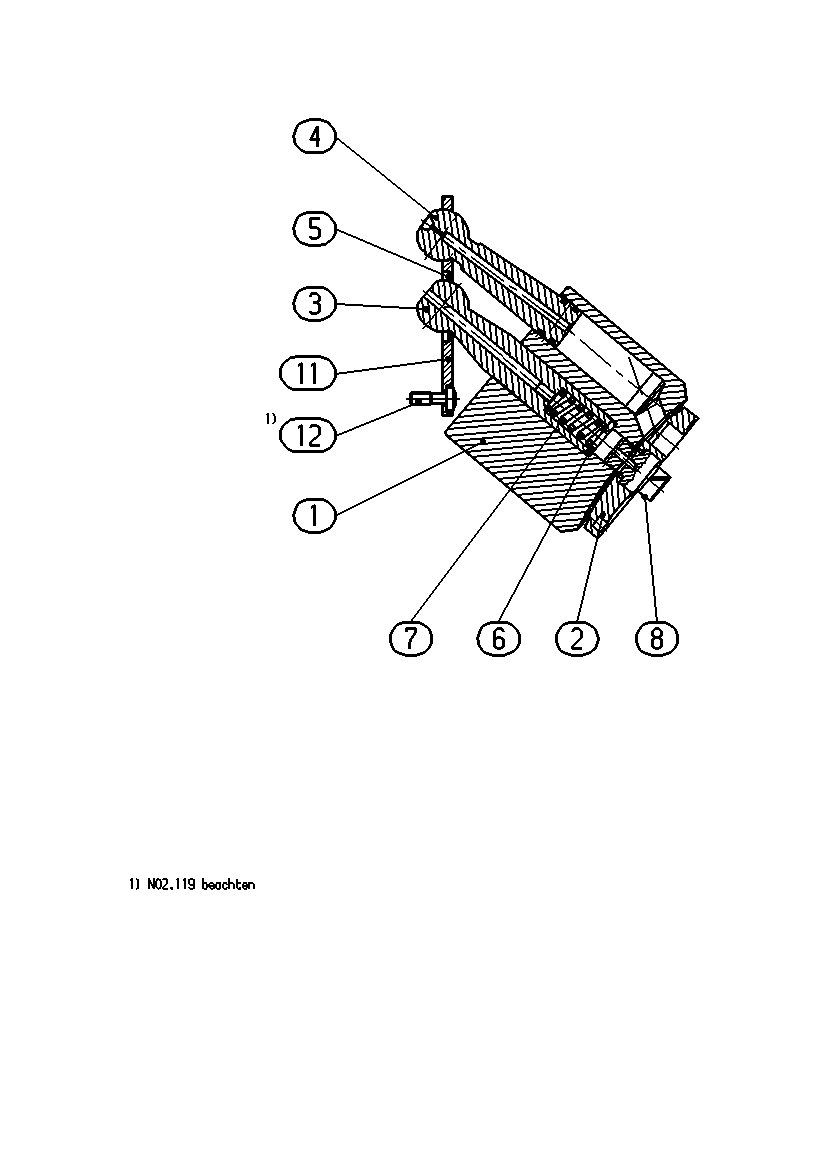

ROTARY GROUPR902001491
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909443821 | CYLINDER | 1 | ||
| R902034257 | CONTROL PLATE | 1 | ||
| R902027197 | CENTER PIN | 1 | ||
| R902021919 | PISTON | 7 | ||
| R909411104 | WASHER | 1 | ||
| 6 | R902096612 | ADJUSTMENT SHIM Stückliste der Baugruppe →L | 1 | |
| 7 | R902027213 | COMPRESSION SPRING | 1 | |
| R902001303 | LOCKING PIN | 1 | ||
| 11 | R909444061 | RETAINING PLATE | 1 | |
| 12 | R902603052 | PAN-HEAD SCREW | 7 |
