Baugruppe

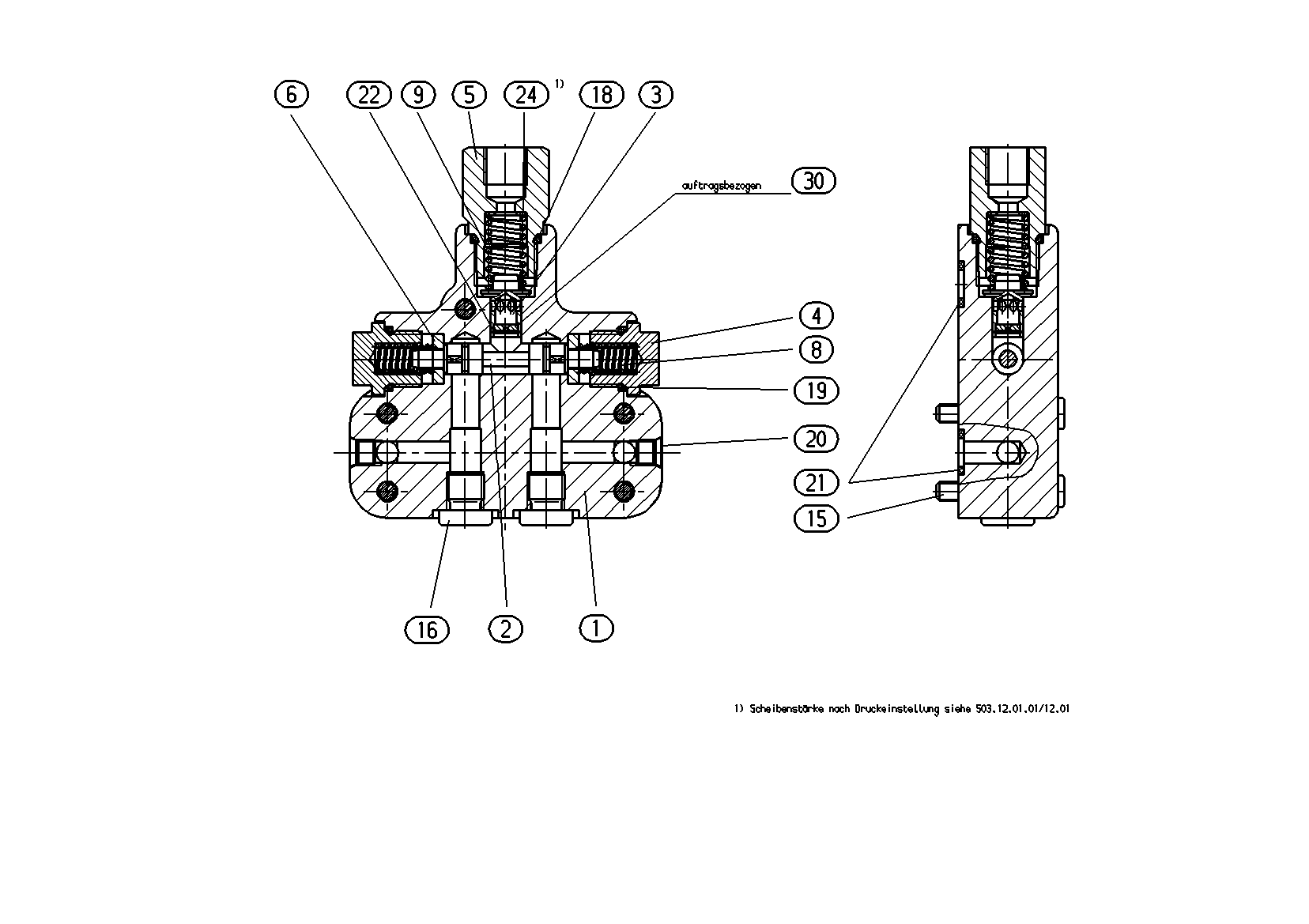

FLUSH/BOOST PRESSURE VALVER902002870
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909449072 | FLUSHING VALVE HOUSING | 1 | |
| R909432410 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| R909449071 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R909417113 | COMPRESSION SPRING | 2 | ||
| 9 | R909417848 | COMPRESSION SPRING | 1 | |
| R909083025 | SOCKET HEAD CAP SCREW | 5 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086435 | O-RINGD | 2 | ||
| 20 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083749 | O-RINGD | 3 | ||
| R909153012 | RETAINING RING | 1 | ||
| R909157079 | SHIM RING | 1 | ||
| R909157965 | SHIM RING | 1 | ||
| R909157966 | SHIM RING | 1 |
