Baugruppe

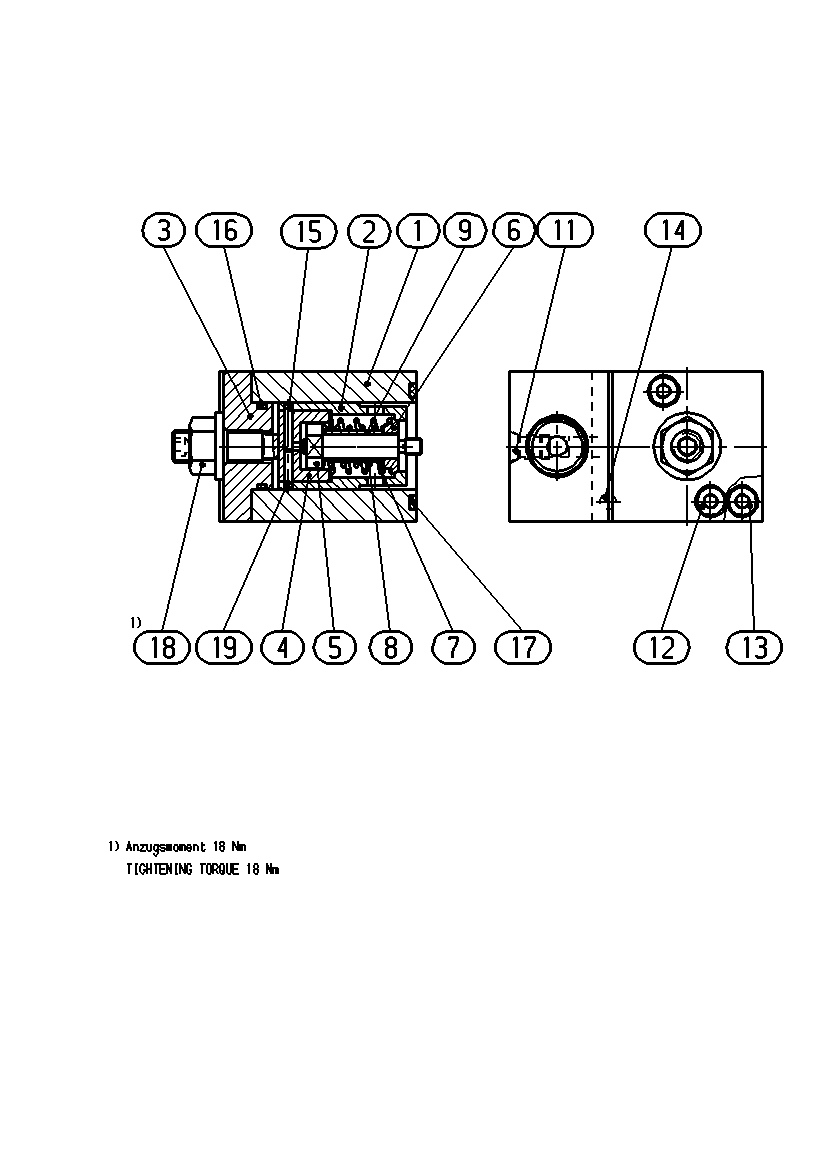

CONTROL MODULE ASSEMBLYR902003832
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909652122 | HOUSING | 1 | ||
| R902019785 | SPRING BUSH | 1 | ||
| R909652120 | COVER | 1 | ||
| R902042546 | ADJUSTING PART | 1 | ||
| R902005006 | SPRING BOLT | 1 | ||
| R902019661 | SPRING DISK | 1 | ||
| R902007795 | COMPRESSION SPRING | 1 | ||
| R902007796 | COMPRESSION SPRING | 1 | ||
| 9 | R902019662 | SPACER SLEEVE | 1 | |
| 11 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083001 | SOCKET HEAD CAP SCREW | 2 | ||
| R909151498 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R909830540 | NEEDLE-ROLLER | 1 | ||
| R909083737 | O-RING | 1 | ||
| R909083764 | O-RING | 1 | ||
| R909152707 | SEALING NUT | 1 | ||
| R909087454 | NEEDLE-ROLLER | 1 |
