Baugruppe

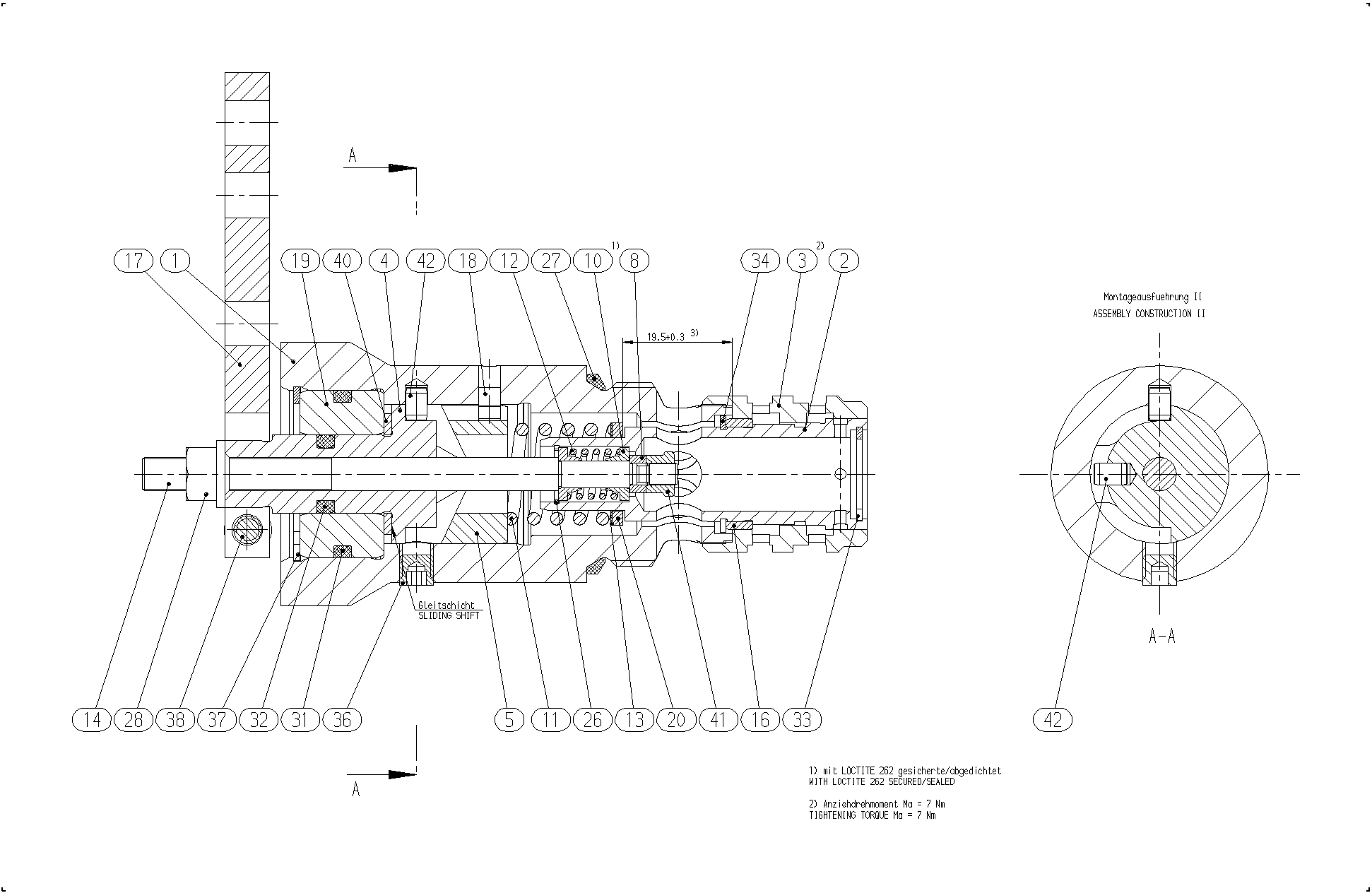

CONTROL CARTRIDGER902003946
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902018681 | CONTROL SCREW | 1 | ||
| R902037075 | DIFFERENTIAL PISTON | 1 | ||
| R909922152 | CONTROLLER PIPE | 1 | ||
| R909650503 | POSITIONING STUD | 1 | ||
| R909921885 | SPRING DISK | 1 | ||
| R909421327 | WASHER | 1 | ||
| R909414047 | SPRING DISK | 2 | ||
| R909403670 | COMPRESSION SPRING | 1 | ||
| R902228522 | COMPRESSION SPRING | 1 | ||
| R909400553 | WASHER | 3 | ||
| R902037911 | STUD | 1 | ||
| R909650154 | RING | 1 | ||
| R909401723 | LEVER | 1 | ||
| R909921889 | PIN | 1 | ||
| R909921888 | LOCKING RING | 1 | ||
| R909404600 | WASHER | 1 | ||
| R909156476 | SNAP RING | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909083749 | O-RINGD | 1 | ||
| R909156498 | RETAINING RING | 1 | ||
| R909153847 | RETAINING RING | 1 | ||
| R902018581 | SETSCREW | 1 | ||
| R909083391 | RETAINING RING | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R902272525 | FRICTION WASHER | 1 | ||
| R909157287 | HEXAGON NUT | 1 | ||
| R909154400 | CYLINDRICAL ROLLER | 2 |
