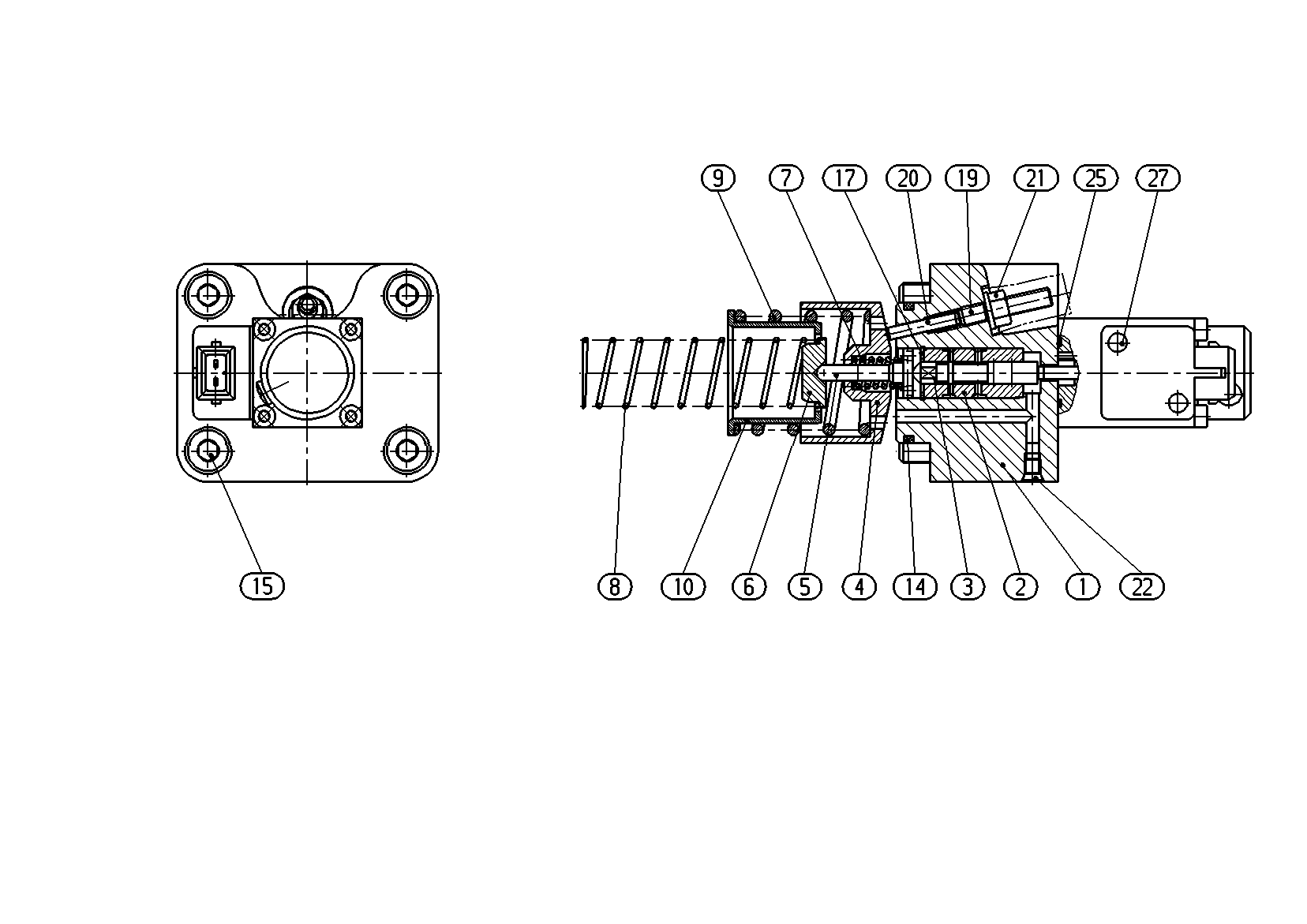

Baugruppe
CONTROL PARTR902004104
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902004082 | CONTROL HOUSING | 1 | |
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909921942 | CONTROL PISTON | 1 | ||
| 4 | R902006596 | ADJUSTING BUSHING | 1 | |
| R909921351 | SPRING DISK | 1 | ||
| R909413198 | SPRING DISK | 1 | ||
| R902006580 | COMPRESSION SPRING | 1 | ||
| R909432471 | COMPRESSION SPRING | 1 | ||
| 9 | R902006587 | COMPRESSION SPRING | 1 | |
| R902006595 | SPRING DISK | 1 | ||
| R909085560 | O-RINGD | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902600646 | O-RINGD | 1 | ||
| R909601214 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 |
