Baugruppe

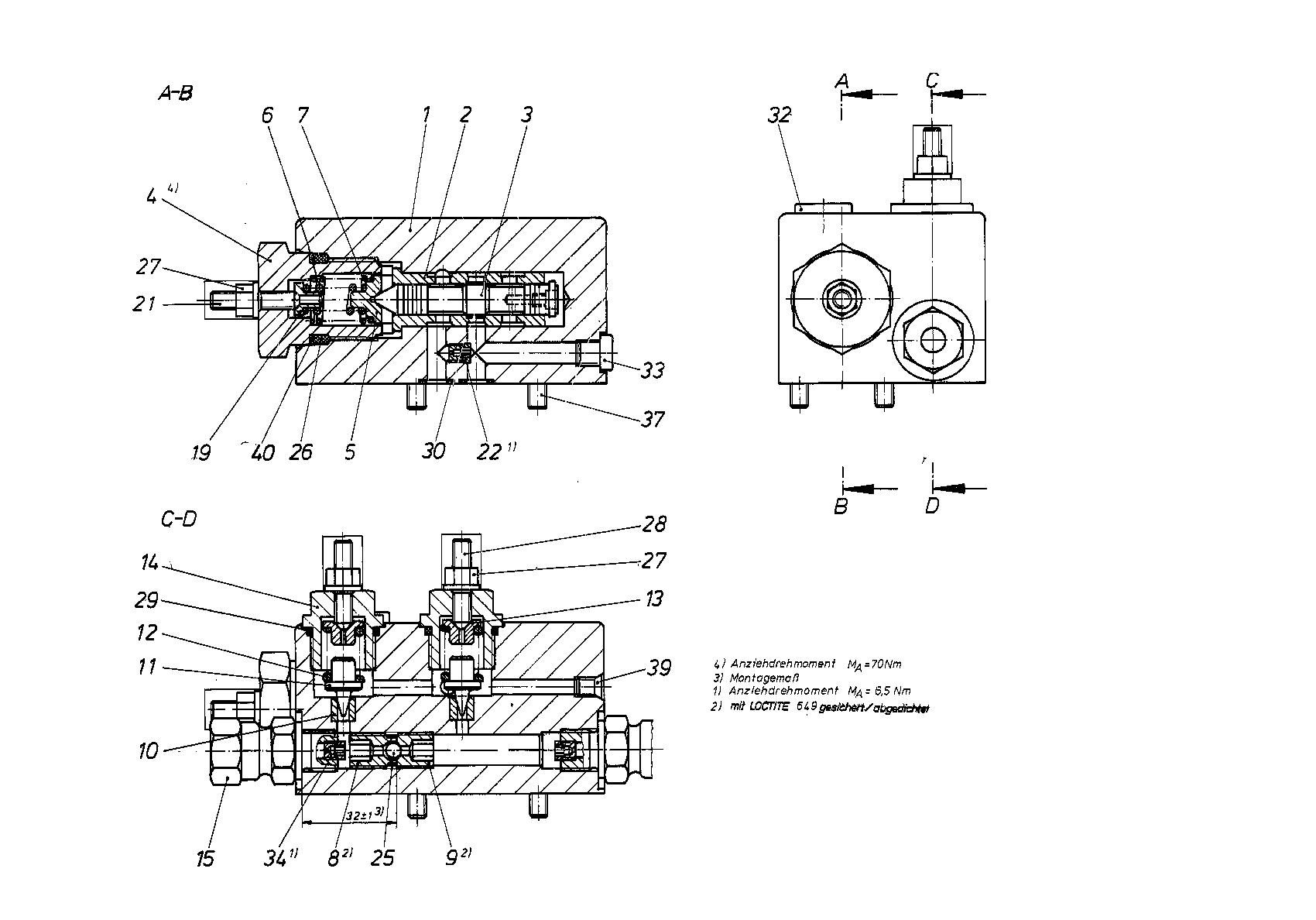

SEQUENCE VALVER902006558
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909432853 | HOUSING | 1 | ||
| 2 | R909431037 | CONTROL SLEEVE | 1 | |
| R909424353 | CONTROL PISTON | 1 | ||
| R909432852 | SCREW PLUG | 1 | ||
| 5 | R909418698 | SPRING DISK | 1 | |
| 6 | R909432906 | COMPRESSION SPRING | 1 | |
| 7 | R909410091 | COMPRESSION SPRING | 1 | |
| 8 | R909415901 | VALVE PIN | 1 | |
| 9 | R909415902 | VALVE PIN | 1 | |
| R909415904 | BUSHING | 2 | ||
| 11 | R902011673 | VALVE CONE | 2 | |
| R909431771 | COMPRESSION SPRING | 2 | ||
| 13 | R909449205 | SPRING DISK | 2 | |
| 14 | R909443089 | SCREW PLUG | 2 | |
| 15 | R909415903 | THREADED FASTENER | 2 | |
| R909422325 | SPRING DISK | 1 | ||
| 21 | R909421402 | SETSCREW | 1 | |
| 22 | R909156493 | NOZZLE | 1 | |
| 25 | R909083258 | BALL | 1 | |
| 26 | R909083797 | O-RINGD | 1 | |
| R909152425 | SEALING NUTD | 3 | ||
| 28 | R909154140 | SETSCREW | 2 | |
| R909083758 | O-RINGD | 2 | ||
| 30 | R909086498 | O-RINGD | 3 | |
| R909151979 | SCREW PLUGD | 1 | ||
| 33 | R909154024 | SCREW PLUGD | 1 | |
| 34 | R909156493 | NOZZLE | 2 | |
| 37 | R909083029 | SOCKET HEAD CAP SCREW | 4 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 40 | R909087626 | BACKUP RINGD | 1 |
