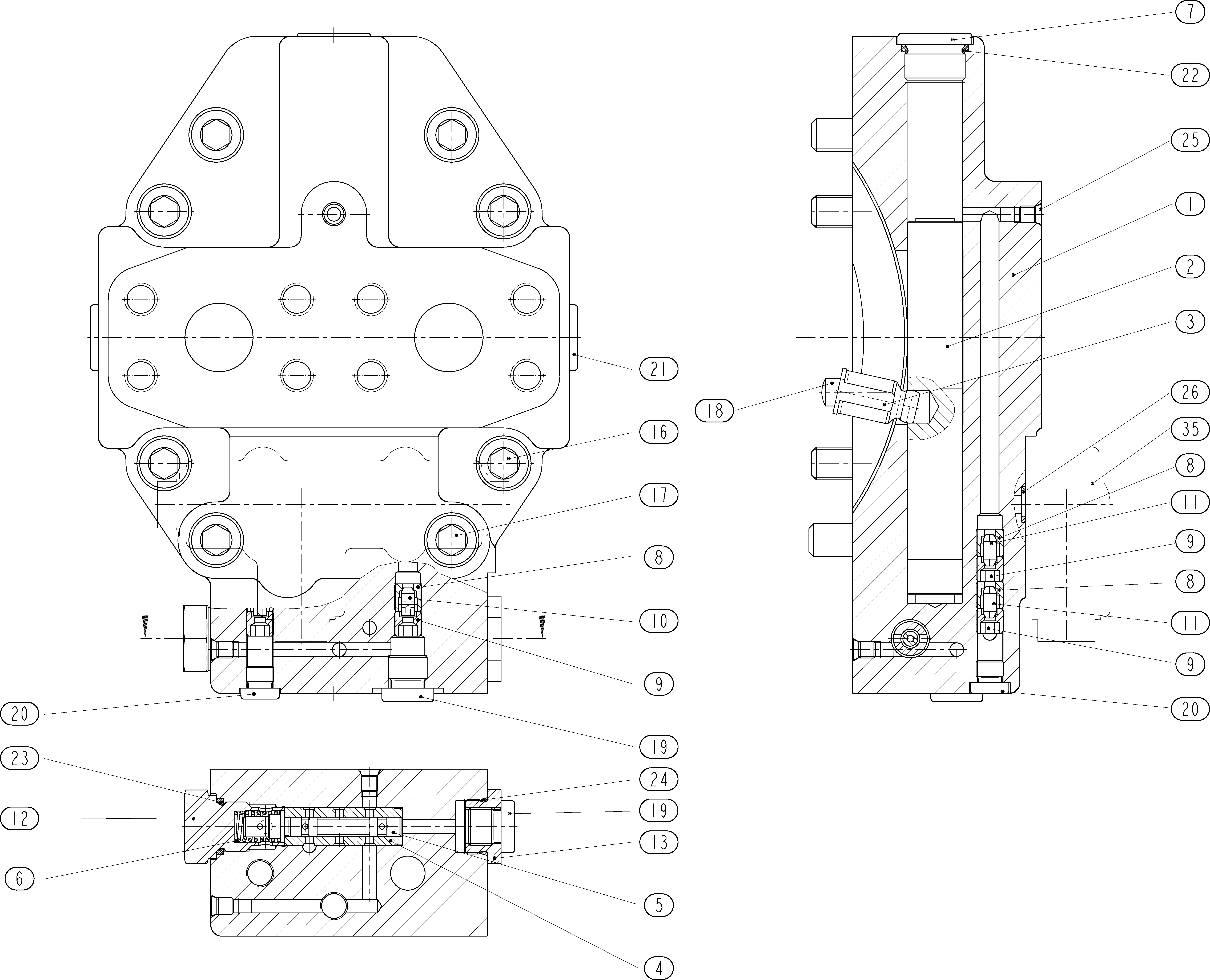

Baugruppe
CONTROLR902011506
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909921647 | COVER PLATE | 1 | ||
| R909921970 | POSITIONING PISTON | 1 | ||
| R909650145 | POSITIONING STUD | 1 | ||
| R909921975 | CONTROL SLEEVE | 1 | ||
| R909921999 | CONTROL PISTON | 1 | ||
| R909445946 | COMPRESSION SPRING | 1 | ||
| R909443855 | SCREW PLUG | 1 | ||
| 11 | R909446625 | THROTTLE PIN Stückliste der Baugruppe →L | 1 | |
| R902009712 | SCREW PLUG | 1 | ||
| 13 | R909922008 | THREADED REDUCING STUD | 1 | |
| R909083092 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 2 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909154235 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 1 | ||
| R909154317 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| 33 | R909830995 | SETSCREW | 1 |
