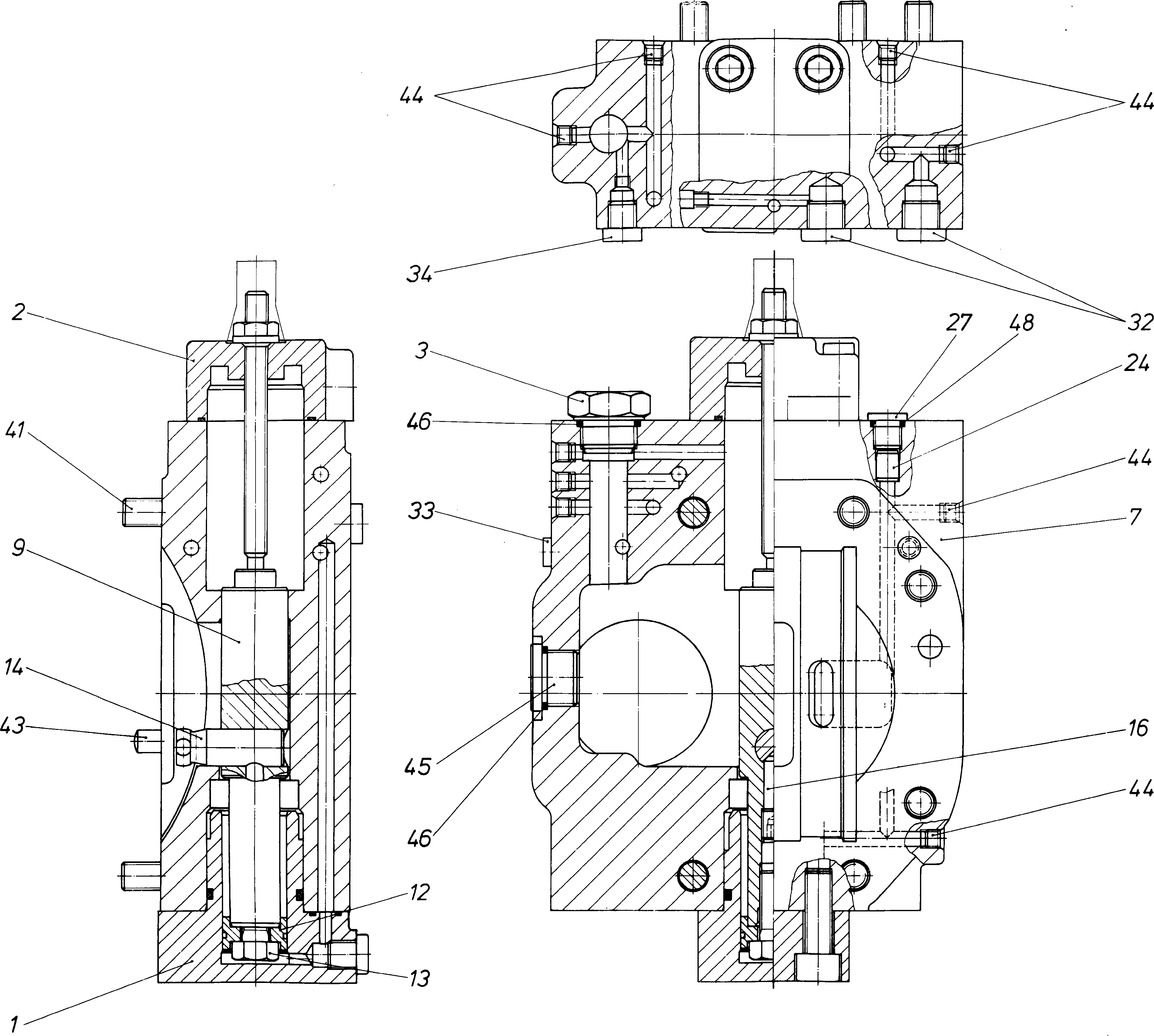

Baugruppe
CONTROLR902011868
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902000046 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| R909610916 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909651394 | SCREW PLUG | 1 | ||
| R909651202 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R909651602 | POSITIONING PISTON | 1 | ||
| R909426389 | PISTON | 1 | ||
| R909083707 | HEXAGON SCREW | 1 | ||
| R909425505 | POSITIONING STUD | 1 | ||
| R909651642 | SETSCREW | 1 | ||
| R909651757 | PLUG | 1 | ||
| R909083219 | SCREW PLUG | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 6 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909086517 | O-RING | 2 | ||
| R909083749 | O-RINGD | 1 |
