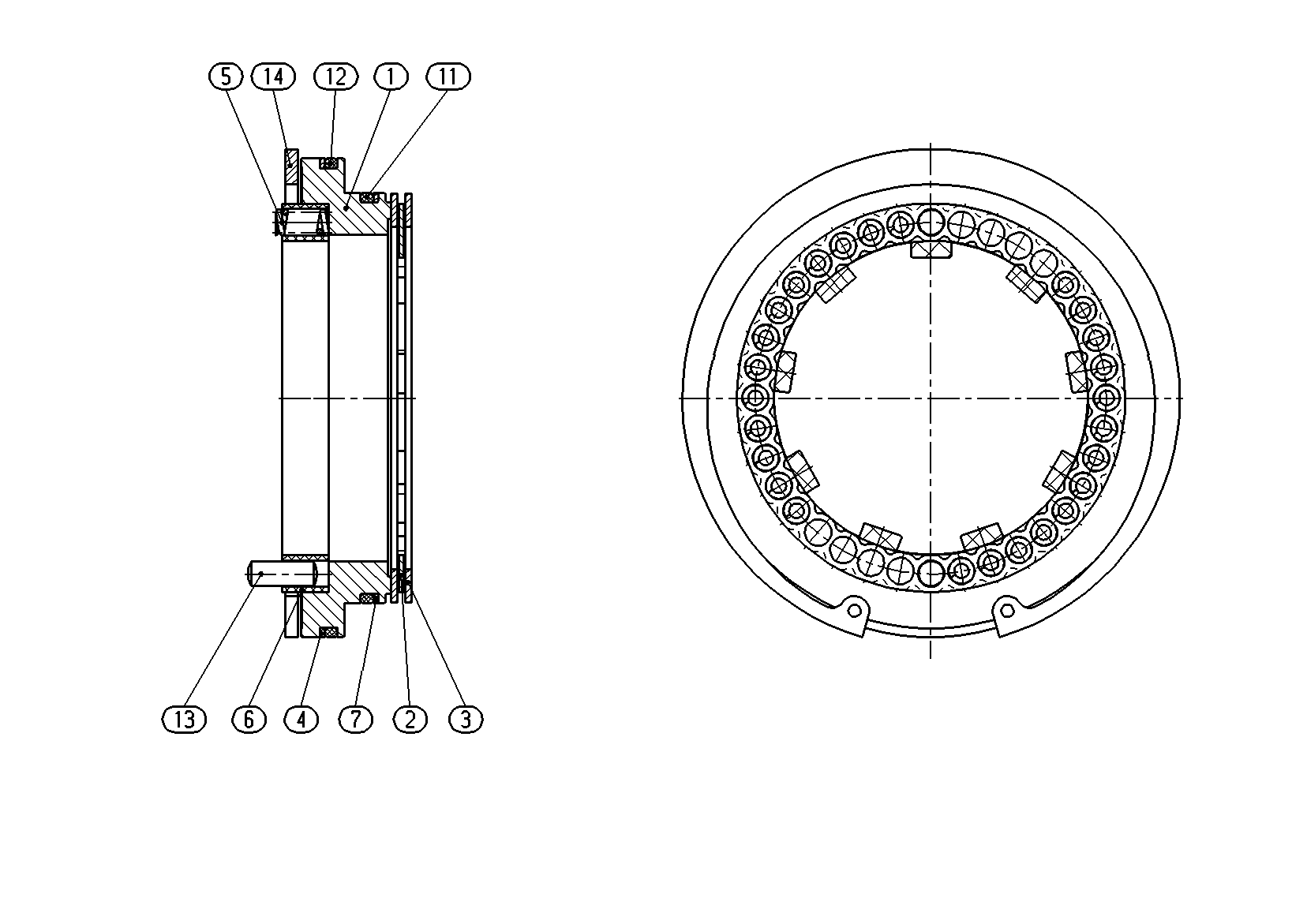

Baugruppe
THRUST RINGR902013409
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902035902 | THRUST RING | 1 | |
| R902049736 | DISC | 1 | ||
| R902013396 | COUNTER DISC | 2 | ||
| R902025772 | BACKUP RING | 1 | ||
| 5 | R902039894 | COMPRESSION SPRING | 26 | |
| R902029529 | GUIDE RING | 1 | ||
| 7 | R902025773 | BACKUP RING | 1 | |
| 11 | R902602992 | QUAD RINGD | 1 | |
| 12 | R902602993 | QUAD RINGD | 1 | |
| R909084175 | STRAIGHT PIN | 2 | ||
| 14 | R909153324 | RETAINING RING | 1 |
