Baugruppe

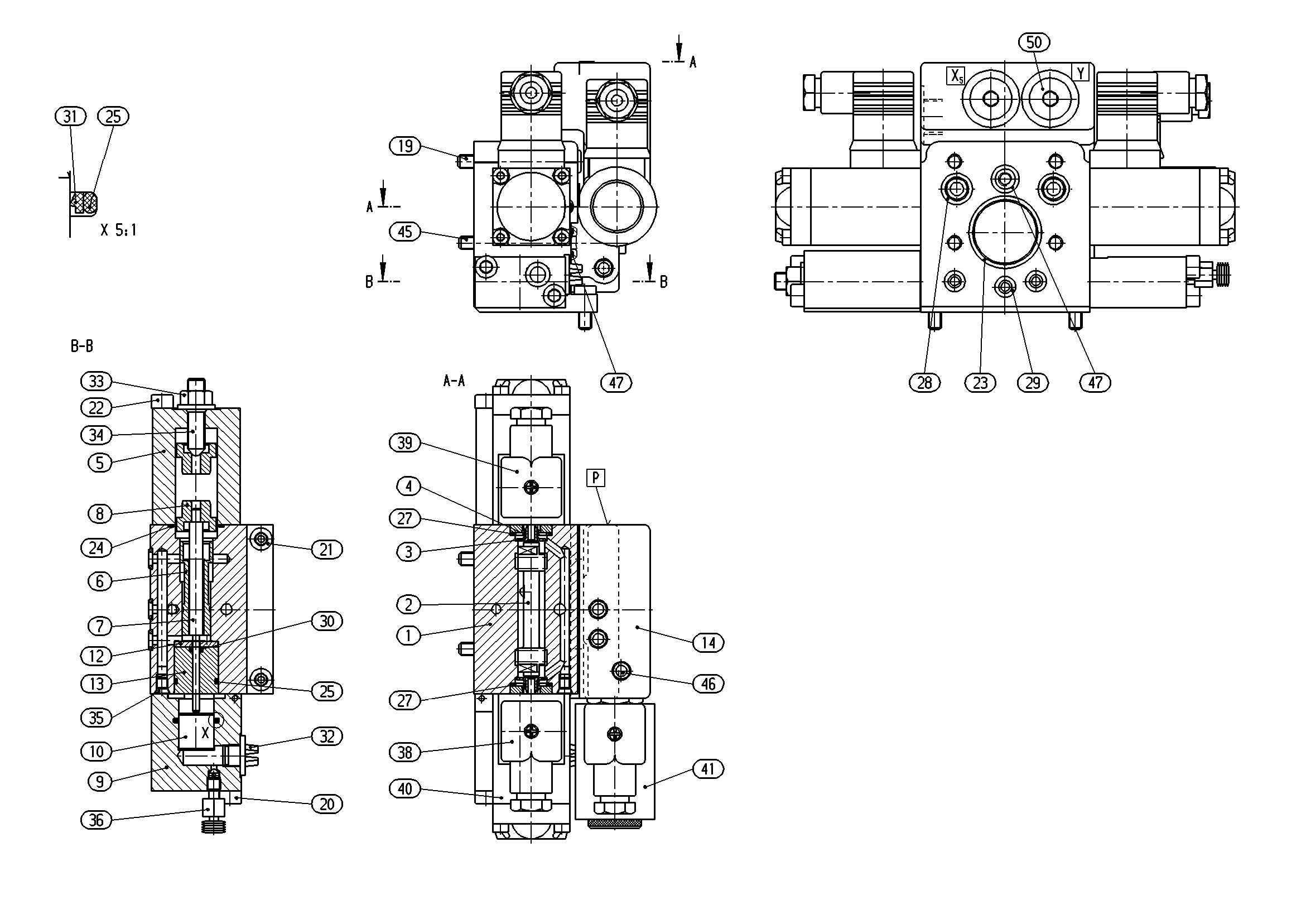

INCHING DEVICER902013996
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902016052 | VALVE HOUSING | 1 | ||
| R909430472 | CONTROL PISTON | 1 | ||
| R909400503 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909445238 | SPRING HOUSING Stückliste der Baugruppe →L | 1 | ||
| R909431073 | CONTROL PISTON | 1 | ||
| R909439838 | GUIDE ROD | 1 | ||
| R909650315 | SPRING DISK | 2 | ||
| R902052893 | HOUSING COVER | 1 | ||
| R909401708 | PISTON | 1 | ||
| R909404505 | WASHER | 1 | ||
| R909445230 | SEAL BUSHING | 1 | ||
| R902028049 | HOUSING | 1 | ||
| R909084385 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083187 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083030 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086250 | O-RINGD | 1 | ||
| R909083735 | O-RINGD | 2 | ||
| R909083734 | O-RINGD | 2 | ||
| R909086332 | O-RINGD | 2 | ||
| R909086380 | O-RINGD | 3 | ||
| R909086301 | O-RINGD | 1 | ||
| R909153892 | ROD SEALD | 1 | ||
| R902602203 | SEAL SCREW | 1 | ||
| R909152707 | SEALING NUT | 1 | ||
| R909153555 | SETSCREW | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831012 | BLEEDER VALVE | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 2 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428266 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 2 | ||
| R902601845 | SLIDE GATE VALVE Stückliste der Baugruppe →L | 1 | ||
| R909085700 | SOCKET HEAD CAP SCREW | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909085709 | O-RINGD | 5 | ||
| R909151979 | SCREW PLUG | 2 |
