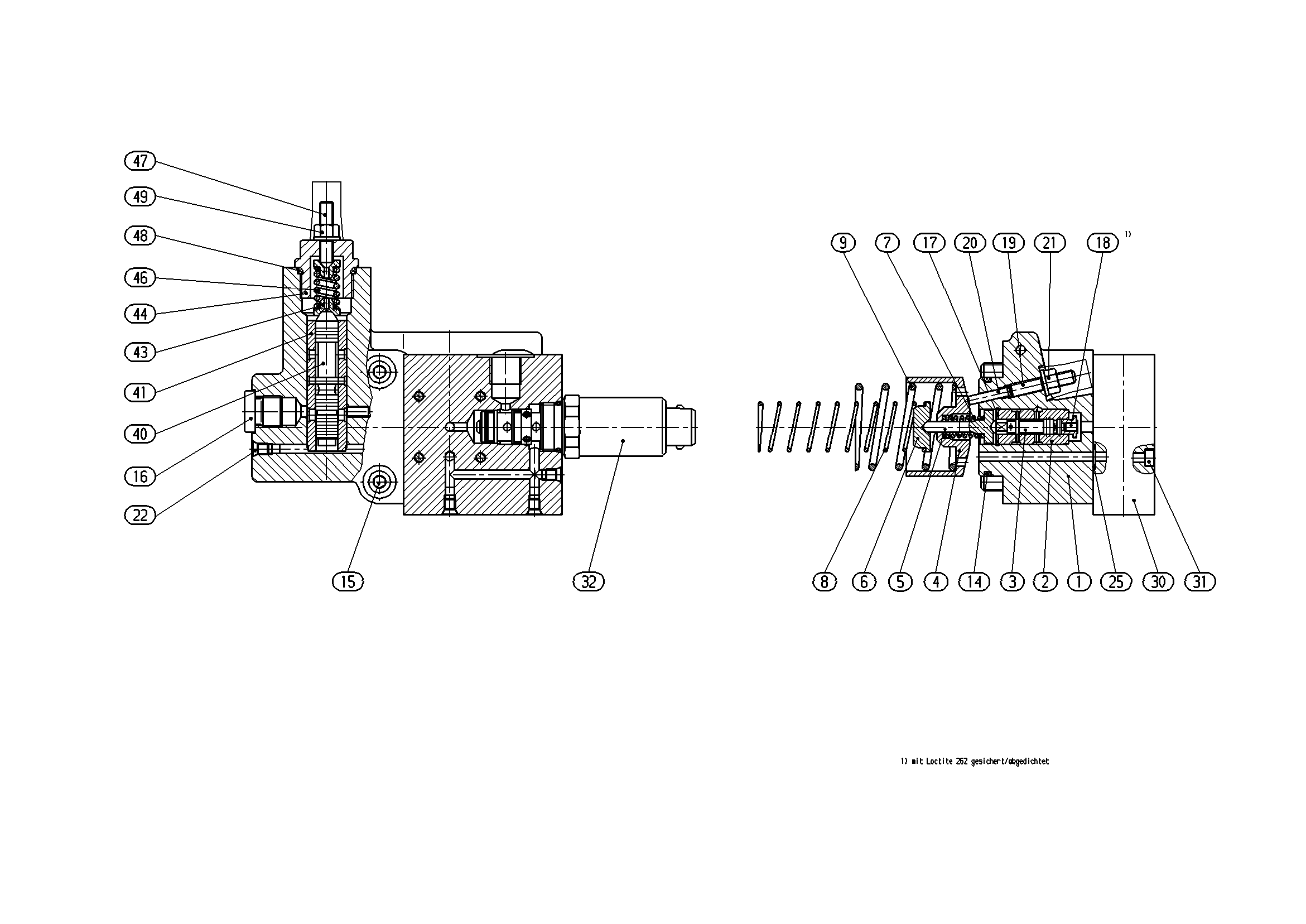

Baugruppe
CONTROL PARTR902014387
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902014389 | CONTROL HOUSING | 1 | |
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909412266 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| 5 | R909921351 | SPRING DISK | 1 | |
| R909413198 | SPRING DISK | 1 | ||
| 7 | R909921420 | COMPRESSION SPRING | 1 | |
| R909431104 | COMPRESSION SPRING | 1 | ||
| 9 | R909651117 | COMPRESSION SPRING | 1 | |
| R909085560 | O-RINGD | 1 | ||
| 15 | R909083042 | SOCKET HEAD CAP SCREW | 4 | |
| R909153930 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| 18 | R902216406 | PLUG | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909085577 | O-RING | 2 | ||
| R902014390 | COVER | 1 | ||
| R909084358 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600246 | PRESSURE REDUCING VALVE | 1 | ||
| R902248588 | CONTROL PISTON | 1 | ||
| 41 | R902000492 | CONTROL SLEEVE | 1 | |
| R909075975 | SPRING DISK | 2 | ||
| R902057206 | SCREW PLUG | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R902052249 | SETSCREW | 1 | ||
| R909152686 | O-RINGD | 1 | ||
| R909157764 | SEALING NUT | 1 |
