Baugruppe

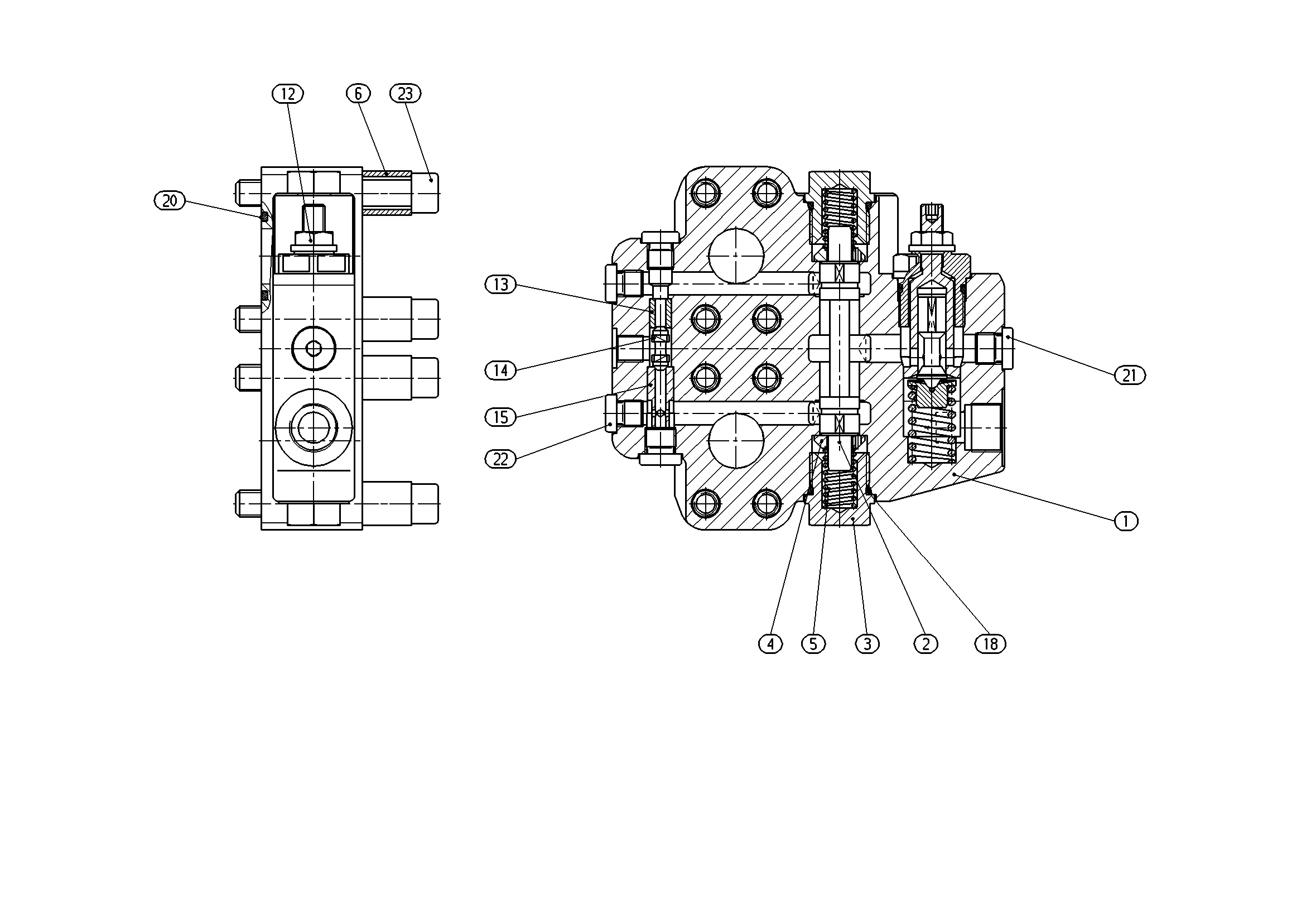

FLUSH/BOOST PRESSURE VALVER902018678
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902087705 | VALVE PLATE | 1 | ||
| R902017462 | FLUSHING PISTON | 1 | ||
| R909445138 | SCREW PLUG | 2 | ||
| R909445140 | SPRING DISK | 2 | ||
| 5 | R909445123 | COMPRESSION SPRING | 2 | |
| R909415430 | SPACER BUSHING | 8 | ||
| R902228944 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| 13 | R902017478 | VALVE HOUSING | 1 | |
| R909445635 | VALVE CONE | 1 | ||
| R902017475 | VALVE HOUSING | 1 | ||
| R909830867 | O-RINGD | 2 | ||
| R909085578 | O-RINGD | 2 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909151692 | SCREW PLUG | 2 | ||
| R909083103 | SOCKET HEAD CAP SCREW | 8 |
