Baugruppe

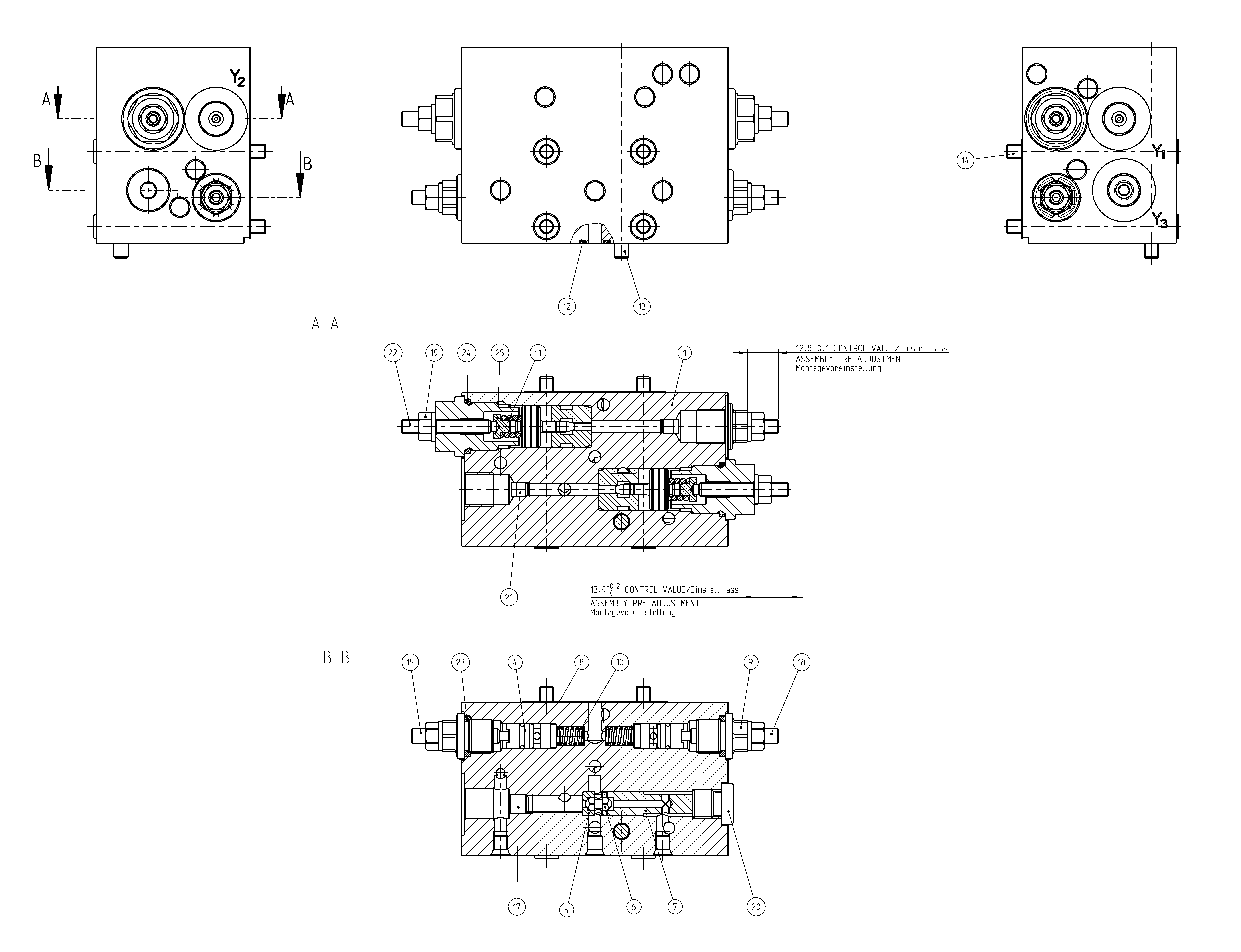

CONTROL UNITR902018937
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902156549 | HOUSING ASSEMBLY GROUP | 1 | ||
| R902028453 | PISTON | 2 | ||
| R902026465 | BRAKE PISTON | 2 | ||
| R909443061 | VALVE HOUSING | 1 | ||
| R909443060 | VALVE PIN | 1 | ||
| R902005869 | VALVE HOUSING | 1 | ||
| R902603829 | SEAL | 1 | ||
| R909413178 | SCREW PLUG | 2 | ||
| R909056988 | COMPRESSION SPRING | 2 | ||
| R902025104 | COMPRESSION SPRING | 2 | ||
| R909085709 | O-RING | 1 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154777 | SETSCREW | 2 | ||
| R909083493 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 4 | ||
| R902026450 | SCREW PLUG | 2 | ||
| R909151692 | SCREW PLUG | 1 | ||
| R909156494 | NOZZLE | 2 | ||
| R902026558 | SETSCREW | 2 | ||
| R909086729 | O-RING | 2 | ||
| R909083757 | O-RING | 2 | ||
| R902026449 | SPRING DISK | 2 |
