Baugruppe

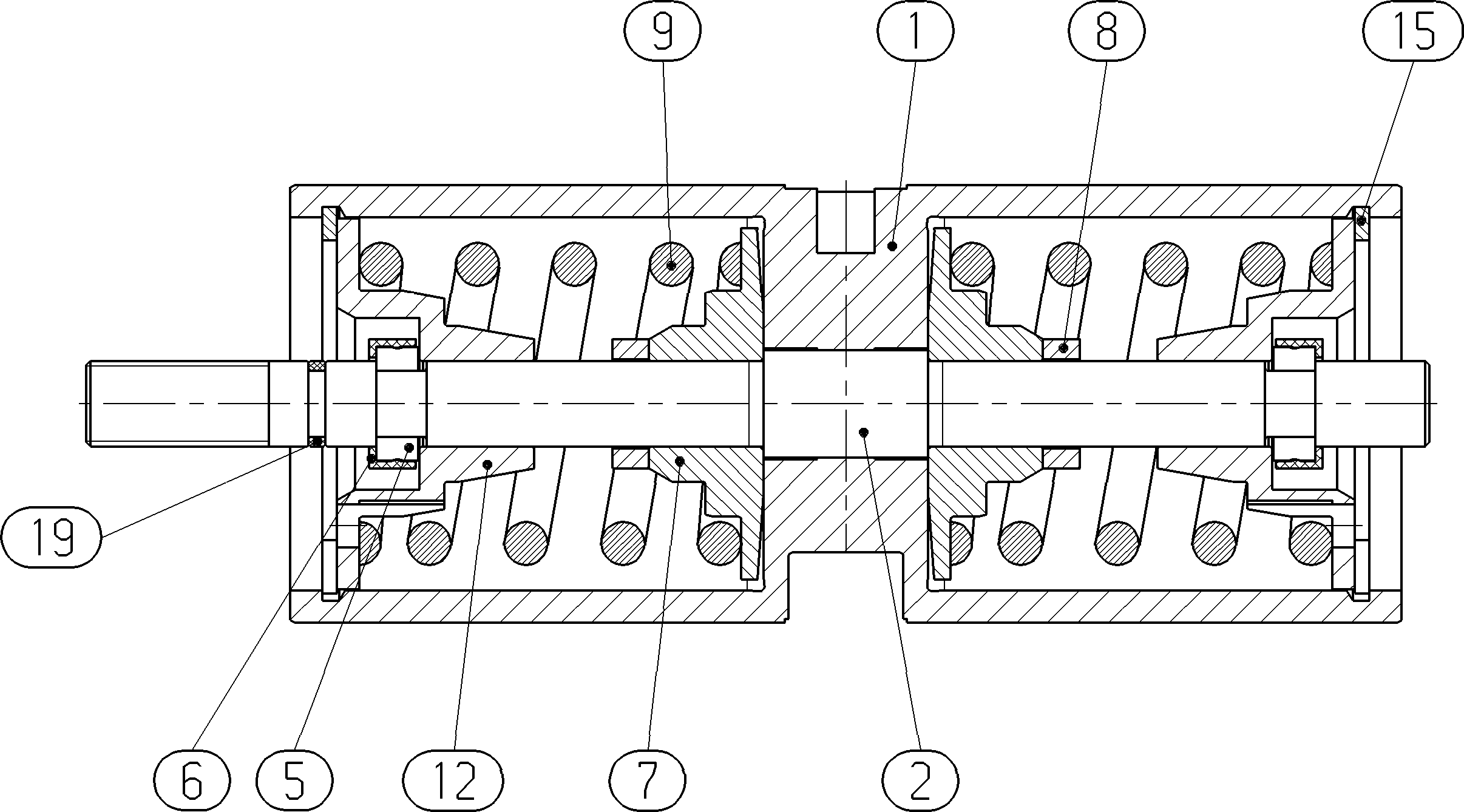

POSITIONING PISTONR902020482
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902222640 | POSITIONING PISTON | 1 | |
| 2 | R909449238 | ROD | 1 | |
| 5 | R902015508 | RING | 2 | |
| 5 | R902013493 | RING | 2 | |
| 5 | R902015509 | RING | 2 | |
| 5 | R902015510 | RING | 2 | |
| 5 | R902015511 | RING | 2 | |
| 5 | R902015512 | RING | 2 | |
| 5 | R902015514 | RING | 2 | |
| 5 | R902015513 | RING | 2 | |
| R902600489 | LOCATING RING | 2 | ||
| R909449245 | SPRING DISK | 2 | ||
| 8 | R909435635 | SPACER RING | 2 | |
| 8 | R909435636 | SPACER RING | 2 | |
| 8 | R909445782 | SPACER RING | 2 | |
| 8 | R909445783 | SPACER RING | 2 | |
| 8 | R909445784 | SPACER RING | 2 | |
| 8 | R909445785 | SPACER RING | 2 | |
| 9 | R909436244 | COMPRESSION SPRING | 2 | |
| R909449246 | SPRING DISK | 2 | ||
| R909083404 | RETAINING RING | 2 | ||
| R909085709 | O-RINGD | 1 |
