Baugruppe

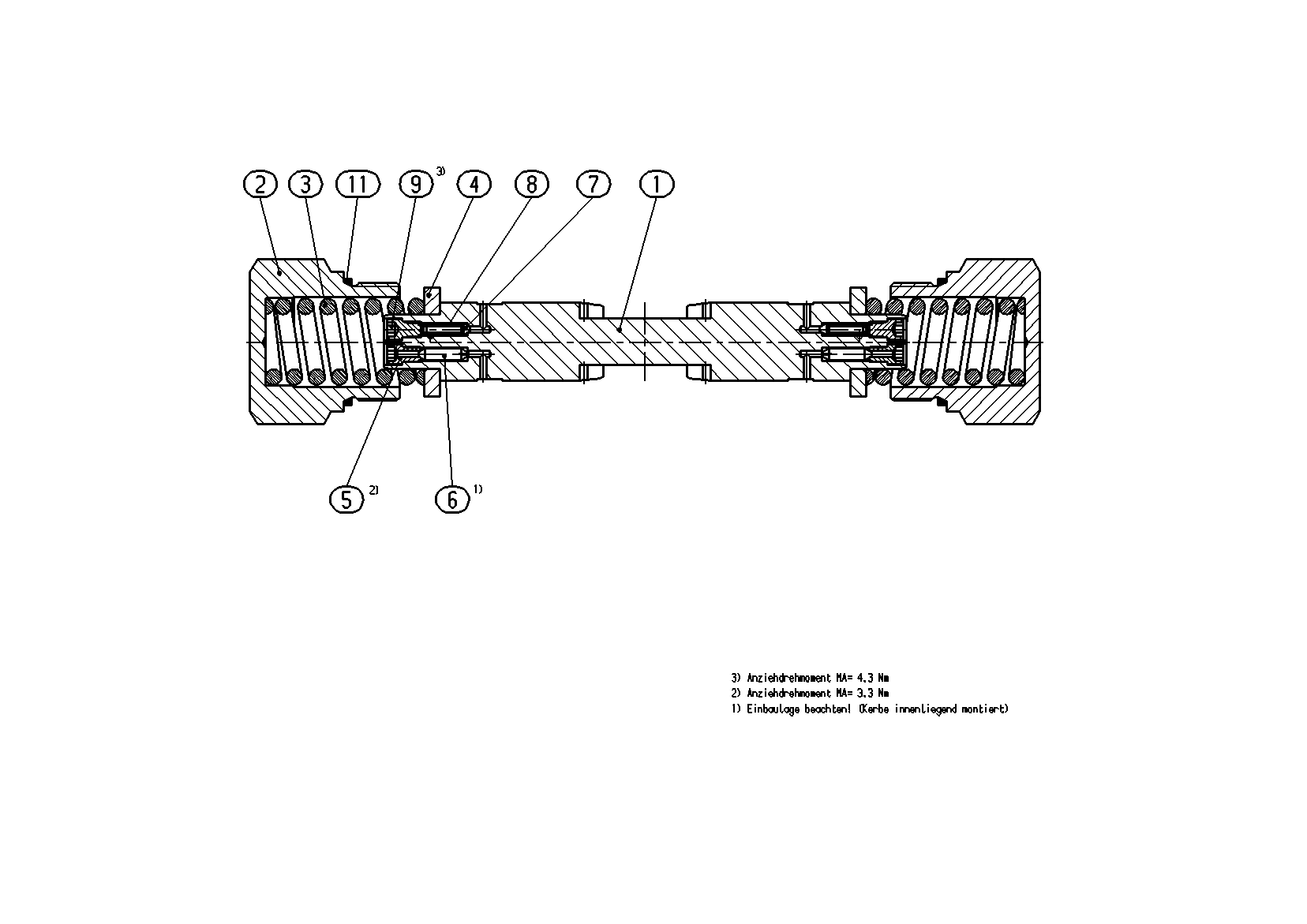

BRAKE VALVER902021806
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902011717 | BRAKE PISTON | 1 | ||
| 2 | R902060366 | SCREW PLUG | 2 | |
| 3 | R909921002 | COMPRESSION SPRING | 2 | |
| R902077337 | WASHER | 2 | ||
| 5 | R902011718 | VALVE SCREW | 2 | |
| 6 | R902021805 | THROTTLE PIN | 2 | |
| 7 | R902011720 | VALVE PIN | 2 | |
| 8 | R902011719 | COMPRESSION SPRING | 2 | |
| 9 | R902018333 | SCREW | 2 | |
| 11 | R909831230 | O-RINGD | 2 |
