Baugruppe

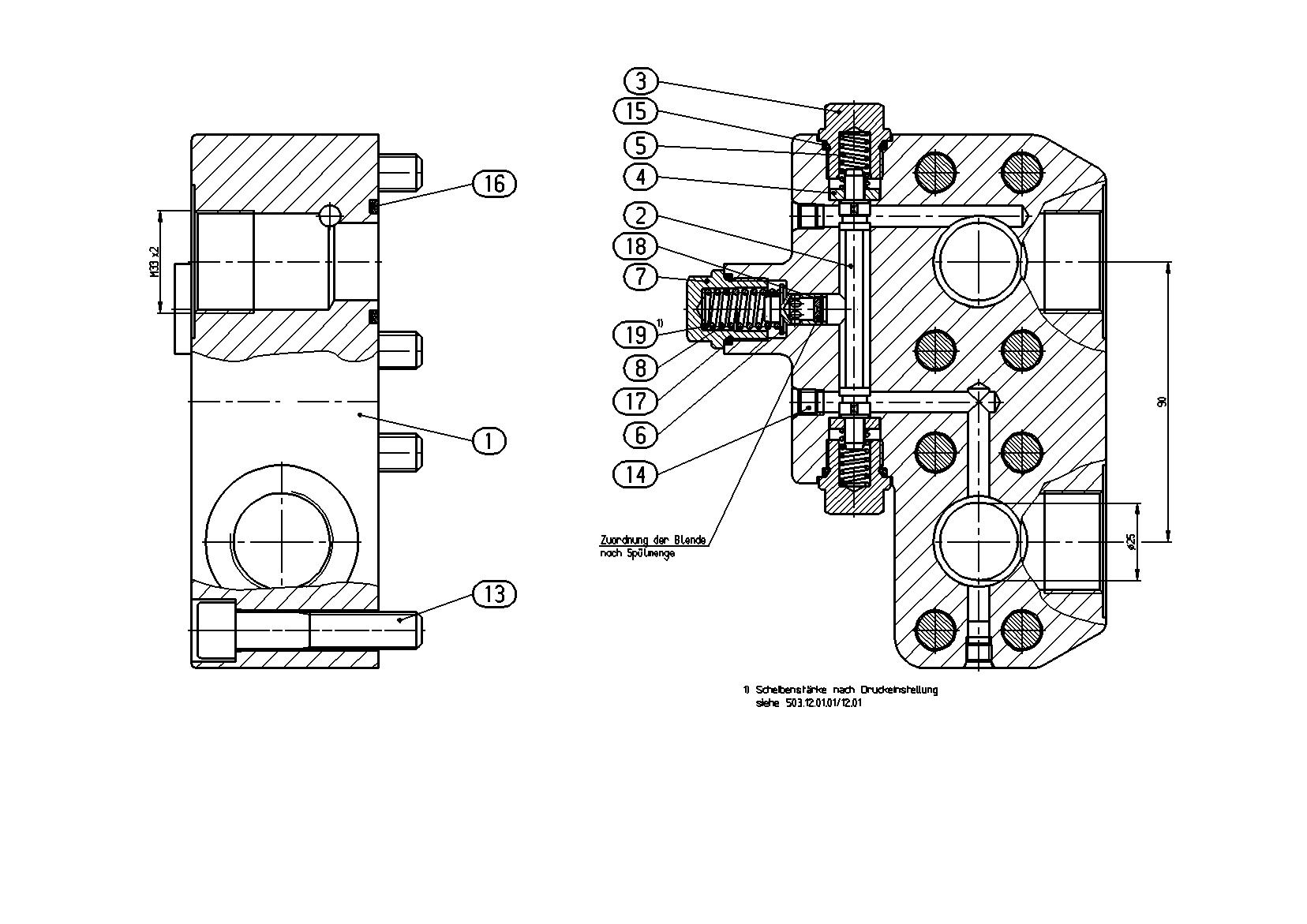

FLUSH/BOOST PRESSURE VALVER902025236
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902025212 | VALVE PLATE | 1 | |
| R902000157 | FLUSHING PISTON | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| R909417112 | WASHER | 2 | ||
| 5 | R902011921 | COMPRESSION SPRING | 2 | |
| R909419422 | VALVE SPOOL | 1 | ||
| R909417846 | SCREW PLUG | 1 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R909083096 | SOCKET HEAD CAP SCREW | 8 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909087891 | O-RINGD | 2 | ||
| R909085578 | O-RINGD | 2 | ||
| R909087938 | O-RING | 1 | ||
| R909153012 | RETAINING RING | 1 | ||
| R909157079 | SHIM RING | 1 | ||
| R909157965 | SHIM RING | 1 | ||
| R909157966 | SHIM RING | 1 |
