Baugruppe

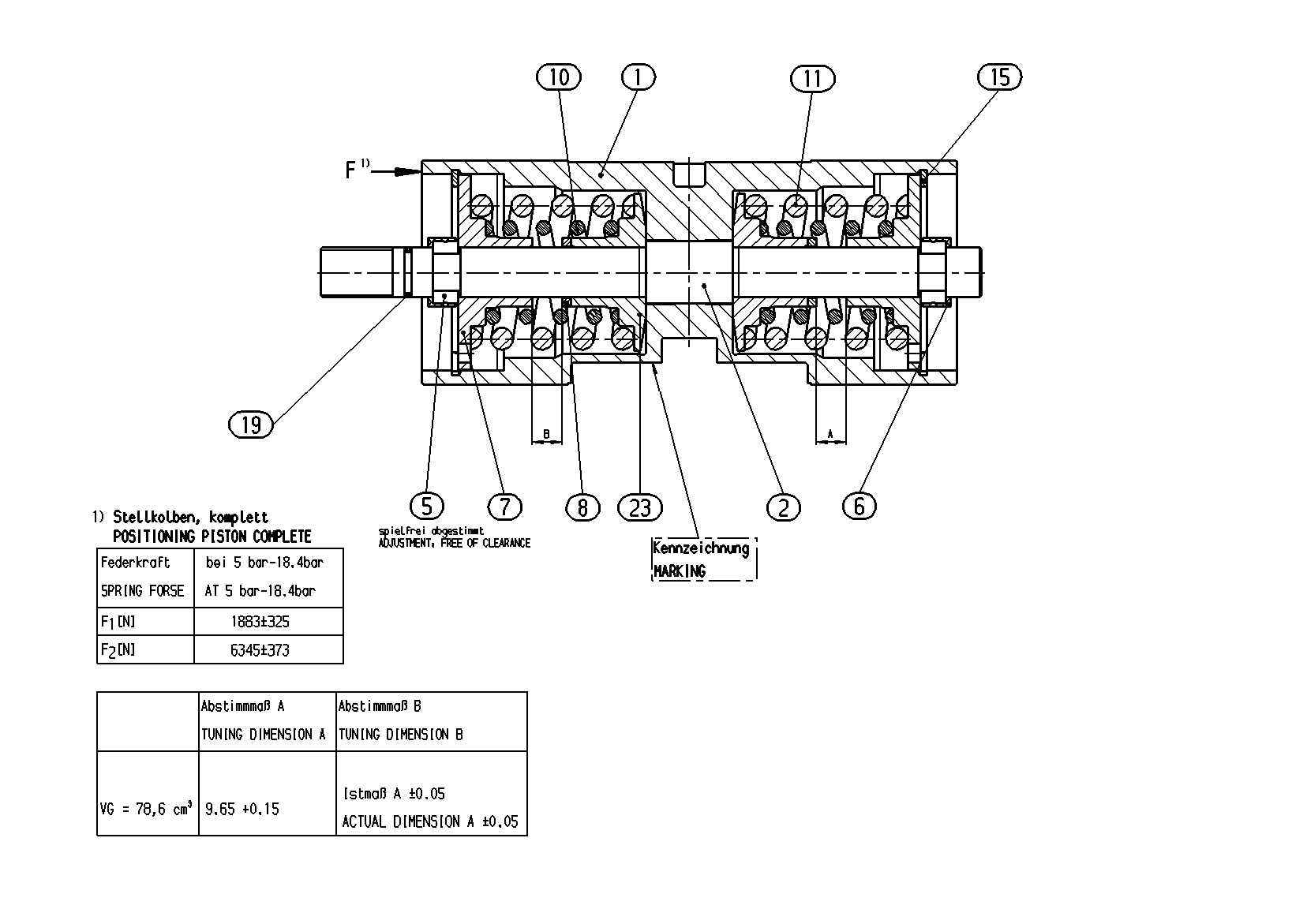

POSITIONING PISTONR902025506
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902205263 | POSITIONING PISTON | 1 | ||
| R909922109 | ROD | 1 | ||
| R902020493 | RING | 2 | ||
| R902020494 | RING | 2 | ||
| R902020495 | RING | 2 | ||
| R902020496 | RING | 2 | ||
| R902020497 | RING | 2 | ||
| R902020498 | RING | 2 | ||
| R902029756 | RING | 2 | ||
| R902029757 | RING | 2 | ||
| R902043149 | RING | 2 | ||
| R902600767 | LOCATING RING | 2 | ||
| R902095432 | SPRING DISK | 2 | ||
| R909922050 | SHIM RING | 2 | ||
| R909922054 | SHIM RING | 2 | ||
| R909922057 | SHIM RING | 2 | ||
| R909922058 | SHIM RING | 2 | ||
| R909922059 | SHIM RING | 2 | ||
| R909922060 | SHIM RING | 2 | ||
| 10 | R909922121 | COMPRESSION SPRING | 2 | |
| 11 | R902146929 | COMPRESSION SPRING | 2 | |
| 15 | R909830312 | RETAINING RING | 2 | |
| 19 | R909086333 | O-RINGD | 1 | |
| R902095433 | SPRING DISK | 2 |
