Baugruppe

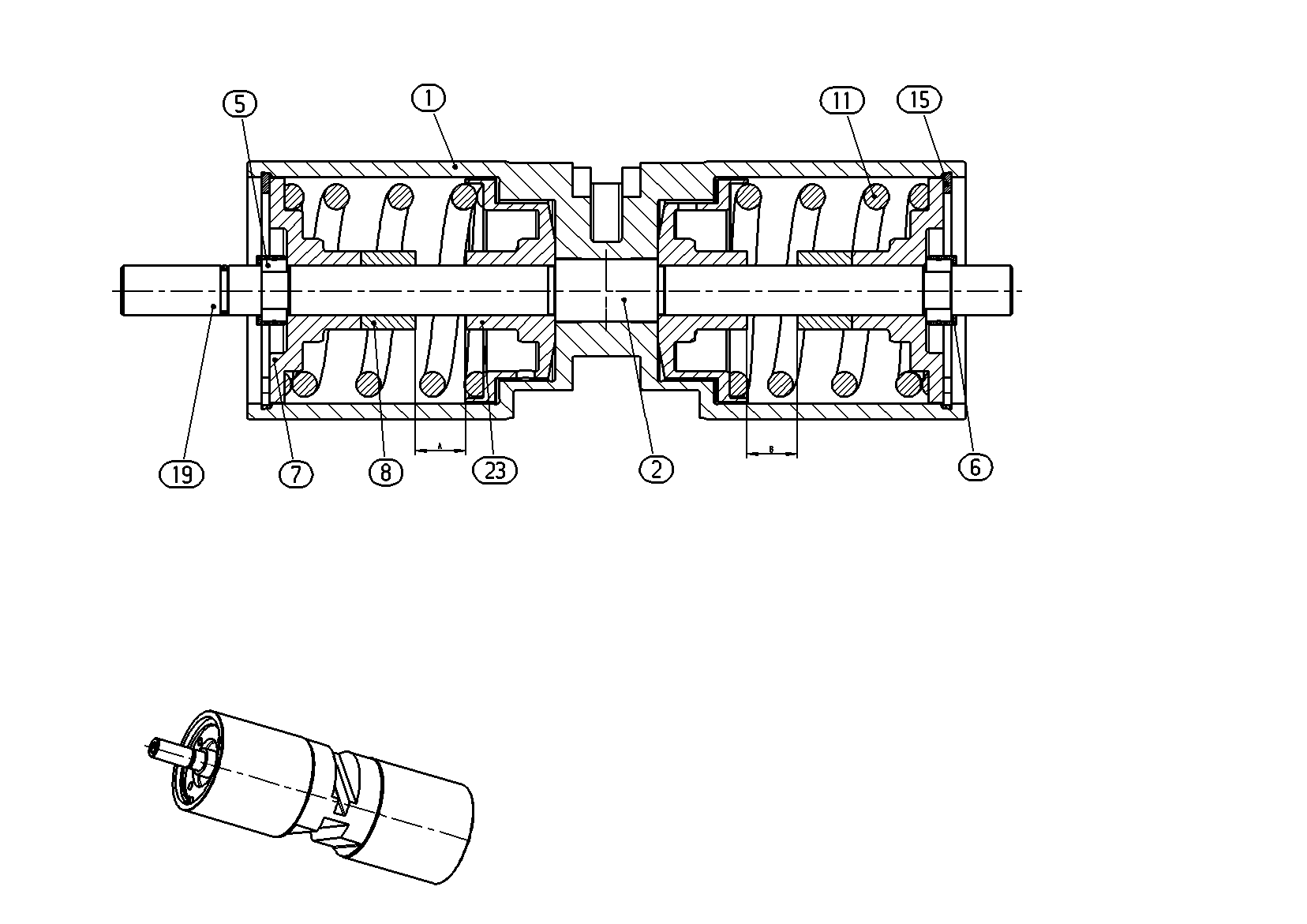

POSITIONING PISTONR902025615
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902213110 | POSITIONING PISTON | 1 | ||
| R909449242 | ROD | 1 | ||
| R902020493 | RING | 2 | ||
| R902020494 | RING | 2 | ||
| R902020495 | RING | 2 | ||
| R902020496 | RING | 2 | ||
| R902020497 | RING | 2 | ||
| R902020498 | RING | 2 | ||
| R902029756 | RING | 2 | ||
| R902029757 | RING | 2 | ||
| R902043149 | RING | 2 | ||
| R902600767 | LOCATING RING | 2 | ||
| R909449253 | SPRING DISK | 2 | ||
| R909436960 | SPACER BUSHING | 2 | ||
| R909436961 | SPACER BUSHING | 2 | ||
| R909436962 | SPACER BUSHING | 2 | ||
| R909445799 | SPACER BUSHING | 2 | ||
| R909445800 | SPACER BUSHING | 2 | ||
| R909445801 | SPACER BUSHING | 2 | ||
| 10 | R909436967 | COMPRESSION SPRING | 2 | |
| R909083412 | RETAINING RING | 2 | ||
| R909086333 | O-RINGD | 1 | ||
| R909449254 | SPRING DISK | 2 |
