Baugruppe

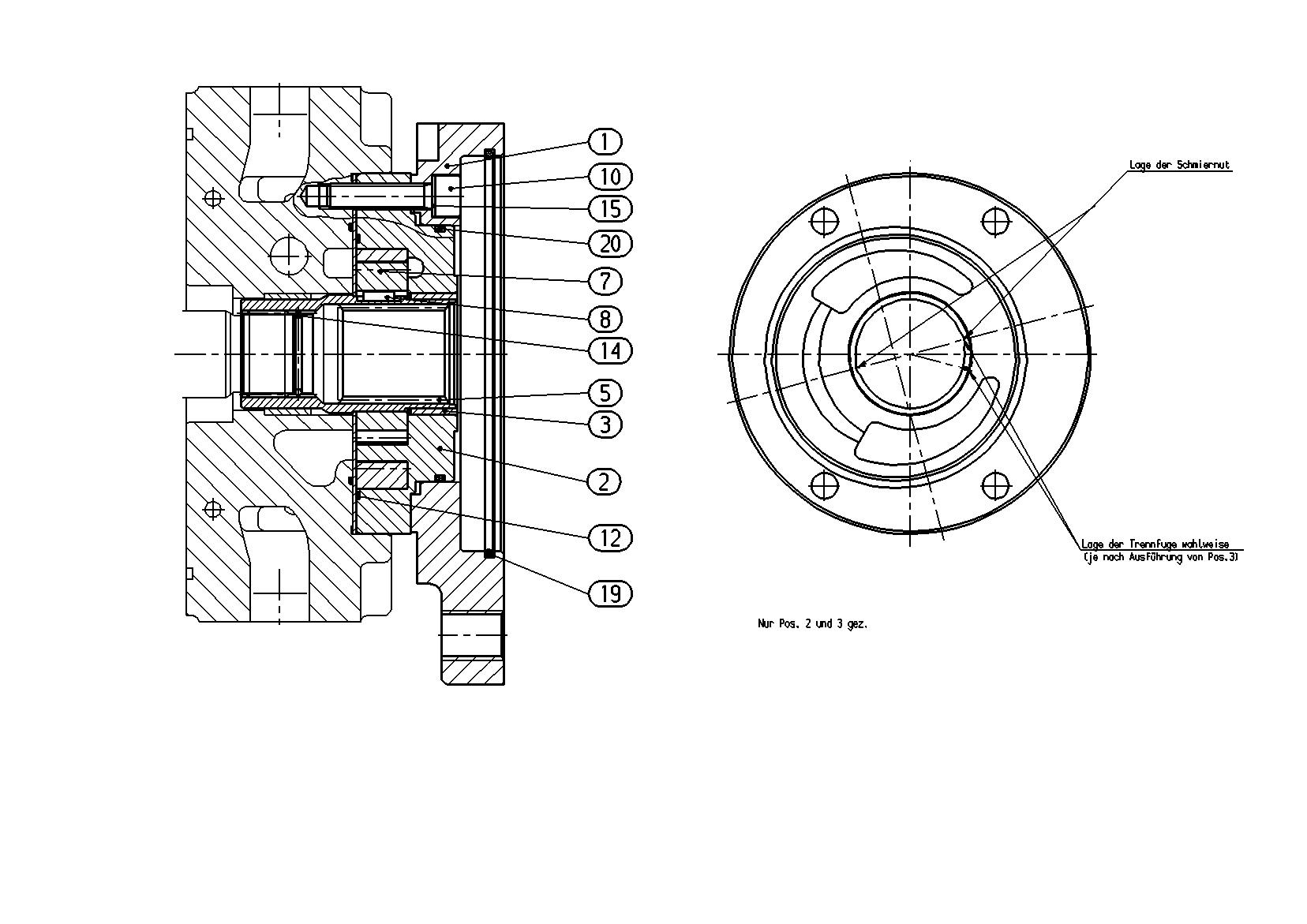

INTERNAL GEAR PUMPR902026677
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909439127 | INTERMEDIATE FLANGE | 1 | ||
| R909439853 | PUMP COVER | 1 | ||
| R902260548 | BUSHING | 1 | ||
| R902258110 | THROUGH DRIVE SHAFT | 1 | ||
| R902020030 | WHEEL SET | 1 | ||
| R902025652 | PARALLEL KEY | 1 | ||
| R909154979 | SOCKET HEAD CAP SCREW | 4 | ||
| — | KANTSEALD | 1 | ||
| R902601474 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| R909085364 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
