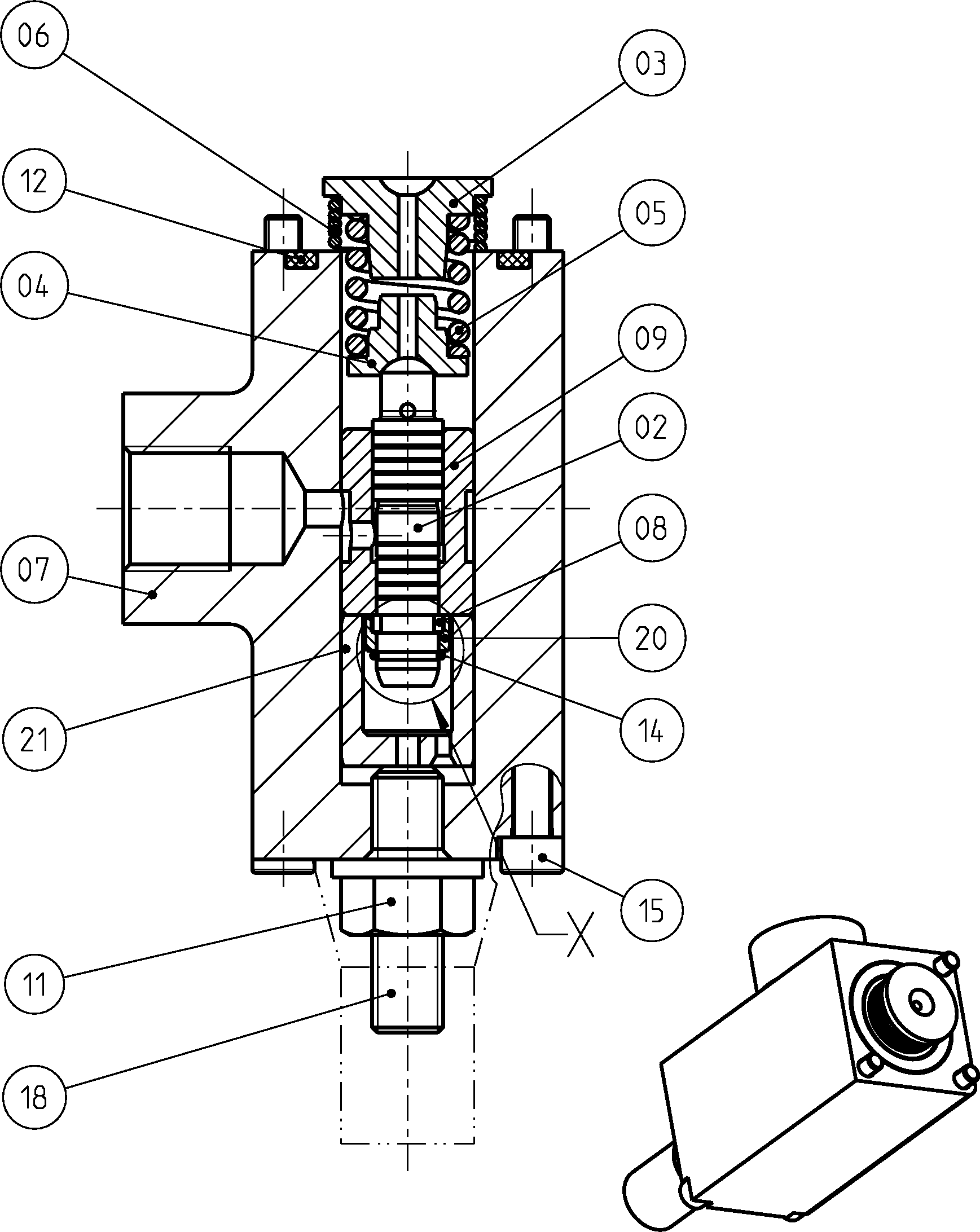

Baugruppe
CONTROL ELEMENTR902026762
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 2 | R902017418 | DIFFERENTIAL PISTON | 1 | |
| 3 | R909444550 | SPRING DISK | 1 | |
| R909436991 | SPRING BOLT | 1 | ||
| 5 | R902012047 | COMPRESSION SPRING | 1 | |
| 6 | R909061867 | COMPRESSION SPRING | 1 | |
| 7 | R902026446 | HOUSING | 1 | |
| 8 | R902025204 | STOP RING | 1 | |
| 9 | R902026441 | CONTROL SLEEVE | 1 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909157090 | SNAP RING | 1 | ||
| R909157700 | SOCKET HEAD CAP SCREW | 3 | ||
| R909084531 | SETSCREW | 1 | ||
| R902025205 | RETAINING RING | 1 | ||
| R902025203 | ADJUSTING BUSHING | 1 |
