Baugruppe

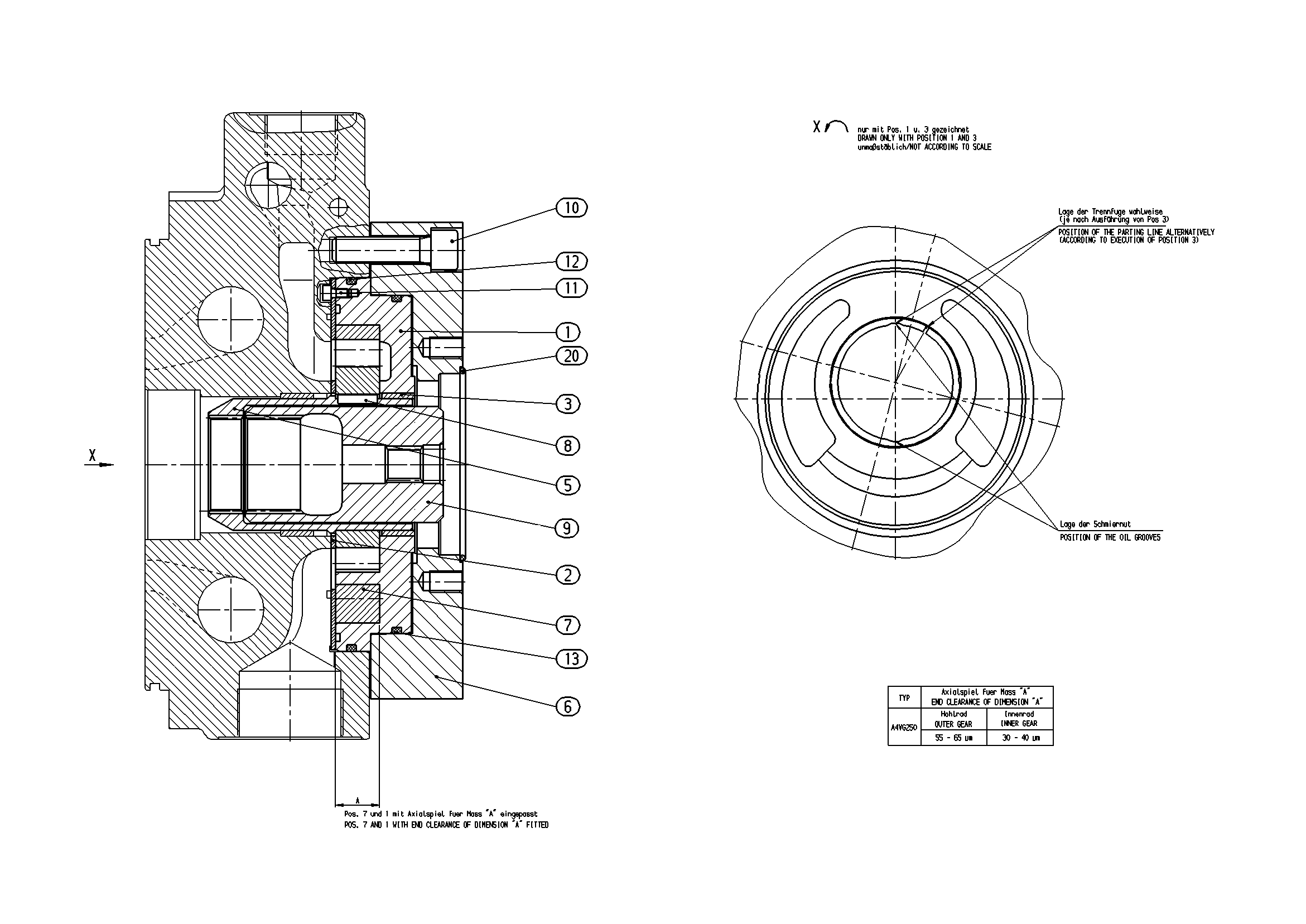

INTERNAL GEAR PUMPR902029568
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902062446 | HOUSING | 1 | ||
| R902004761 | WEAR PLATE | 1 | ||
| R902260556 | BUSHING | 1 | ||
| R902249003 | PLUG-IN SHAFT | 1 | ||
| R902027535 | INTERMEDIATE FLANGE | 1 | ||
| R902029541 | WHEEL SET | 1 | ||
| R902252299 | PARALLEL KEY | 1 | ||
| R902013284 | THROUGH DRIVE COUPLING | 1 | ||
| R909086611 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083001 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083833 | O-RINGD | 1 | ||
| R909087850 | O-RINGD | 1 | ||
| R913044774 | O-RING | 1 | ||
| 98 | R902002415 | SEAL KIT | 1 |
