Baugruppe

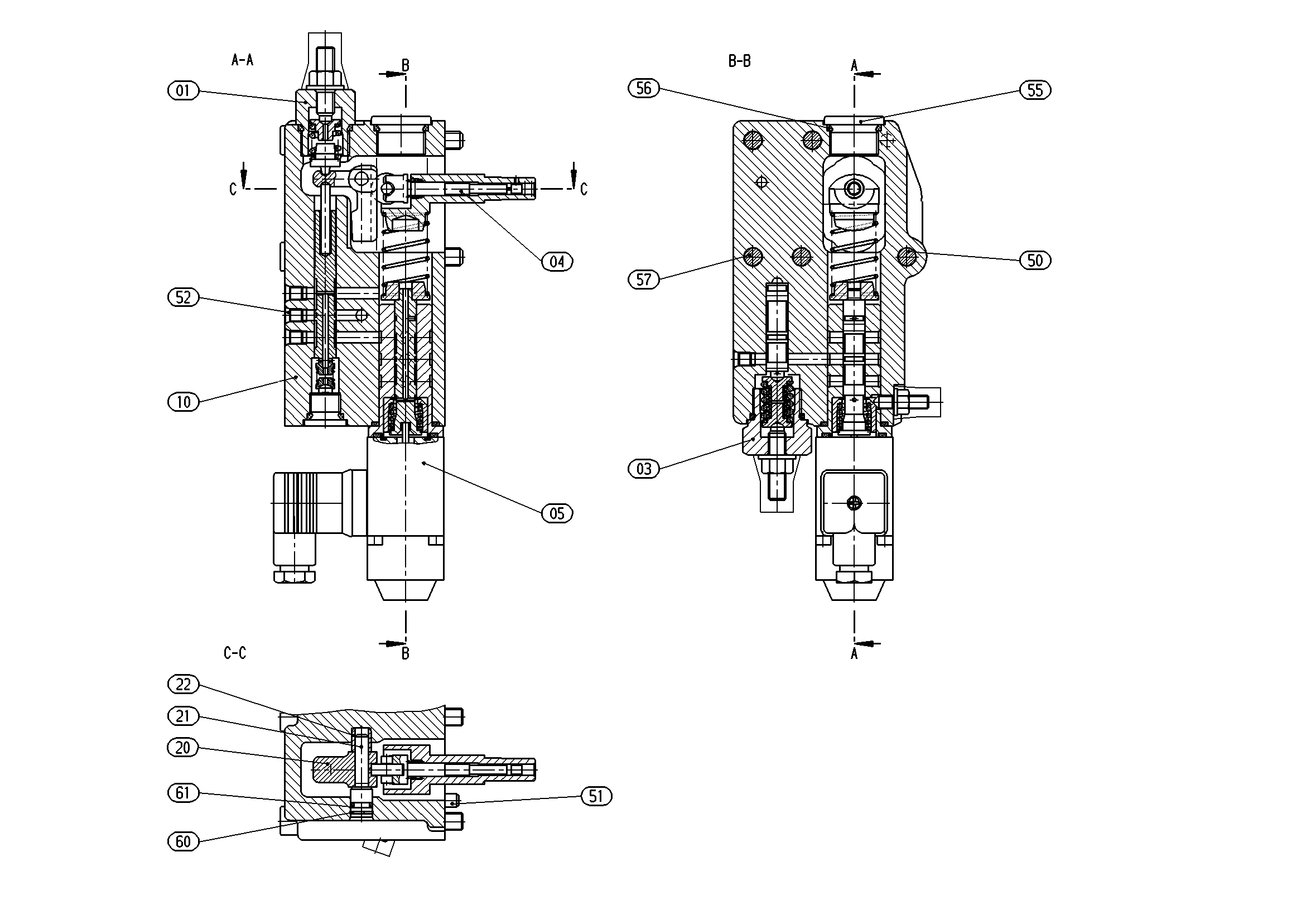

REGULATORR902030044
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909601377 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| 3 | R909442207 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| 4 | R902016479 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | |
| 5 | R902007105 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| R902076590 | CONTROL HOUSING | 1 | ||
| R902122300 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083050 | SOCKET HEAD CAP SCREW | 2 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 3 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RINGD | 1 | ||
| 98 | R902002475 | SEAL KIT | 1 |
