Baugruppe

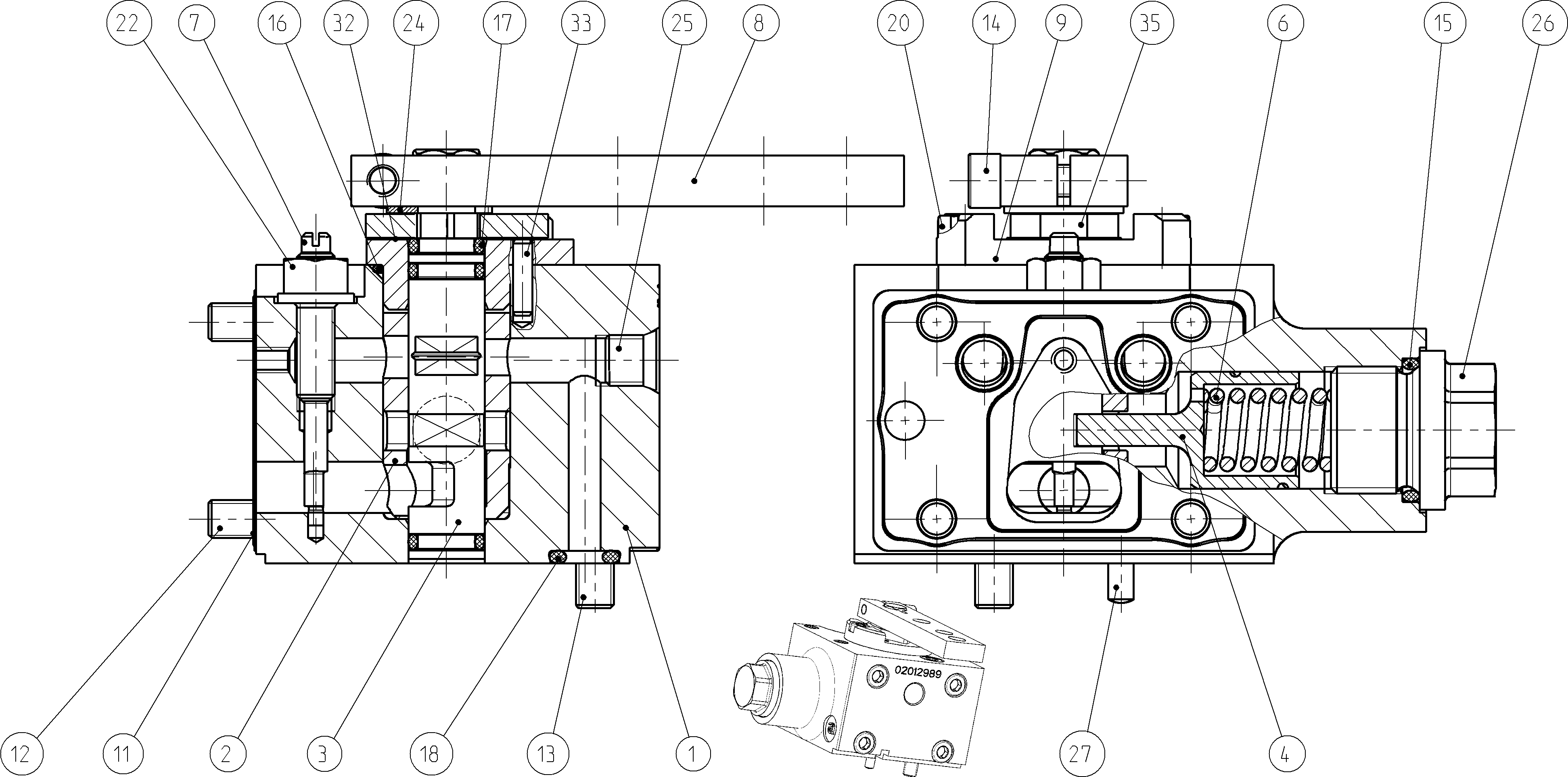

BASIC UNITR902031250
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902012989 | HOUSING | 1 | |
| R902013983 | CONTROL SLEEVE | 1 | ||
| R902032749 | CONTROL SHAFT | 1 | ||
| R909650254 | SPRING BUSH | 1 | ||
| R909421991 | COMPRESSION SPRING | 1 | ||
| R902010473 | ECCENTRIC PIN | 1 | ||
| R909650273 | LEVER | 1 | ||
| 9 | R902025490 | COVER | 1 | |
| 11 | R902603829 | SEALD | 1 | |
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084385 | SOCKET HEAD CAP SCREW | 1 | ||
| 14 | R909083012 | SOCKET HEAD CAP SCREW | 1 | |
| 15 | R909083757 | O-RINGD | 1 | |
| 16 | R909086432 | O-RINGD | 1 | |
| 17 | R909083728 | O-RINGD | 3 | |
| 18 | R909157512 | O-RINGD | 1 | |
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R909152425 | SEALING NUT | 1 | ||
| 24 | R909085131 | LOCKING WASHER | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909086753 | SCREW PLUG | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902600768 | SHIM RING | 1 | ||
| 33 | R909154427 | SLOTTED SPRING PIN | 1 | |
| 35 | R902025491 | STOP PIECE | 1 | |
| 98 | R902002385 | SEAL KIT | 1 |
