Baugruppe

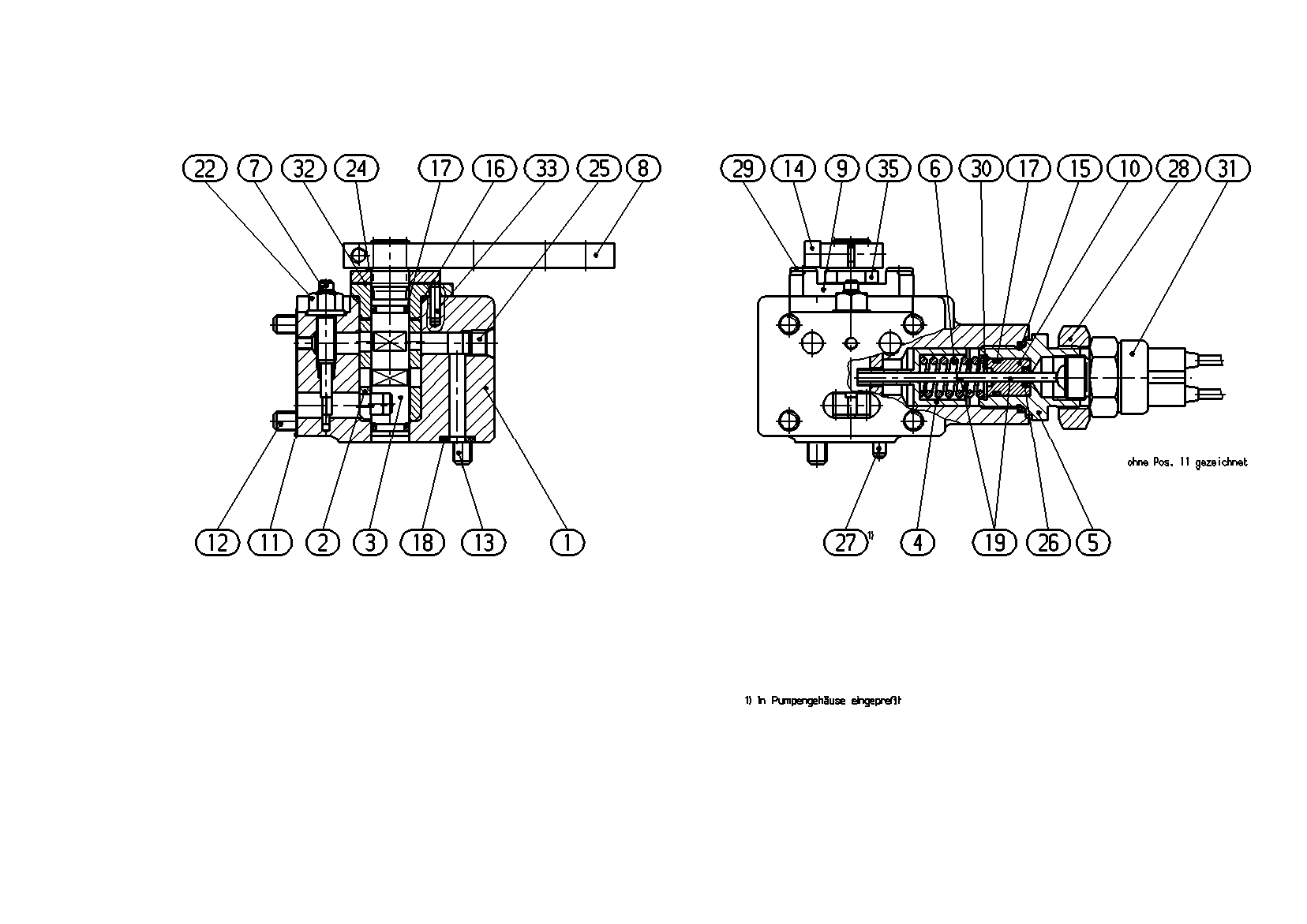

BASIC UNITR902031257
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902012990 | HOUSING | 1 | ||
| R902013983 | CONTROL SLEEVE | 1 | ||
| R902032738 | CONTROL SHAFT | 1 | ||
| R909651844 | SPRING BUSH | 1 | ||
| R909444527 | NECK | 1 | ||
| R909421991 | COMPRESSION SPRING | 1 | ||
| R902010473 | ECCENTRIC PIN | 1 | ||
| R909415411 | LEVER | 1 | ||
| R902025490 | COVER | 1 | ||
| R909444528 | SEAL BUSHING | 1 | ||
| 11 | R902603829 | SEALD | 1 | |
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 13 | R909084385 | SOCKET HEAD CAP SCREW | 1 | |
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909083728 | O-RINGD | 3 | ||
| R909157512 | O-RINGD | 1 | ||
| R909651973 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909083346 | RETAINING RING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909086301 | O-RINGD | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R909830212 | HEXAGON NUT | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083380 | RETAINING RING | 1 | ||
| R909830731 | SWITCH | 1 | ||
| R902600768 | SHIM RING | 1 | ||
| R909154427 | SLOTTED SPRING PIN | 1 | ||
| 35 | R902026485 | STOP DISC | 1 |
