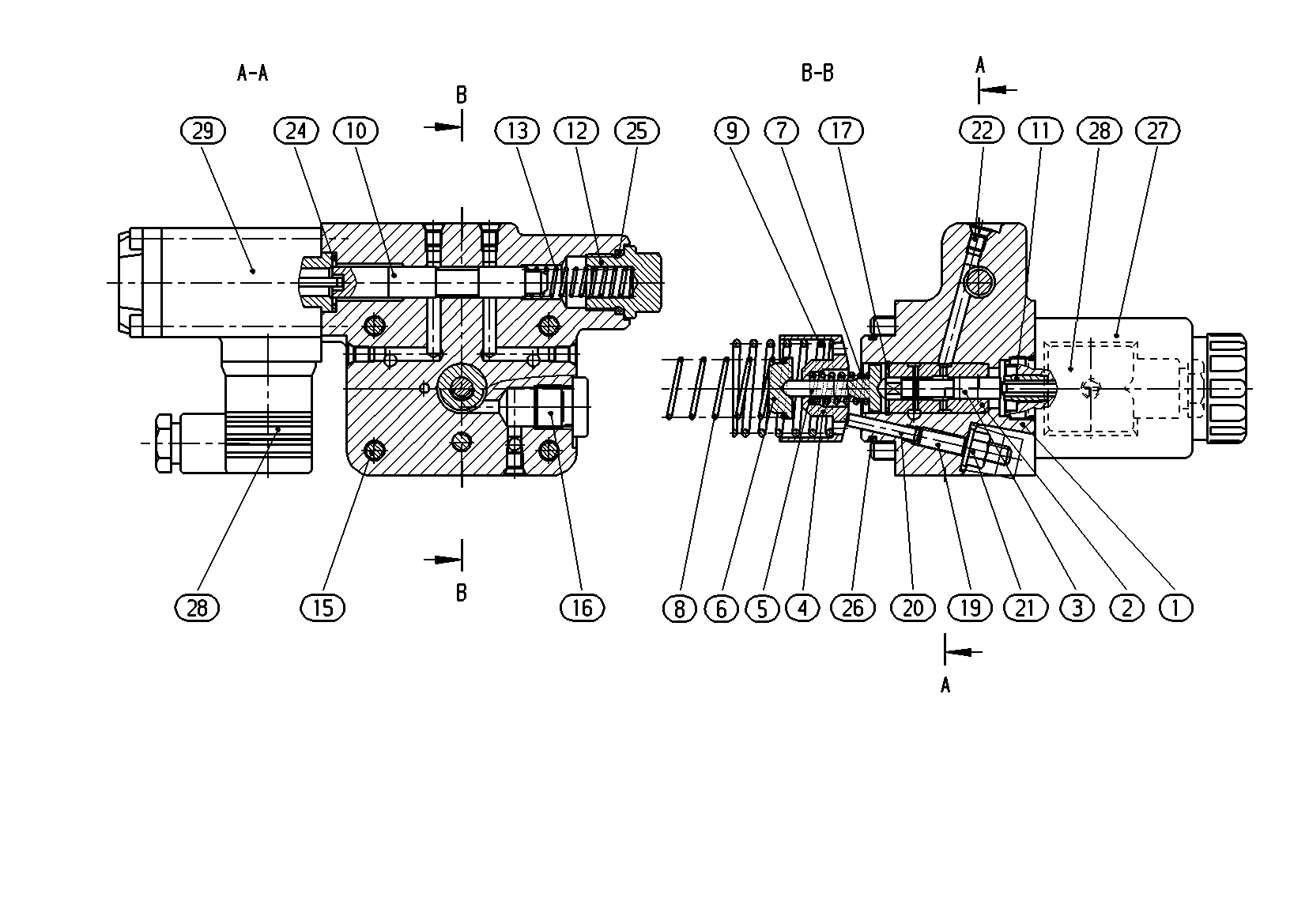

Baugruppe
CONTROL PARTR902033173
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909922234 | CONTROL HOUSING | 1 | |
| R909432662 | CONTROL SLEEVE | 1 | ||
| R909440703 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R909420874 | SPRING DISK | 1 | ||
| 7 | R909921419 | COMPRESSION SPRING | 1 | |
| R902047161 | COMPRESSION SPRING | 1 | ||
| R909921342 | COMPRESSION SPRING | 1 | ||
| R909444393 | SLIDE | 1 | ||
| 11 | R909440702 | STOP SCREW | 1 | |
| R909417111 | SCREW PLUG | 1 | ||
| R909432398 | COMPRESSION SPRING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R902600645 | O-RINGD | 2 | ||
| R909087891 | O-RINGD | 1 | ||
| R909085560 | O-RINGD | 1 | ||
| R909428264 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 2 | ||
| R909428266 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 |
