Baugruppe

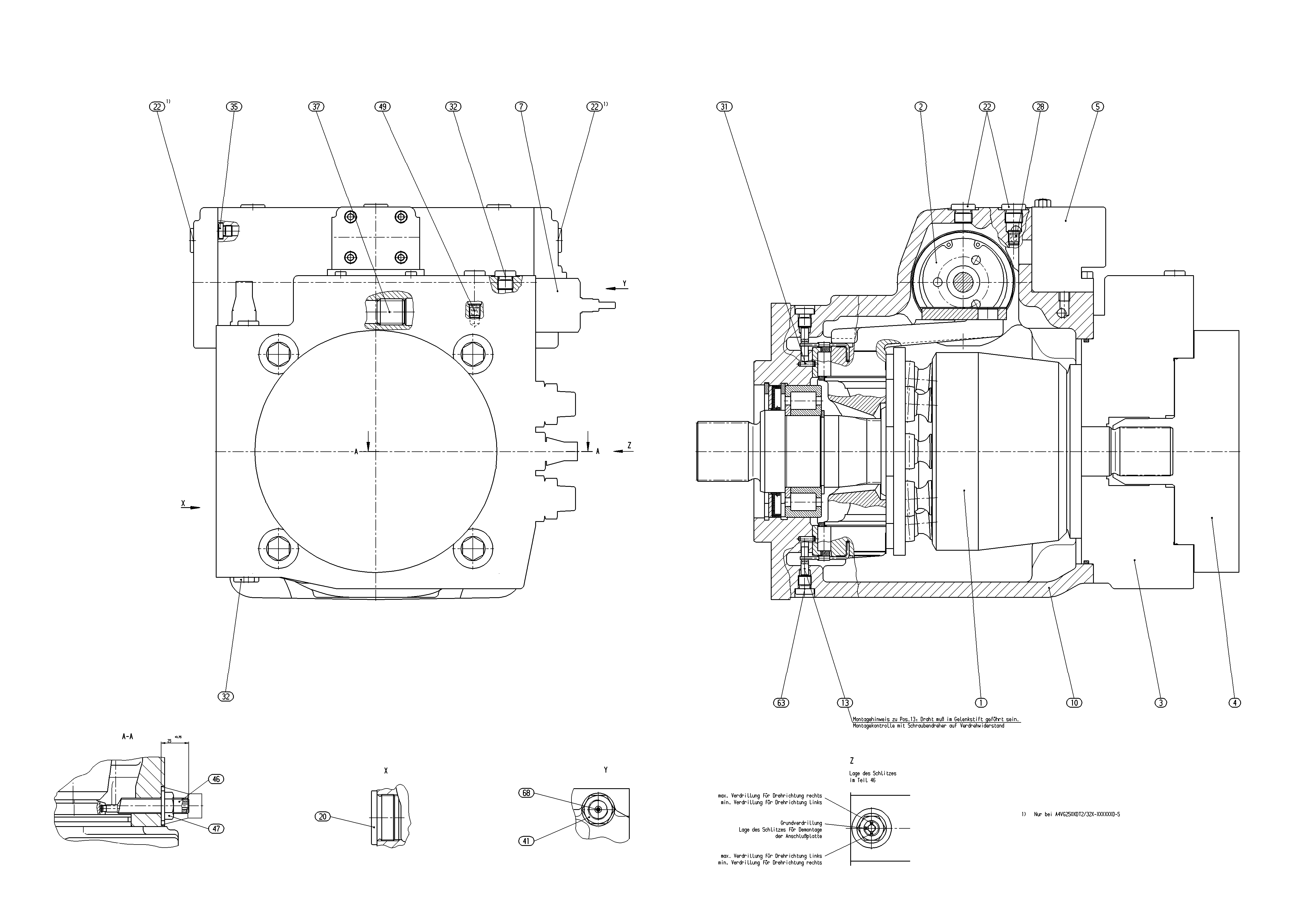

AXIAL-PISTON PUMPR902033862
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902005051 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R902007360 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902029550 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902029567 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902007245 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | ||
| R909446560 | CONTROL CARTRIDGE Stückliste der Baugruppe →L | 1 | ||
| R909652198 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909426708 | NOZZLE | 2 | ||
| 31 | R913016375 | SLOTTED SPRING PIN | 2 | |
| R909151979 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R902600285 | SETSCREW | 1 | ||
| 41 | R909922097 | THREADED REDUCING STUD | 1 | |
| R902005487 | ECCENTRIC SCREW | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R909831349 | PLUG | 1 | ||
| R909151692 | SCREW PLUG | 4 | ||
| R909156497 | NOZZLE | 1 | ||
| 98 | R902095544 | SEAL KIT | 1 |
