Baugruppe

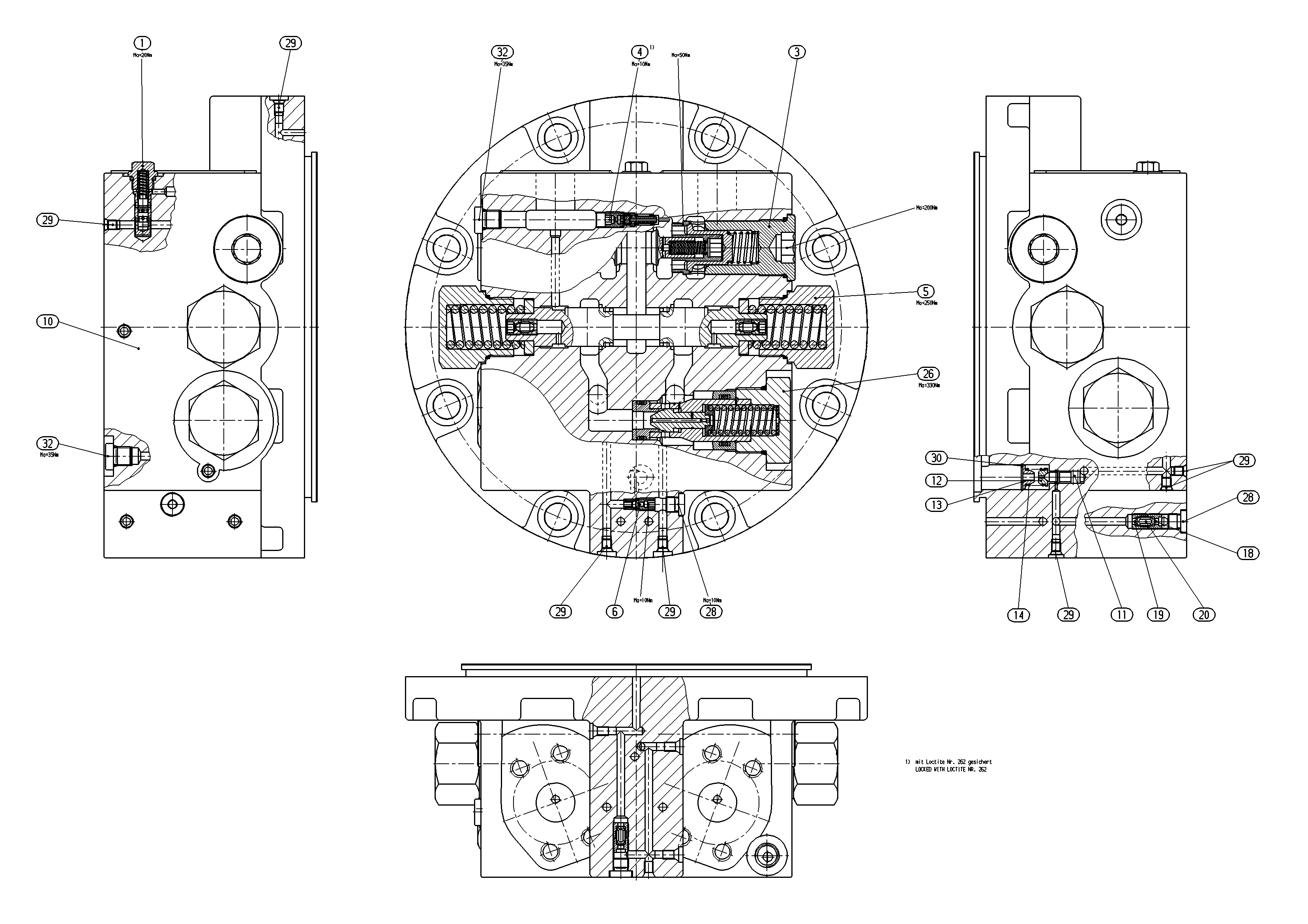

CONNECTION PLATER902035953
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902071240 | BRAKE RELEASE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902038537 | VALVE Stückliste der Baugruppe →L | 2 | ||
| R902010799 | VALVE Stückliste der Baugruppe →L | 1 | ||
| R902038829 | BRAKE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902042017 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902062249 | CONNECTION PLATE | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R909426136 | SPRING DISK | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400262 | THROTTLE PIN | 1 | ||
| R902601346 | PRESSURE RELIEF VALVE | 2 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909831743 | SCREW PLUG | 3 |
