Baugruppe

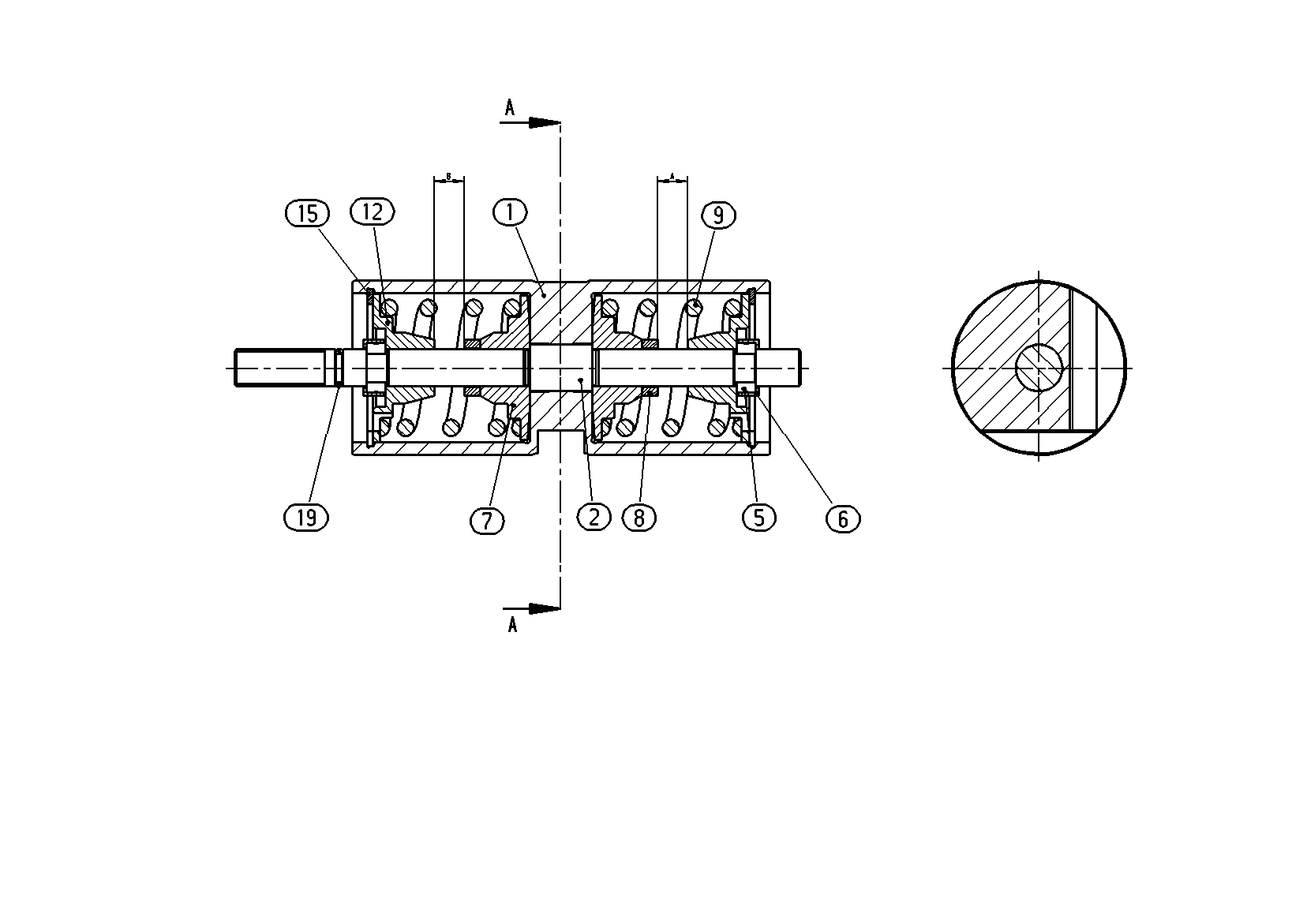

POSITIONING PISTONR902035978
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902016078 | POSITIONING PISTON | 1 | |
| R909449237 | ROD | 1 | ||
| 5 | R902015508 | RING | 2 | |
| 5 | R902013493 | RING | 2 | |
| 5 | R902015509 | RING | 2 | |
| 5 | R902015510 | RING | 2 | |
| 5 | R902015511 | RING | 2 | |
| 5 | R902015512 | RING | 2 | |
| 5 | R902015514 | RING | 2 | |
| 5 | R902015513 | RING | 2 | |
| R902600489 | LOCATING RING | 2 | ||
| R909449243 | SPRING DISK | 2 | ||
| R909435635 | SPACER RING | 2 | ||
| R909435636 | SPACER RING | 2 | ||
| R909445782 | SPACER RING | 2 | ||
| R909445783 | SPACER RING | 2 | ||
| R909445784 | SPACER RING | 2 | ||
| R909445785 | SPACER RING | 2 | ||
| R909436326 | COMPRESSION SPRING | 2 | ||
| R909449244 | SPRING DISK | 2 | ||
| R909084556 | RETAINING RING | 2 | ||
| R909085709 | O-RINGD | 1 |
