Baugruppe

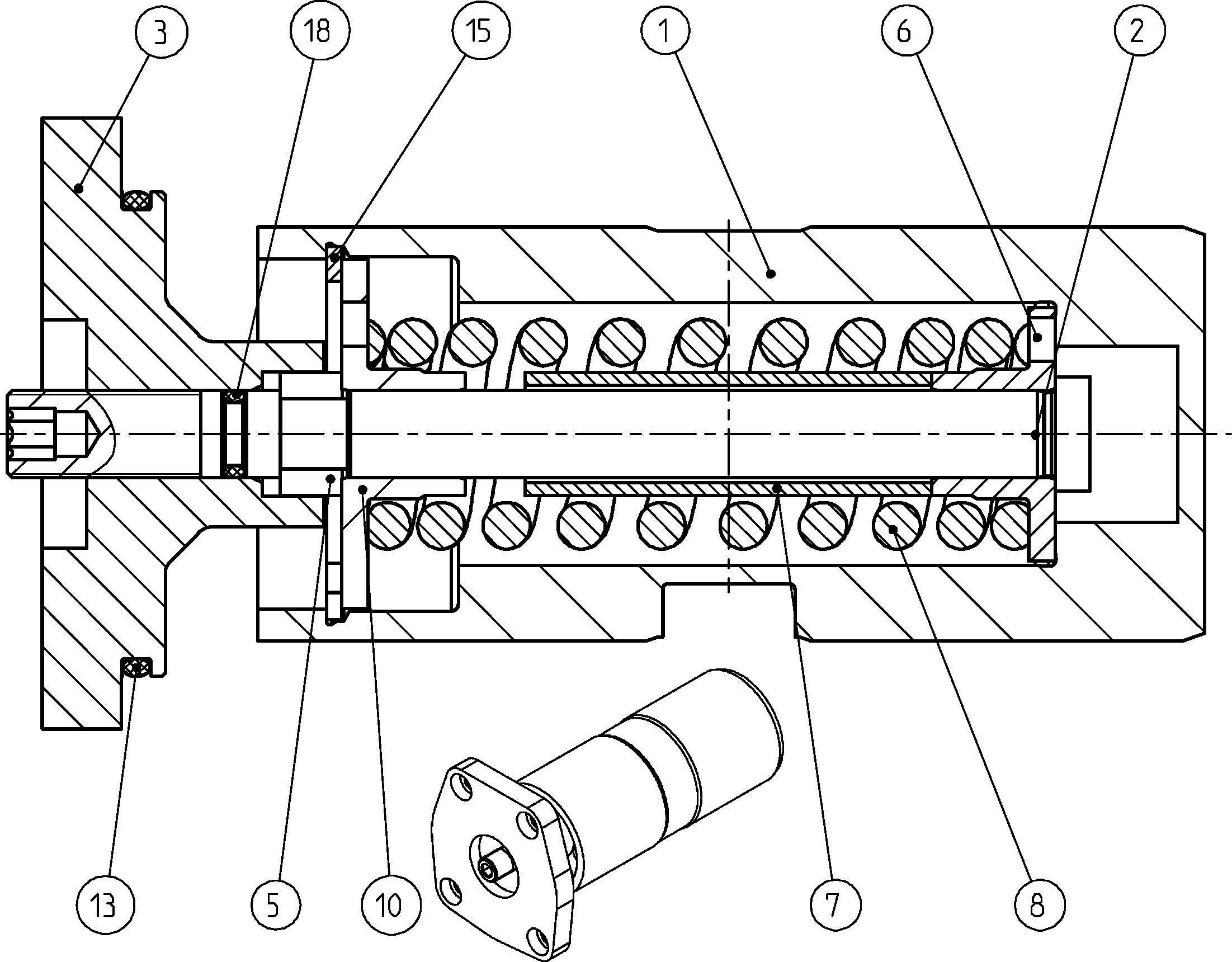

POSITIONING PISTONR902039743
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902017626 | POSITIONING PISTON | 1 | ||
| R909440500 | ROD | 1 | ||
| R902272169 | COVER | 1 | ||
| R909436219 | RING | 1 | ||
| R909436220 | RING | 1 | ||
| R909436221 | RING | 1 | ||
| R909436222 | RING | 1 | ||
| R909436223 | RING | 1 | ||
| R909650222 | RING | 1 | ||
| R909650223 | RING | 1 | ||
| R902035608 | SPRING DISK | 1 | ||
| R902071100 | SPACER BUSHING | 1 | ||
| R902071101 | SPACER BUSHING | 1 | ||
| R909650202 | SPACER BUSHING | 1 | ||
| R902039654 | SPACER BUSHING | 1 | ||
| R902071095 | SPACER BUSHING | 1 | ||
| R902121499 | SPACER BUSHING | 1 | ||
| R909651954 | COMPRESSION SPRING | 1 | ||
| R902035607 | SPRING DISK | 1 | ||
| R909083776 | O-RINGD | 1 | ||
| R909083400 | RETAINING RING | 1 | ||
| R909086380 | O-RINGD | 1 |
