Baugruppe

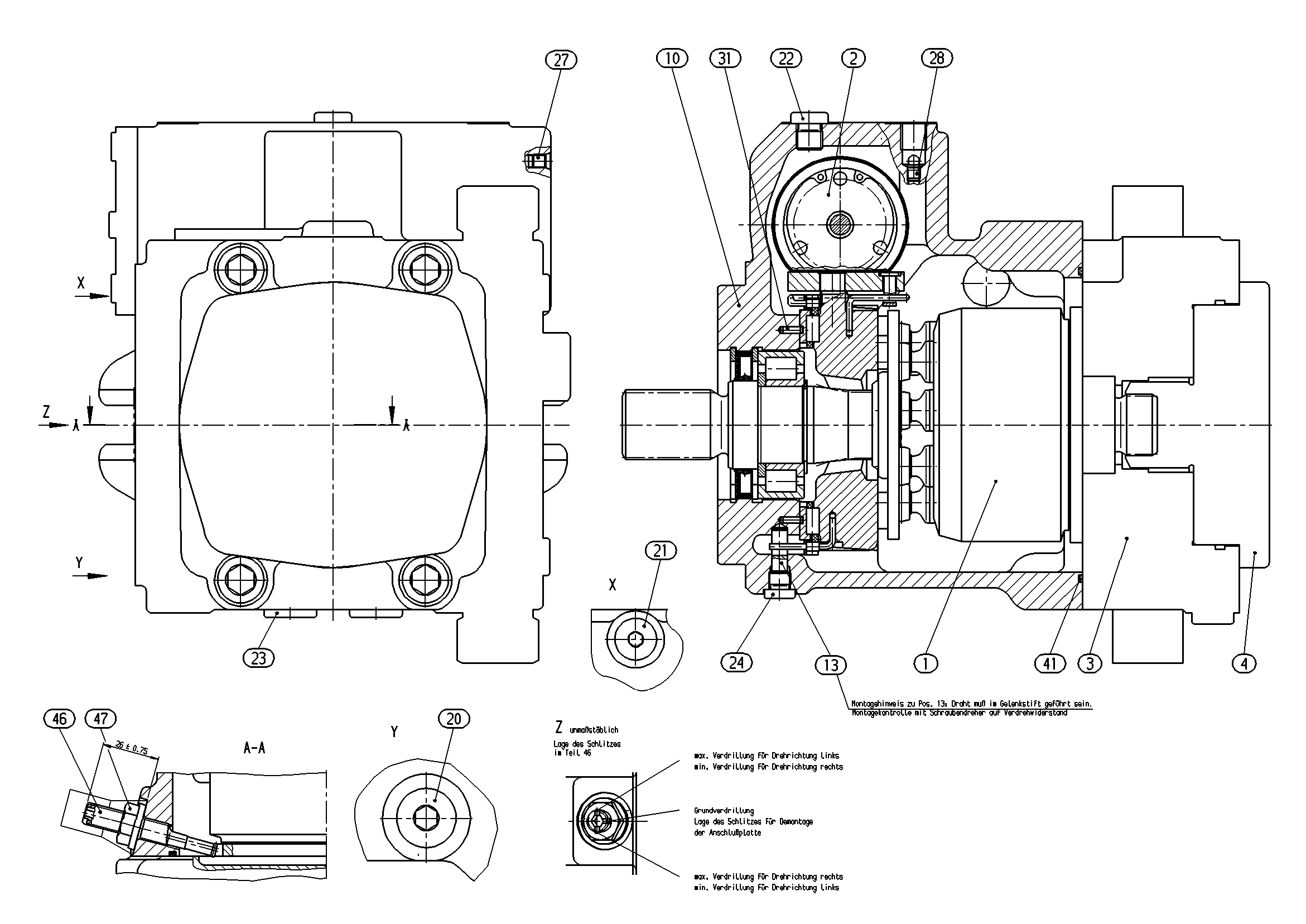

AXIAL-PISTON PUMPR902039887
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902036085 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902136639 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902039943 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902039866 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902029685 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| R910764647 | SCREW PLUGD | 1 | ||
| R910901969 | SCREW PLUGD | 3 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R909156497 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| 98 | R902095623 | SEAL KIT | 1 |
