Baugruppe

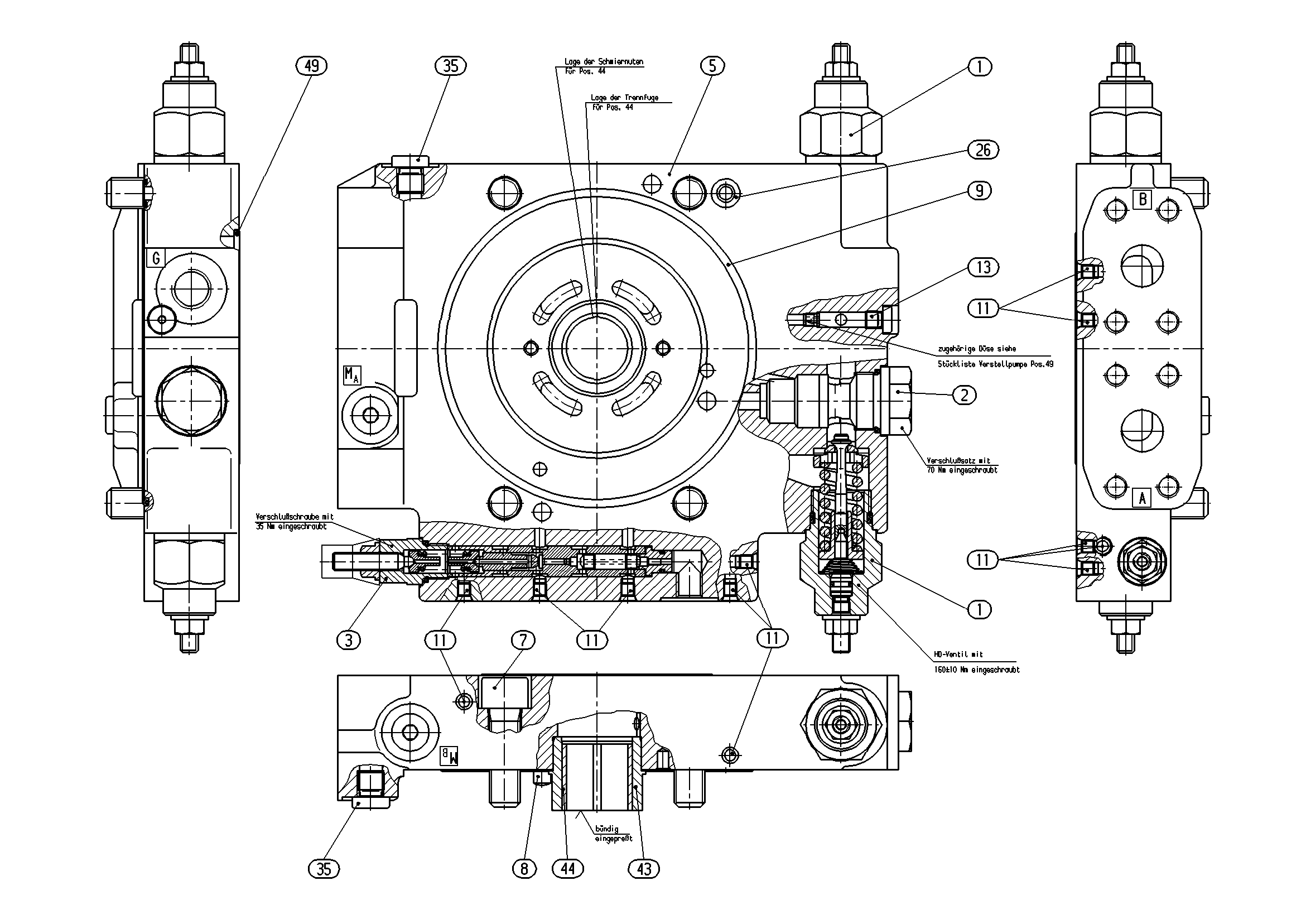

CONNECTION PLATER902039908
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902016388 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R909438962 | LOCKING SET | 1 | ||
| R909446763 | PRESSURE CUT-OFF VALVE Stückliste der Baugruppe →L | 1 | ||
| R902015627 | CONNECTION PLATE | 1 | ||
| R909156851 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084173 | STRAIGHT PIN | 2 | ||
| R909830424 | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R902001050 | BUSHING | 1 | ||
| R902260549 | BUSHING | 1 | ||
| — | O-RINGD | 1 |
