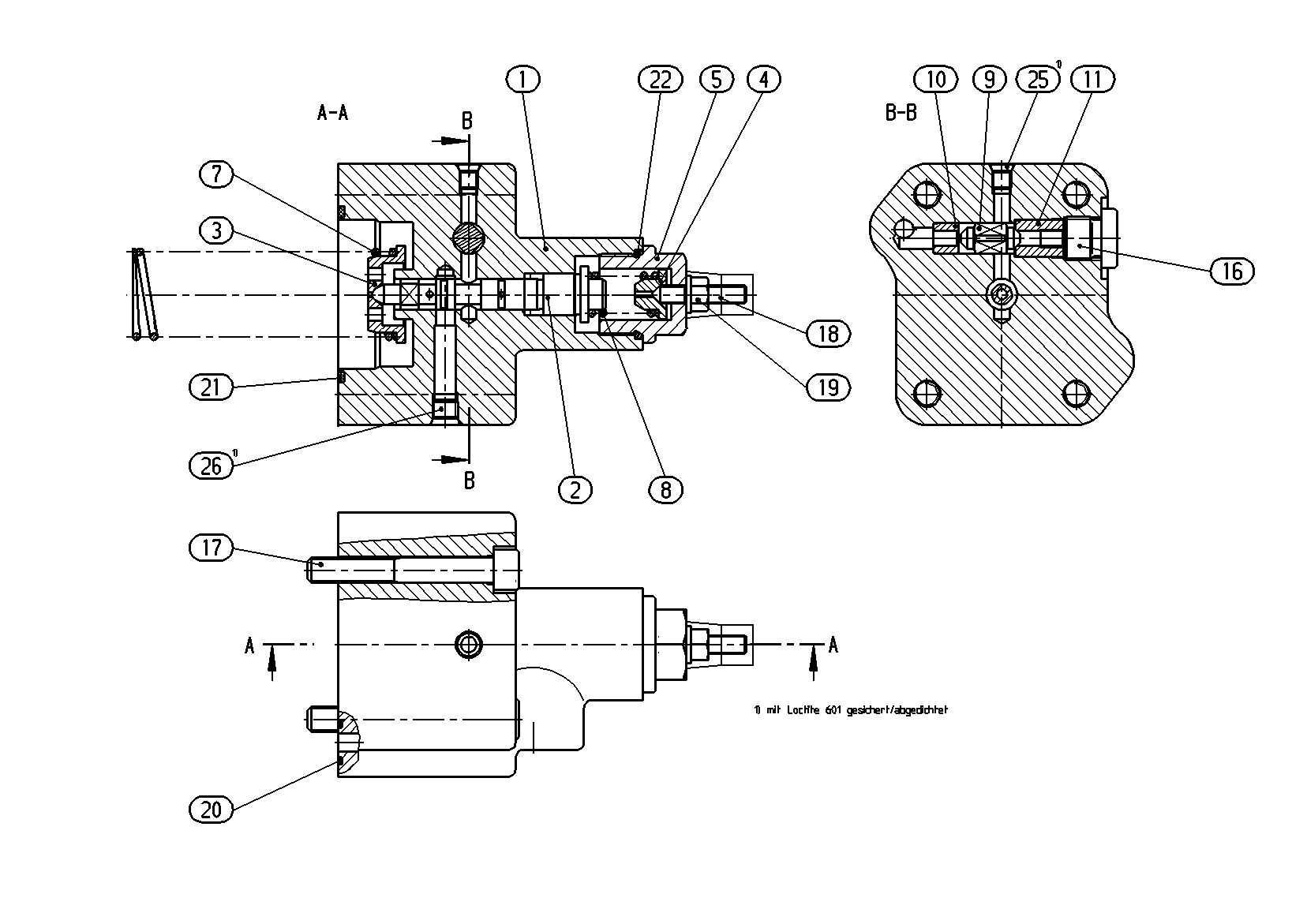

Baugruppe
CONTROL MODULER902040317
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909435051 | HOUSING | 1 | ||
| R902036565 | CONTROL PISTON | 1 | ||
| R909425804 | SPRING DISK | 1 | ||
| R909421369 | SPRING DISK | 1 | ||
| R909426038 | SCREW PLUG | 1 | ||
| R902040316 | COMPRESSION SPRING | 1 | ||
| R909420177 | COMPRESSION SPRING | 1 | ||
| R909436407 | VALVE CONE | 1 | ||
| R909425801 | BUSHING | 1 | ||
| R909425800 | BUSHING | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083047 | SOCKET HEAD CAP SCREW | 4 | ||
| R909420991 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086332 | O-RINGD | 2 | ||
| R902600656 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
