Baugruppe

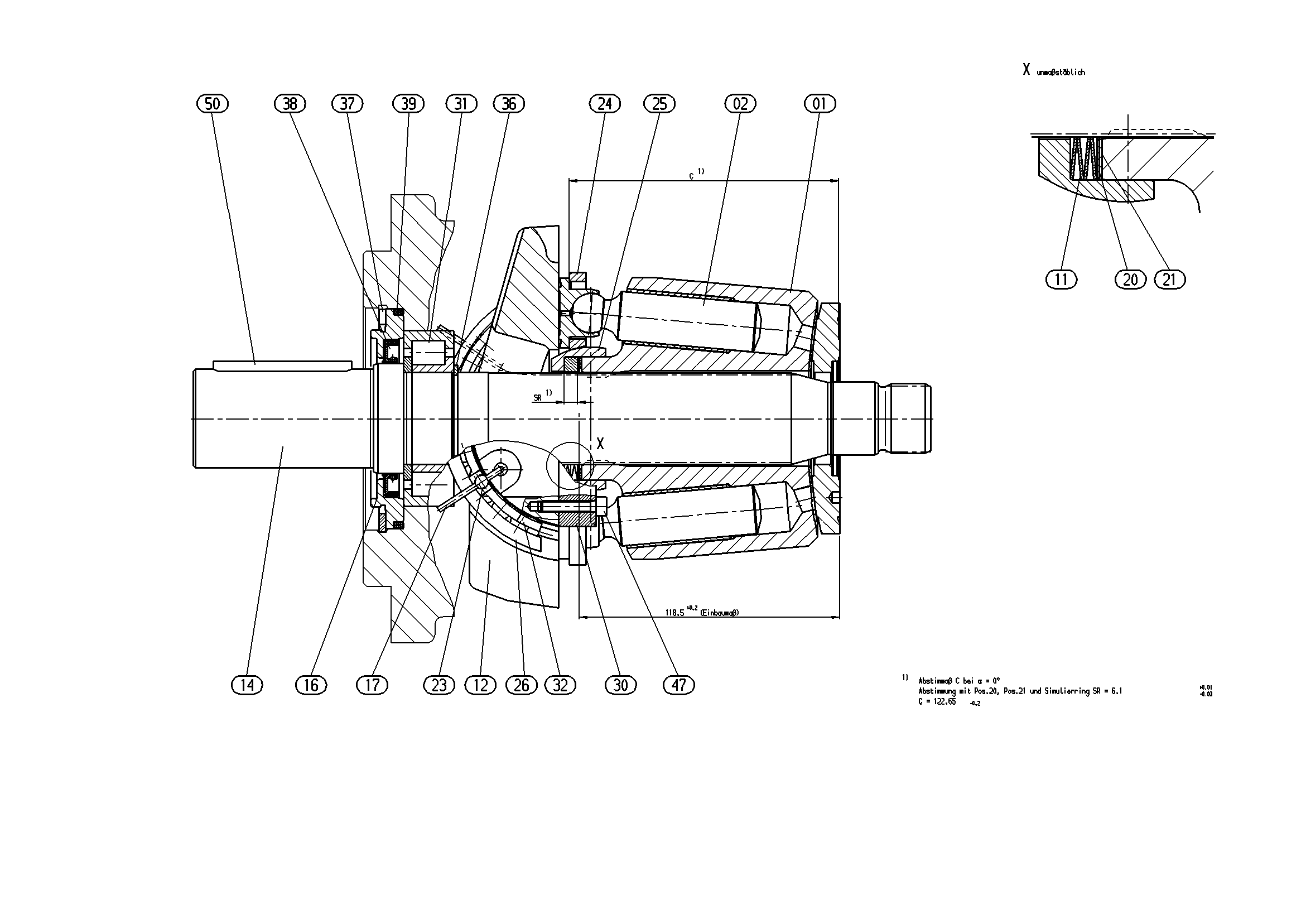

ROTARY GROUPR902041922
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902041911 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909443559 | PISTON PAD | 9 | |
| 11 | R909074127 | CUP-SPRING STACK | 1 | |
| R909443853 | CRADLE | 1 | ||
| R909449778 | DRIVE SHAFT | 1 | ||
| 16 | R909443641 | LOCKING RINGD | 1 | |
| 17 | R909076233 | WIRE | 4 | |
| R909080152 | SHIM RING | 1 | ||
| R909080153 | SHIM RING | 1 | ||
| R909412704 | SHIM RING | 1 | ||
| R909412705 | SHIM RING | 1 | ||
| R909080153 | SHIM RING | 1 | ||
| R902210003 | RETAINING PLATE | 1 | ||
| R902041872 | RETAINING BALL | 1 | ||
| R902066594 | BEARING SHELL PAIR | 1 | ||
| R909436083 | RETAINING SEGMENT | 2 | ||
| R909831206 | CYL. ROLLER BEARING | 1 | ||
| R902603728 | CAGE PAIR | 1 | ||
| R909151259 | RETAINING RING | 1 | ||
| R909083417 | RETAINING RING | 1 | ||
| R909831178 | SHAFT SEALING RINGD | 1 | ||
| R913049007 | O-RINGD | 1 | ||
| R909831329 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831403 | PARALLEL KEY | 1 | ||
| 98 | R902002470 | SEAL KIT | 1 |
