Baugruppe

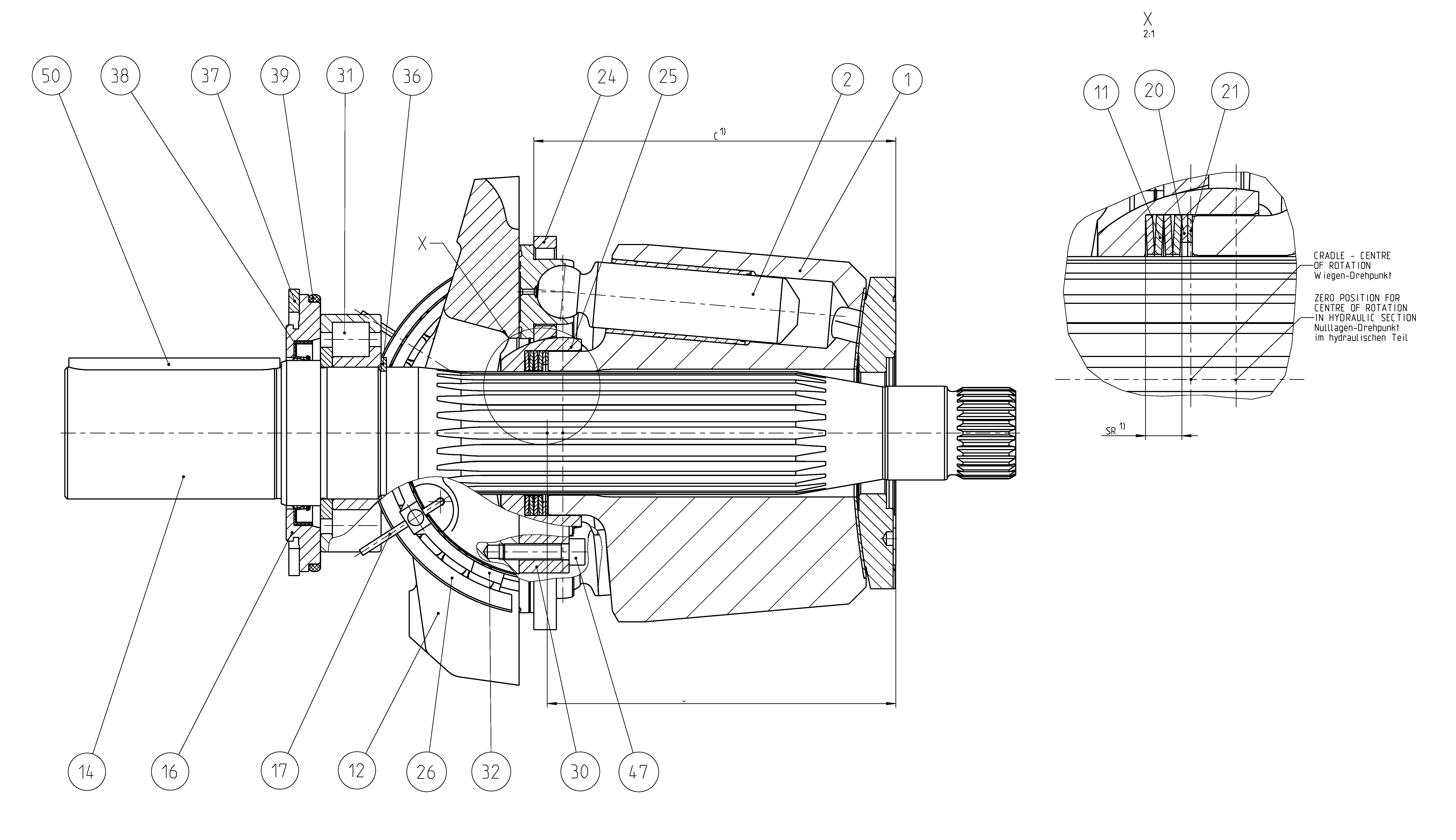

ROTARY GROUPR902041962
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902041935 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| R909078189 | PISTON PAD | 9 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R902230864 | CRADLE | 1 | ||
| R902044904 | DRIVE SHAFT | 1 | ||
| R902034801 | LOCKING RINGD | 1 | ||
| R909417959 | WIRE | 4 | ||
| R909078319 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R909412707 | SHIM RING | 1 | ||
| R909413043 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R902210083 | RETAINING PLATE | 1 | ||
| R902041873 | RETAINING BALL | 1 | ||
| R902066599 | BEARING SHELL PAIR | 1 | ||
| R909431891 | RETAINING SEGMENT | 2 | ||
| R902603914 | CYL. ROLLER BEARING | 1 | ||
| R913010011 | CAGE PAIR | 1 | ||
| R909084416 | RETAINING RING | 1 | ||
| R909154528 | RETAINING RING | 1 | ||
| R913043034 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909086949 | O-RINGD | 1 | ||
| R909831330 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831403 | PARALLEL KEY | 1 |
