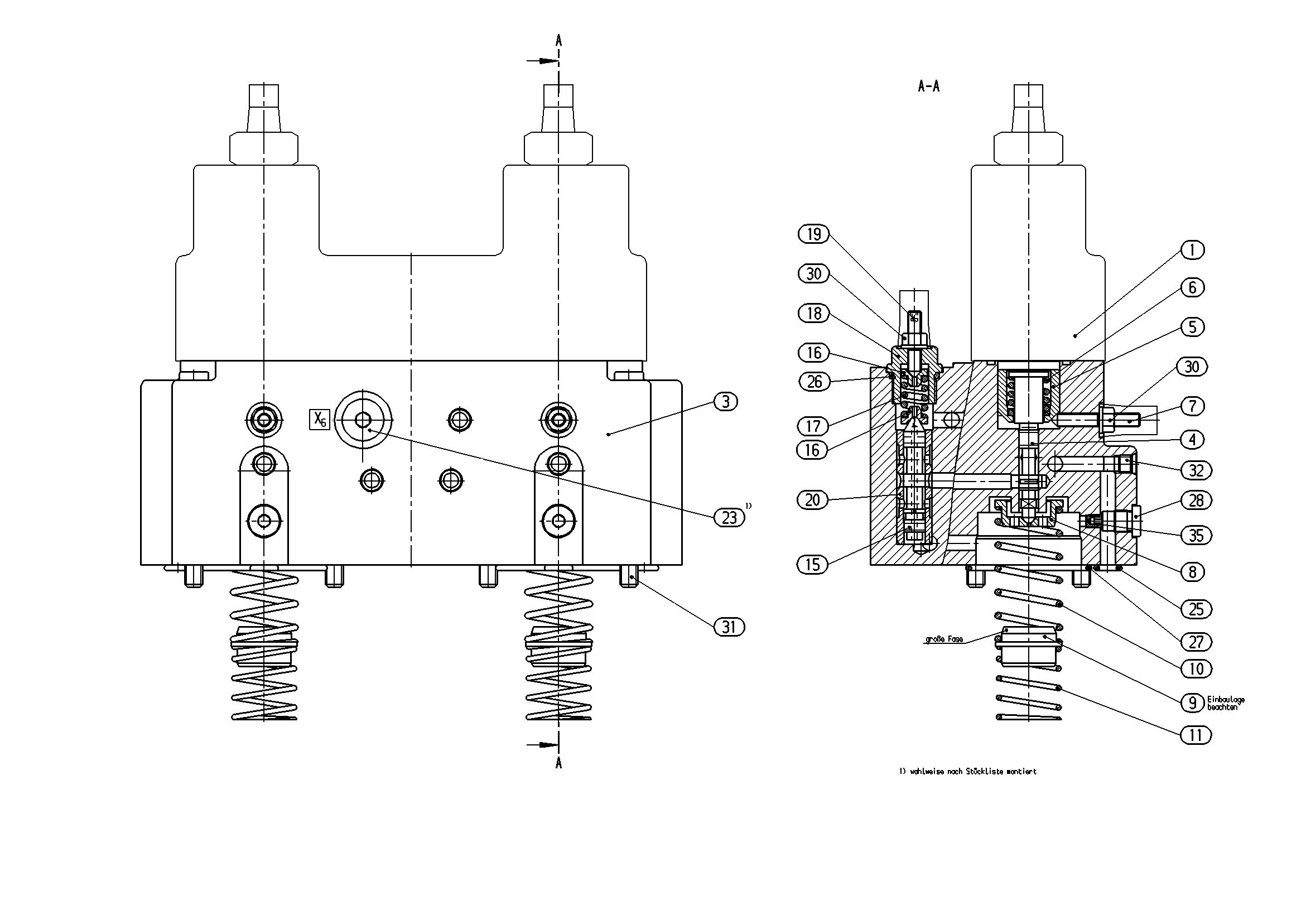

Baugruppe
CONTROL MODULER902042303
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902065647 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | |
| R902031604 | CONTROL HOUSING | 1 | ||
| 4 | R909449343 | CONTROL PISTON | 2 | |
| R909449344 | SPRING BUSH | 2 | ||
| R909651102 | COMPRESSION SPRING | 2 | ||
| R909420992 | SETSCREW | 2 | ||
| R909425804 | SPRING DISK | 2 | ||
| R909436043 | SPRING DISK | 2 | ||
| 10 | R909436659 | COMPRESSION SPRING | 2 | |
| 11 | R909436660 | COMPRESSION SPRING | 2 | |
| R902054368 | CONTROL PISTON | 2 | ||
| R909075975 | SPRING DISK | 4 | ||
| R909432221 | COMPRESSION SPRING | 2 | ||
| 18 | R909651054 | SCREW PLUG | 2 | |
| 19 | R909420991 | SETSCREW | 2 | |
| R902006823 | CONTROL SLEEVE | 2 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R902600655 | O-RINGD | 4 | ||
| R909083757 | O-RING | 2 | ||
| R902600656 | O-RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909152425 | SEALING NUTD | 4 | ||
| R909083052 | SOCKET HEAD CAP SCREW | 6 | ||
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 13 | |
| 35 | R909156492 | NOZZLE | 2 |
