Baugruppe

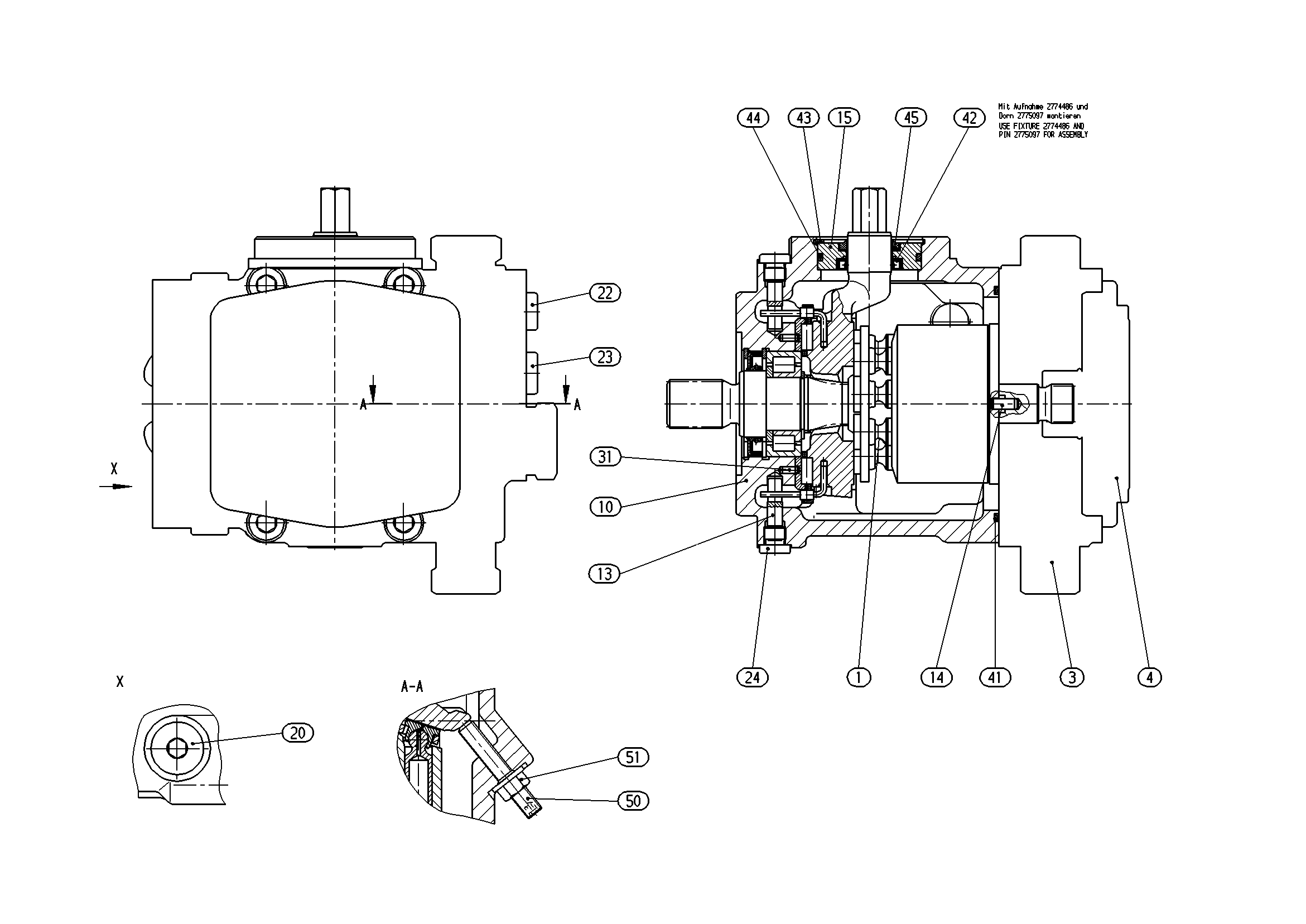

AXIAL-PISTON PUMPR902043495
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902108169 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902035579 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902005332 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902269432 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R913009664 | STRAIGHT PIN | 1 | ||
| R902049974 | SEAL RING | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909154589 | O-RINGD | 1 | ||
| R909830918 | SHAFT SEALING RINGD | 1 | ||
| R909084556 | RETAINING RING | 1 | ||
| R909831490 | O-RINGD | 1 | ||
| R902600973 | WIPERD | 1 | ||
| R902043471 | SETSCREW | 2 | ||
| R909152707 | SEALING NUTD | 2 | ||
| 98 | R902095566 | SEAL KIT | 1 |
