Baugruppe

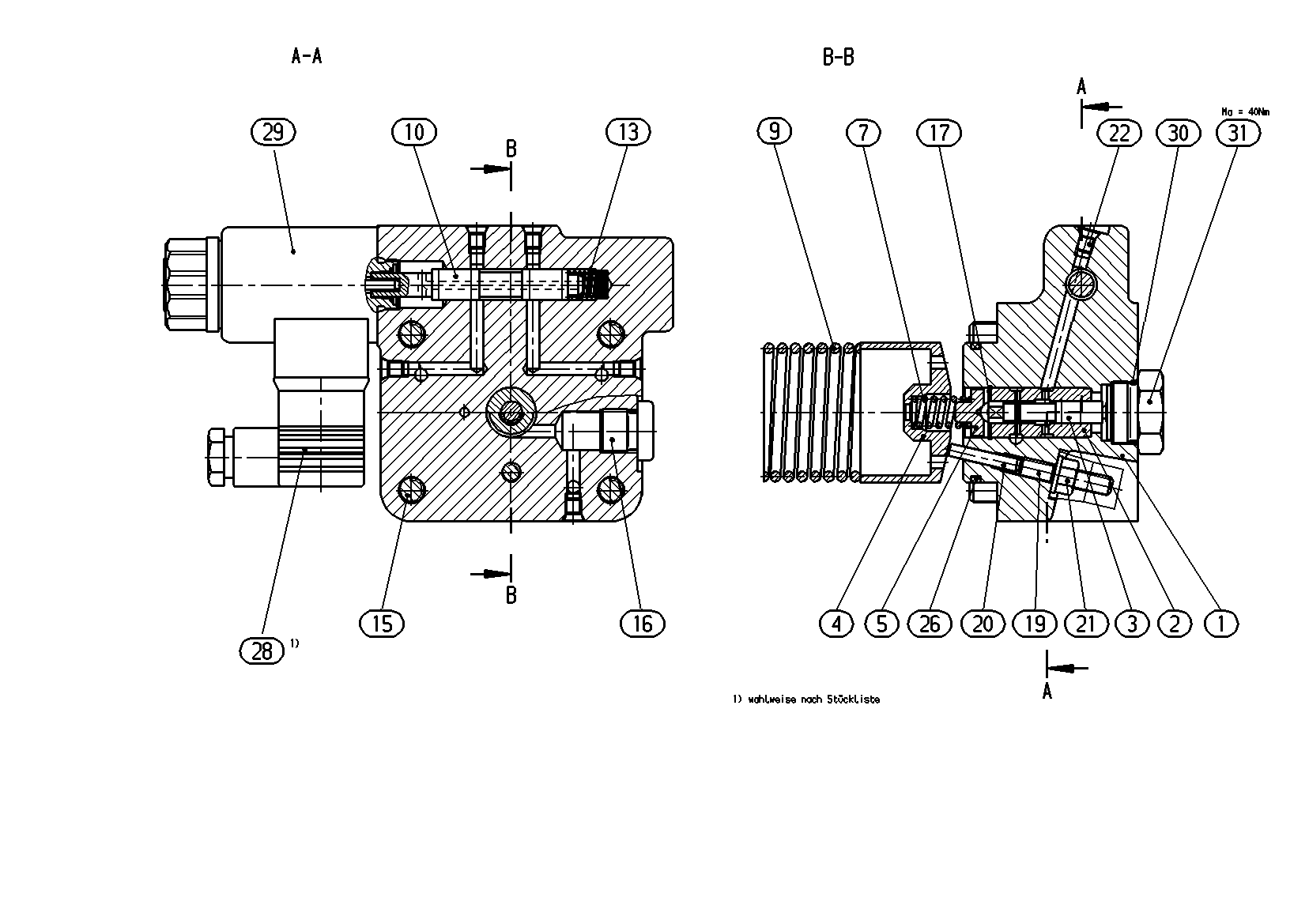

CONTROL PARTR902045208
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902238165 | CONTROL HOUSING | 1 | |
| R909432662 | CONTROL SLEEVE | 1 | ||
| R902006956 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| 5 | R909921339 | SPRING DISK | 1 | |
| 7 | R909921419 | COMPRESSION SPRING | 1 | |
| R909921342 | COMPRESSION SPRING | 1 | ||
| R902045129 | CONTROL PISTON | 1 | ||
| R902045064 | COMPRESSION SPRING | 1 | ||
| R909831514 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| 20 | R909087756 | STRAIGHT PIN | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909085560 | O-RINGD | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R902602670 | SWITCHING SOLENOID | 1 | ||
| R909154317 | O-RING | 1 | ||
| 31 | R902031761 | SCREW PLUG | 1 |
