Baugruppe

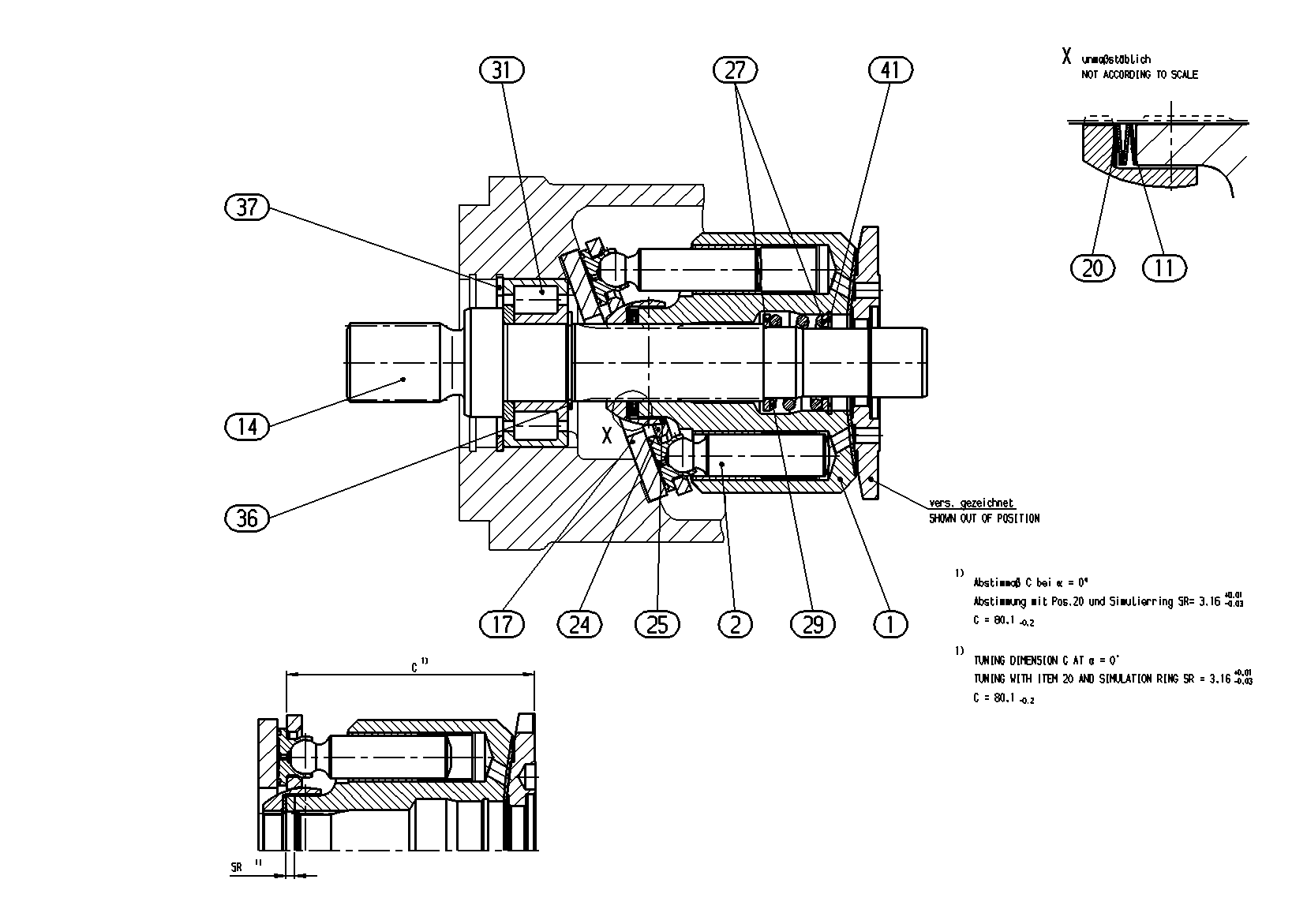

ROTARY GROUPR902046568
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902046569 | CYLINDER Stückliste der Baugruppe →L | 1 | |
| R909431514 | PISTON PAD | 9 | ||
| 11 | R902121243 | CUP-SPRING STACK | 1 | |
| R902033519 | DRIVE SHAFT | 1 | ||
| R902161587 | SLIDING DISC | 1 | ||
| R909432999 | SHIM RING | 1 | ||
| R902205399 | RETAINING PLATE | 1 | ||
| R909431343 | RETAINING BALL | 1 | ||
| R909922004 | WASHER | 2 | ||
| R909921997 | COMPRESSION SPRING | 1 | ||
| R909156605 | CYL. ROLLER BEARING | 1 | ||
| R909083355 | RETAINING RING | 1 | ||
| R902600141 | RETAINING RING | 1 | ||
| 41 | R909083393 | RETAINING RING | 1 |
