Baugruppe

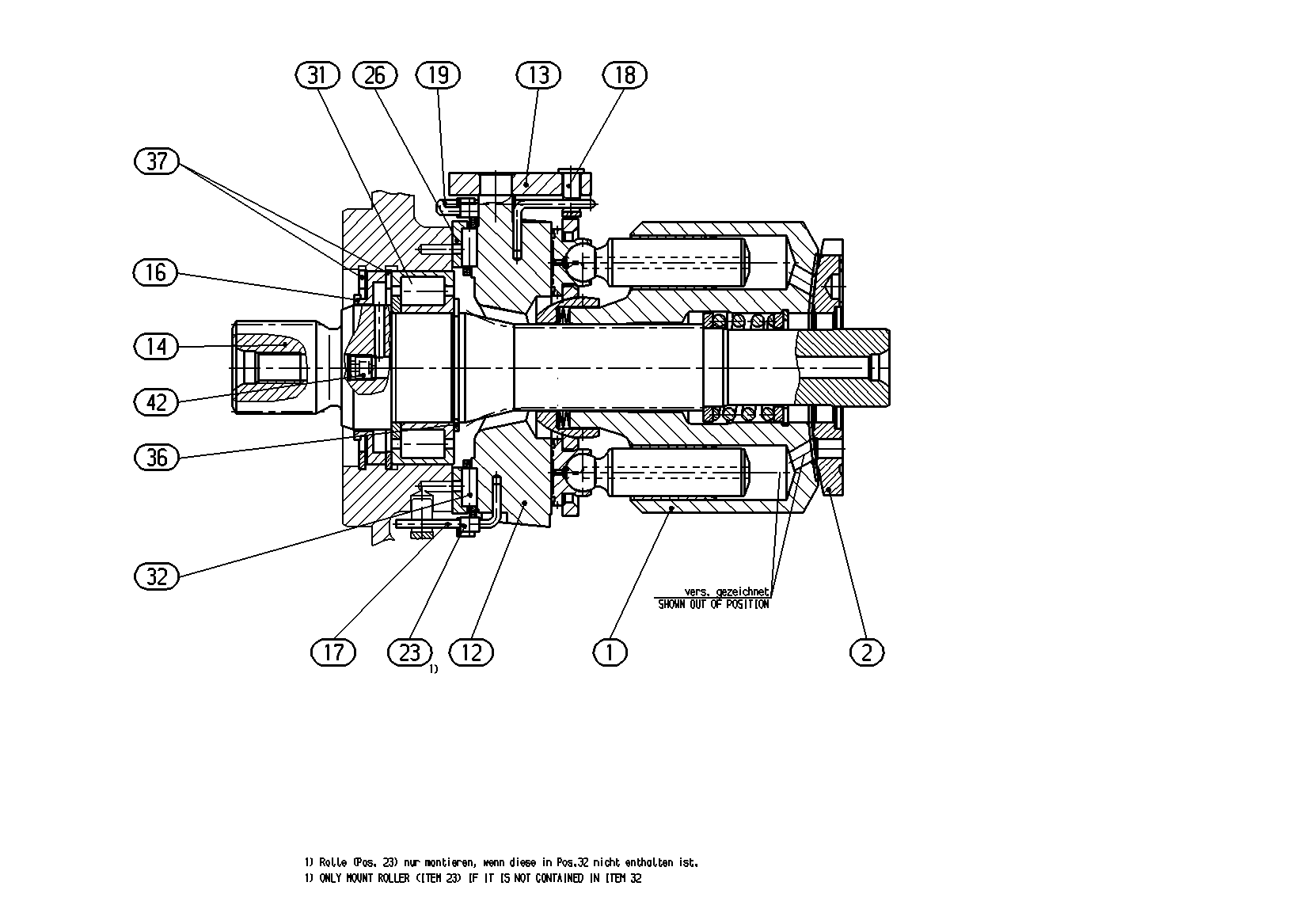

ROTARY GROUPR902047610
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902079294 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| 12 | R909435775 | CRADLE | 1 | |
| R909444490 | SLIDER | 1 | ||
| R902047609 | DRIVE SHAFT | 1 | ||
| R902001247 | LOCKING RING | 1 | ||
| R909408786 | WIRE | 1 | ||
| R909443447 | PIVOT PIN | 1 | ||
| R902136754 | WIRE | 1 | ||
| R902066234 | BEARING SHELL PAIR | 1 | ||
| R909153685 | CYL. ROLLER BEARING | 1 | ||
| R902603726 | CAGE PAIR | 1 | ||
| R909083360 | RETAINING RING | 1 | ||
| R909083408 | RETAINING RING | 2 | ||
| R909435873 | NOZZLE | 1 |
