Baugruppe

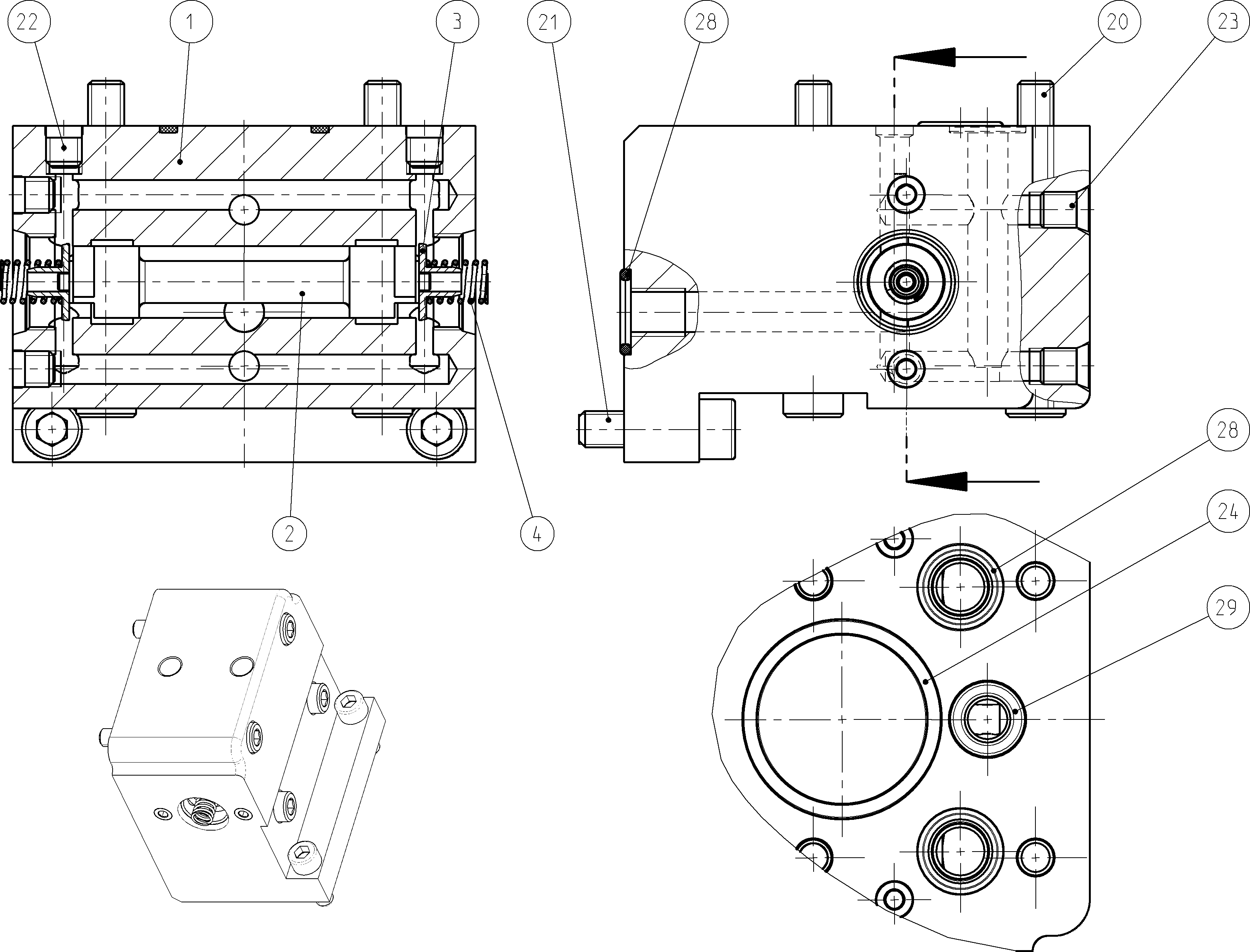

VALVE HOUSINGR902048180
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902139472 | VALVE HOUSING | 1 | |
| R902034730 | CONTROL PISTON | 1 | ||
| R902236432 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| 22 | R902600705 | PLUG | 4 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086332 | O-RINGD | 3 | ||
| R909085709 | O-RINGD | 1 |
