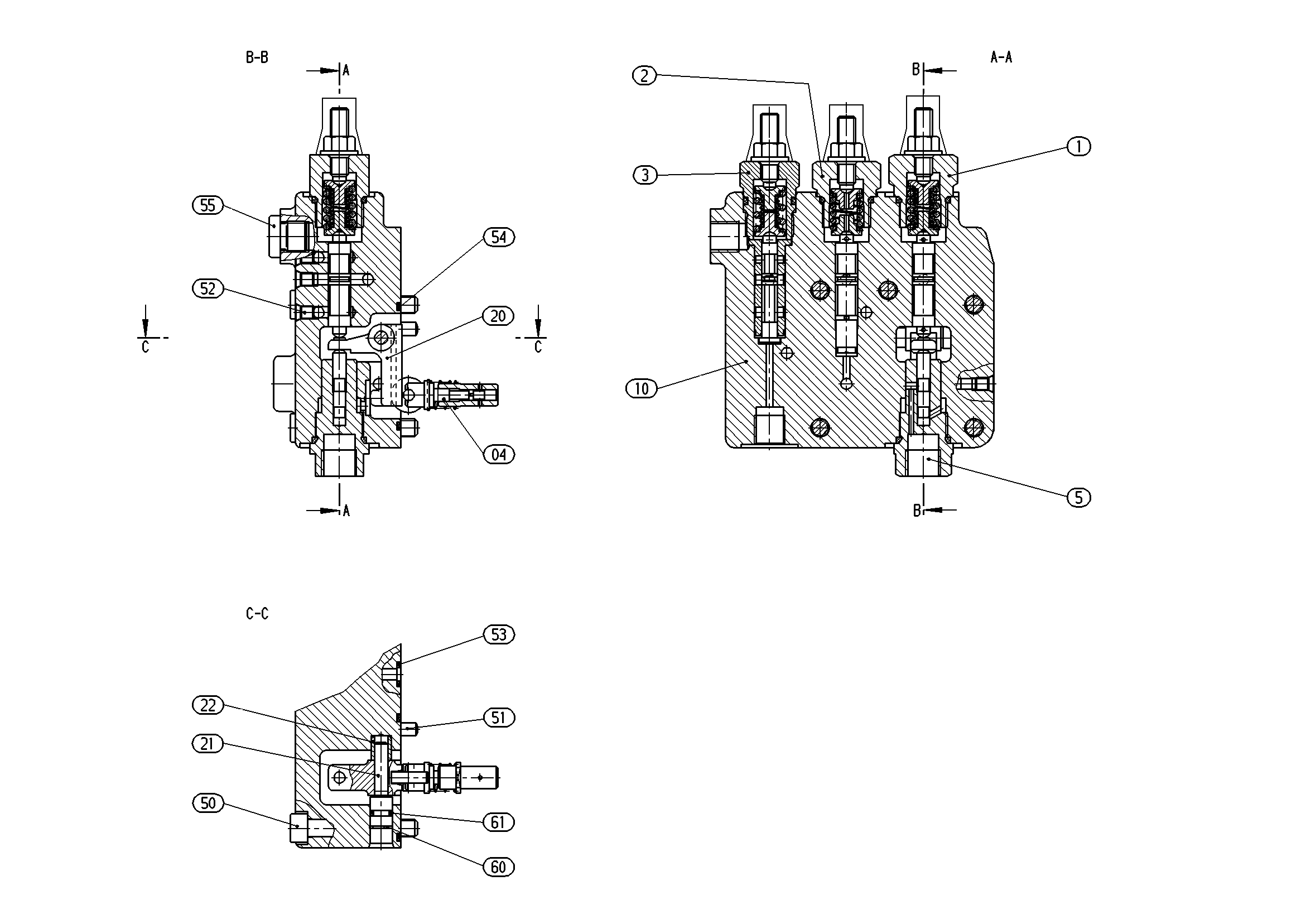

Baugruppe
REGULATORR902048686
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909442320 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902081425 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902007798 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909447093 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| R902027782 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902083587 | CONTROL HOUSING | 1 | ||
| R909445893 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 9 | ||
| R902602890 | R-RING | 3 | ||
| R902600656 | O-RING | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R909083724 | O-RING | 1 | ||
| 98 | R902002478 | SEAL KIT | 1 |
