Baugruppe

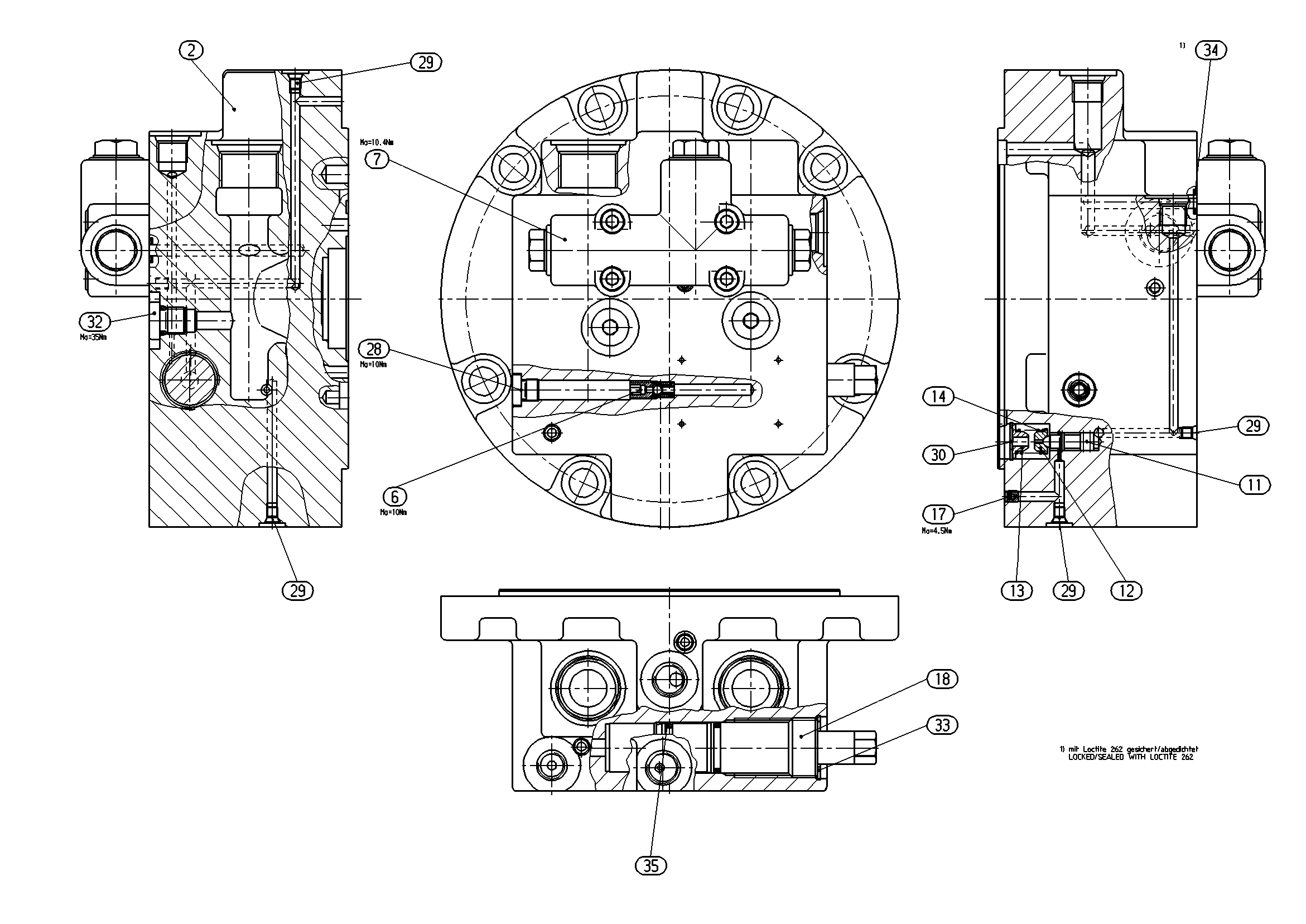

CONNECTION PLATER902049982
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902042017 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902062027 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 | ||
| 10 | R902062476 | CONNECTION PLATE | 1 | |
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R909426136 | SPRING DISK | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R902020331 | NOZZLE | 1 | ||
| R902062190 | VALVE SCREW | 1 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909831743 | SCREW PLUG | 2 | ||
| R909083390 | RETAINING RING | 1 | ||
| R902602593 | R-RING | 3 | ||
| R909083757 | O-RING | 2 |
