Baugruppe

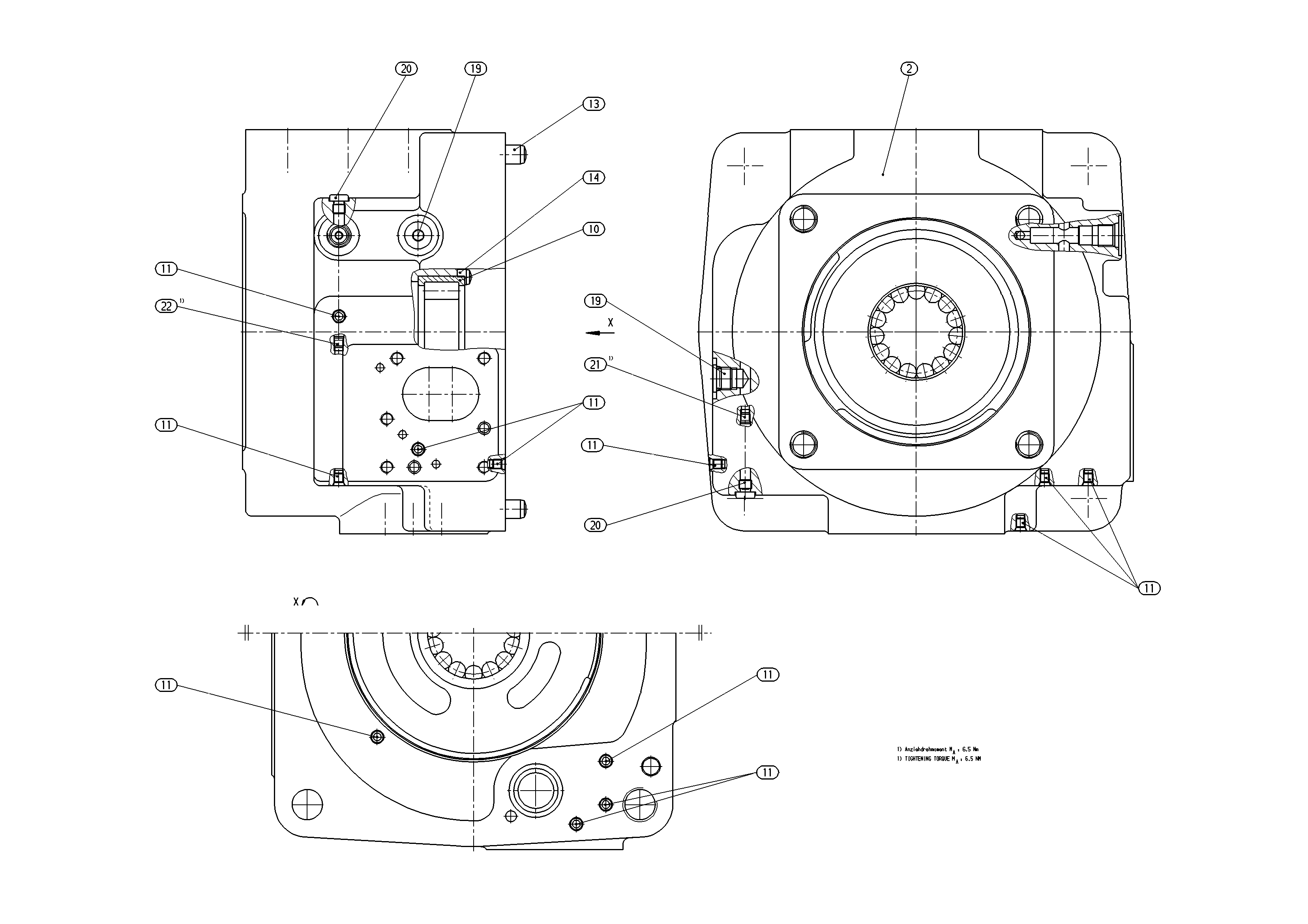

CONNECTION PLATER902050031
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902024478 | VALVE BUSHING | 1 | ||
| R902037326 | CONNECTION PLATE, LL | 1 | ||
| 6 | R902039403 | REDUCING FLANGE | 1 | |
| R909156665 | CYL. ROLLER BEARING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R913009673 | STRAIGHT PIN | 2 | ||
| R909830241 | STRAIGHT PIN | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156495 | NOZZLE | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| 24 | R909083127 | SOCKET HEAD CAP SCREW | 4 | |
| 25 | R909083828 | O-RING | 1 |
