Baugruppe

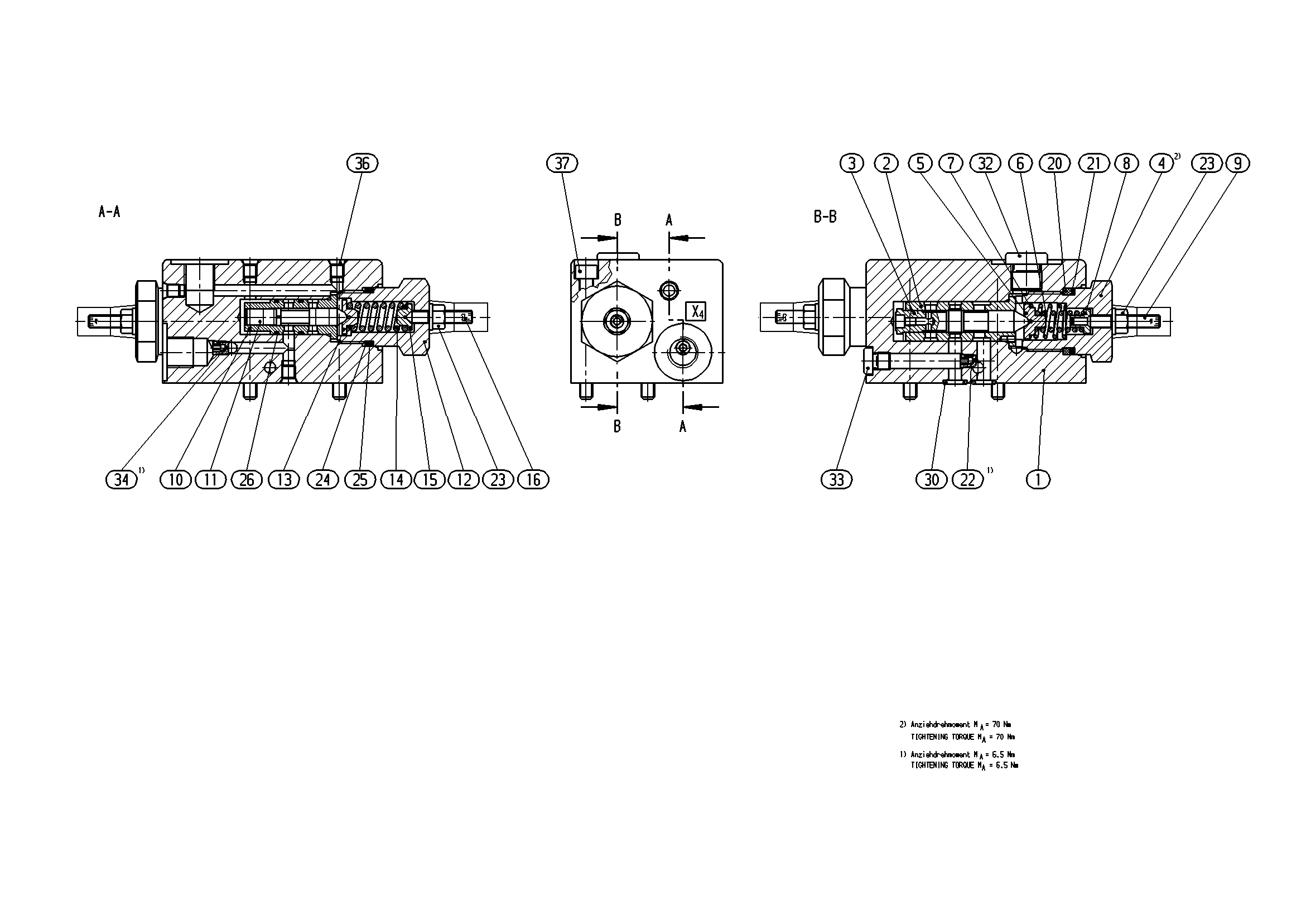

SEQUENCE VALVER902050888
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902050870 | HOUSING | 1 | ||
| R909431037 | CONTROL SLEEVE | 1 | ||
| R909424353 | CONTROL PISTON | 1 | ||
| R909432852 | SCREW PLUG | 1 | ||
| R909418698 | SPRING DISK | 1 | ||
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R909422325 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909444628 | CONTROL SLEEVE | 1 | ||
| R909444627 | CONTROL PISTON | 1 | ||
| R909439578 | SCREW PLUG | 1 | ||
| R909421397 | SPRING DISK | 1 | ||
| R909426284 | COMPRESSION SPRING | 1 | ||
| R909421396 | SPRING DISK | 1 | ||
| R909420991 | SETSCREW | 1 | ||
| R909083797 | O-RINGD | 1 | ||
| R909087626 | BACKUP RINGD | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909086517 | O-RING | 2 | ||
| R909830510 | BACKUP RINGD | 1 | ||
| R909830917 | R-RING | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909083029 | SOCKET HEAD CAP SCREW | 4 |
