Baugruppe

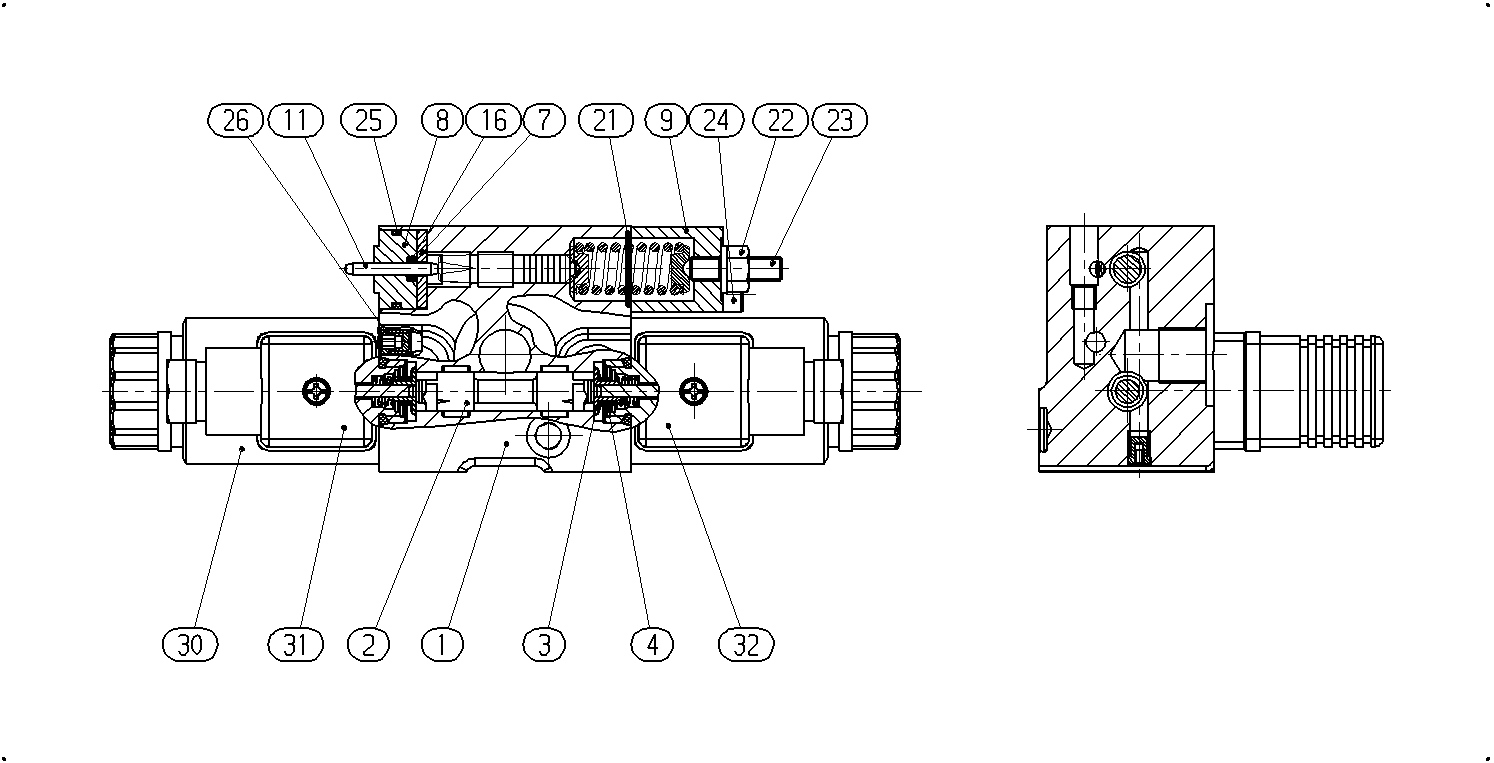

DIRECTIONAL-CONTROL VALVER902052957
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902052892 | VALVE HOUSING | 1 | ||
| R902044859 | CONTROL PISTON | 1 | ||
| R902040694 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909404505 | WASHER | 1 | ||
| R902128652 | SEAL BUSHING | 1 | ||
| R902029273 | COVER | 1 | ||
| R909922151 | STRAIGHT PIN | 1 | ||
| R909086301 | O-RINGD | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909153284 | SETSCREW | 1 | ||
| R909083014 | SOCKET HEAD CAP SCREW | 2 | ||
| R909084939 | O-RINGD | 1 | ||
| R902600705 | PLUG | 4 | ||
| R902602670 | SWITCHING SOLENOID | 2 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 |
