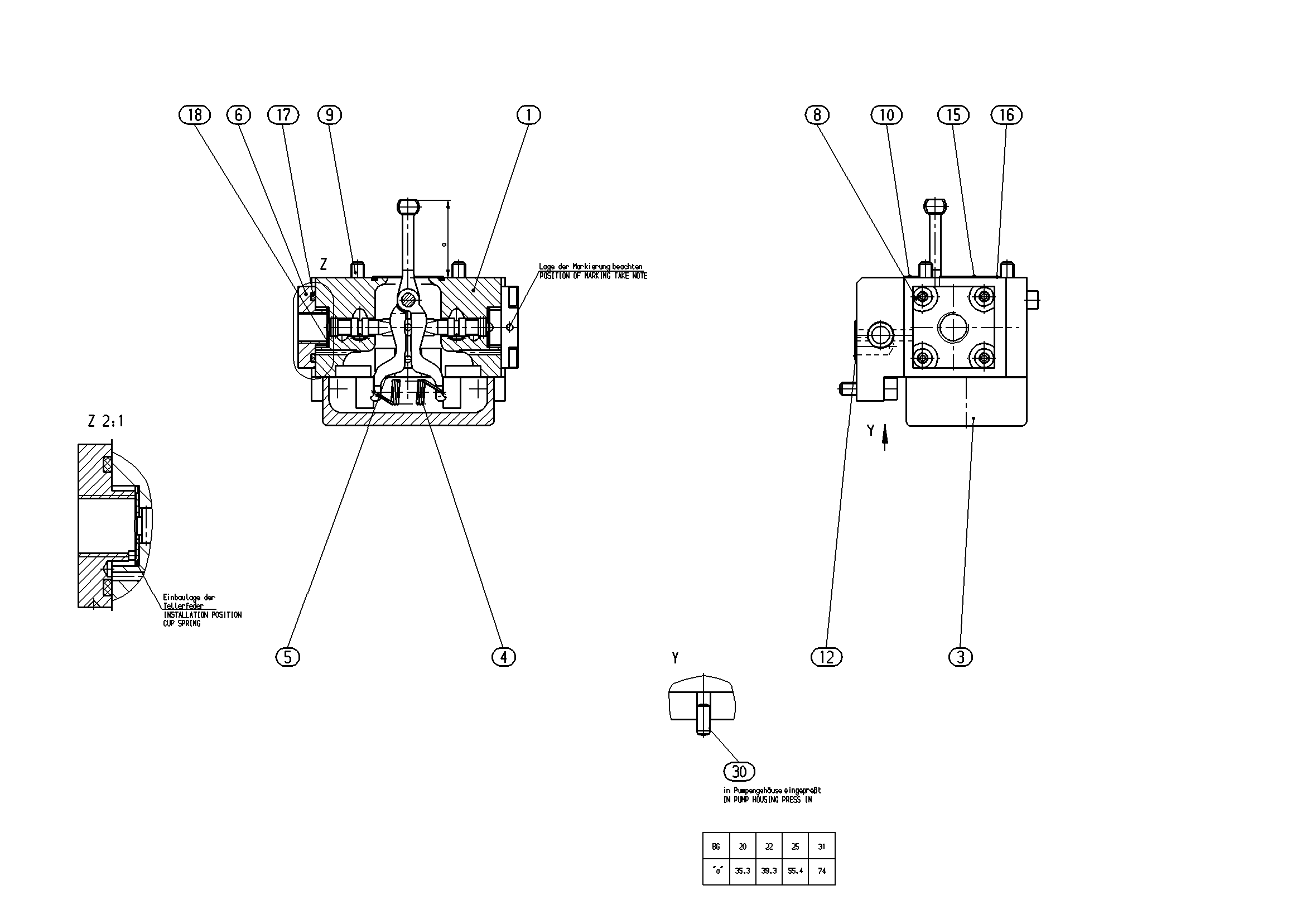

Baugruppe
CONTROL MODULER902059002
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902058796 | BASIC UNIT Stückliste der Baugruppe →L | 1 | |
| R909443201 | COVER | 1 | ||
| R909439019 | EXTENSION SPRING | 1 | ||
| R909651478 | SEALD | 1 | ||
| R902046037 | LOCATION PIECE | 2 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| 9 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| R902600641 | O-RINGD | 1 | ||
| R909086178 | O-RINGD | 3 | ||
| R909086333 | O-RING | 2 | ||
| R909086380 | O-RINGD | 1 | ||
| R909083764 | O-RING | 2 | ||
| R902601640 | DISC SPRING | 2 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| 98 | R902002418 | SEAL KIT | 1 |
